HOBUT Micro 19 Series Current Transformer 520 A
- RS庫存編號:
- 775-2714
- 製造零件編號:
- CTSCMICRO19-200/5-T-S
- 製造商:
- HOBUT
可享批量折扣
小計（1 件）*
HK$489.50
訂單超過 HK$250.00 免費送貨
有庫存
- 22 件準備從其他地點送貨
- 加上 20 件從 2026年4月23日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$489.50 |
| 5 - 9 | HK$470.00 |
| 10 + | HK$450.30 |
* 參考價格
- RS庫存編號:
- 775-2714
- 製造零件編號:
- CTSCMICRO19-200/5-T-S
- 製造商:
- HOBUT
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | HOBUT | |
| Product Type | Current Transformer | |
| Series | Micro 19 | |
| Secondary Current | 5 A | |
| Minimum Operating Temperature | 30°C | |
| Primary Current | 520A | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | BS EN 60044-1/IEC 60044-1 | |
| Length | 78mm | |
| Width | 19 mm | |
| 選取全部 | ||
|---|---|---|
品牌 HOBUT | ||
Product Type Current Transformer | ||
Series Micro 19 | ||
Secondary Current 5 A | ||
Minimum Operating Temperature 30°C | ||
Primary Current 520A | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals BS EN 60044-1/IEC 60044-1 | ||
Length 78mm | ||
Width 19 mm | ||
- COO (Country of Origin):
- GB

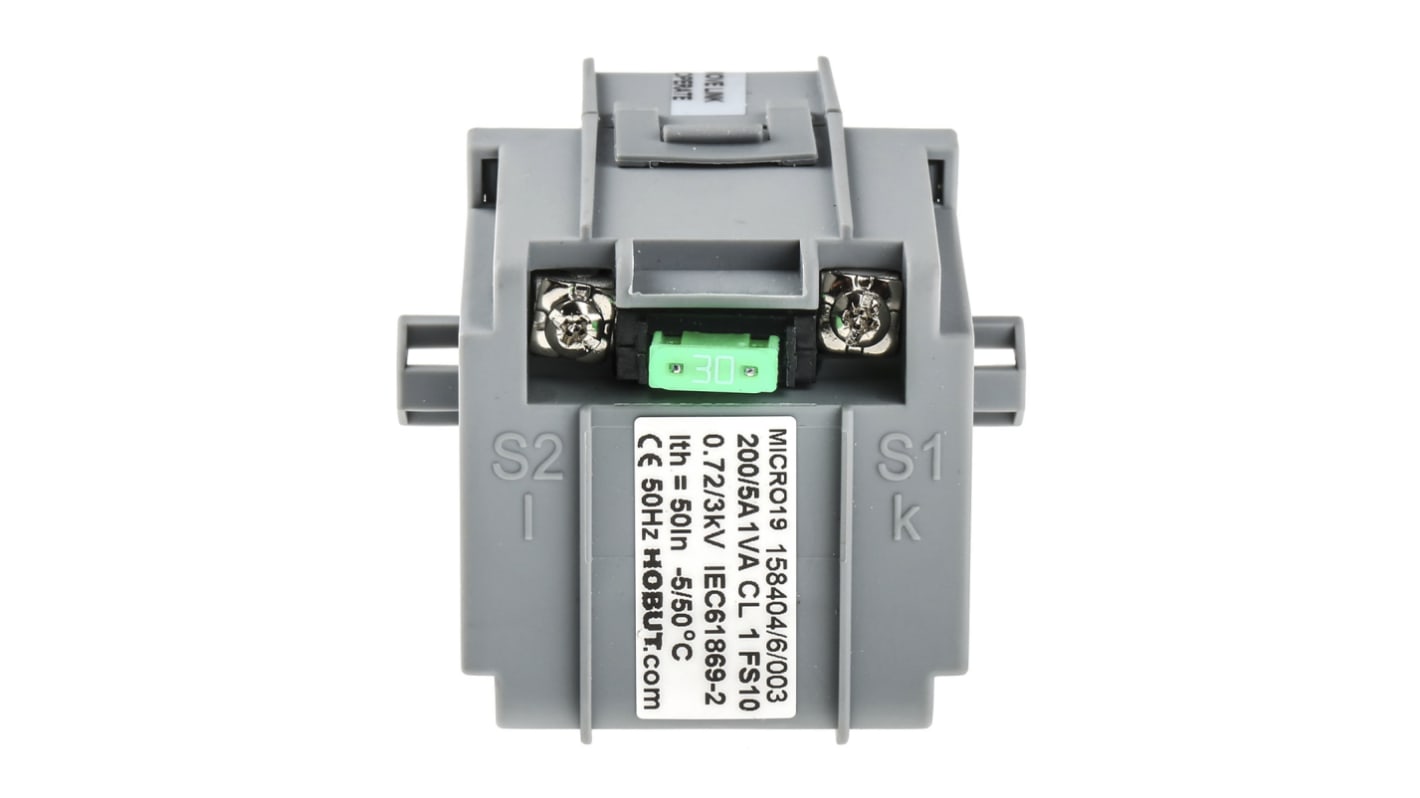

HOBUT Split-Core Current Transformer
The HOBUT MICRO 19 split-core current transformer is amongst the smallest available. It can be supplied with a choice of screw clamp terminals, flying leads and unique plug-in short circuit link. It is for installation into existing networks in complete safety. It has a primary current of 200A and a secondary output of 5A. The CT will not operate until the plug-in link is removed.
Features and Benefits
Class 1 accuracy
M3.5 Terminals and short circuit link
Rated system voltage ranges between 0.72kV to 3kV
VA rating is 100/150A = 0.5VA
Overall height of 78mm, width of 49mm and depth of 58mm
Operating temperature ranges between -30°C and 55°C
Certifications
ANSI/ESD S20.20:2014
BS EN 60044-1
BS EN 61340-5-1:2007
IEC 60044-1
CE certified
