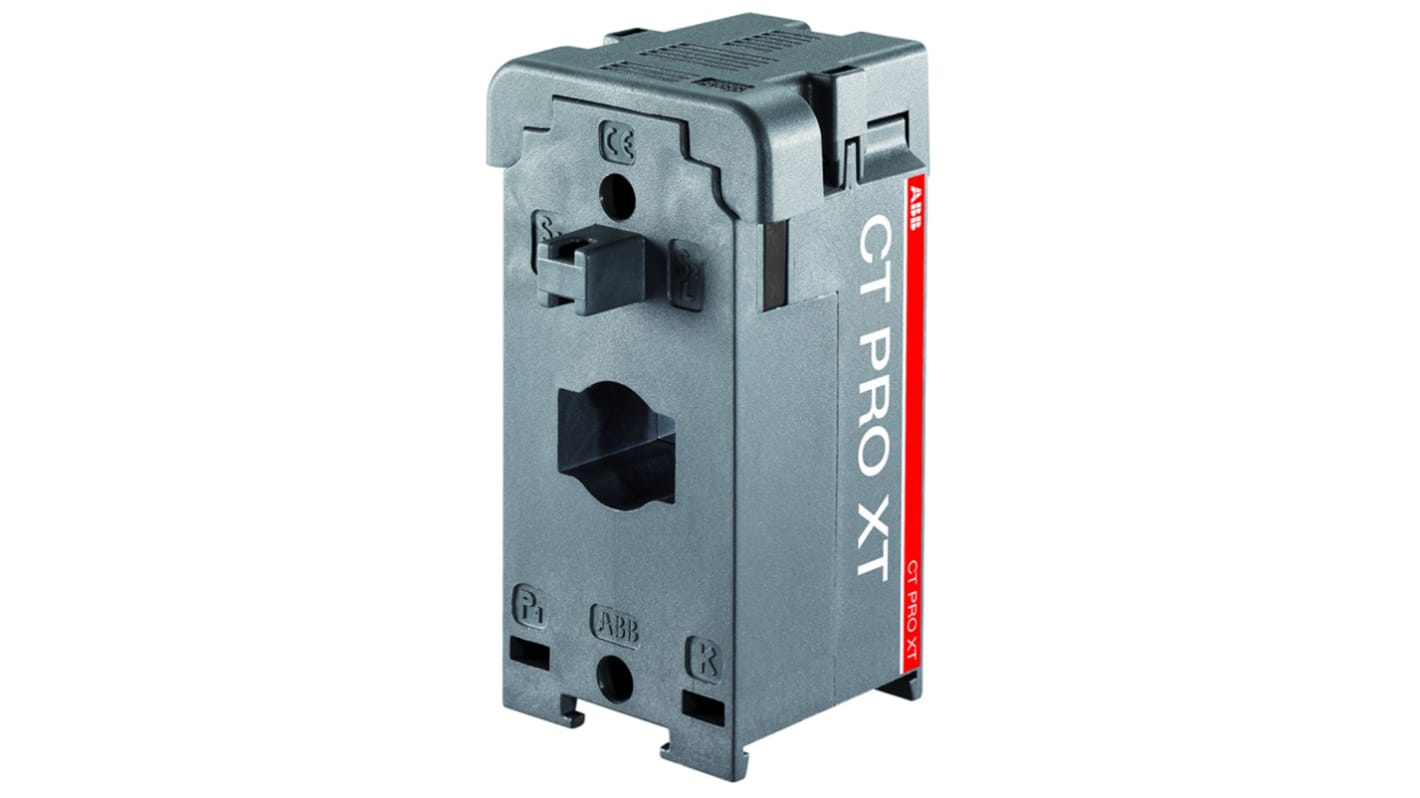

ABB CT PRO XT SELV Series Current Transformer 6000 A 18 mm Bore
- RS庫存編號:
- 881-7932
- 製造零件編號:
- 2CSG225845R1101 CT PRO XT 40 SELV
- 製造商:
- ABB
可享批量折扣
小計（1 件）*
HK$207.80
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$207.80 |
| 5 - 9 | HK$199.50 |
| 10 + | HK$191.10 |
* 參考價格
- RS庫存編號:
- 881-7932
- 製造零件編號:
- 2CSG225845R1101 CT PRO XT 40 SELV
- 製造商:
- ABB
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ABB | |
| Product Type | Current Transformer | |
| Series | CT PRO XT SELV | |
| Secondary Current | 5 A | |
| Primary Current | 6000A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | IEC 60364, IEC 473.1.4, CEI 411.5.2, CEI 473.2.3, IEC EN 61010-1, CEI 64-8-4, IEC EN 60044-1, MID, IEC 556.3, CEI 411.1.4.3, CEI 411.2 | |
| Weight | 3kg | |
| Mount Type | Busbar, Cable, DIN Rail, Wall | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 18 mm | |
| 選取全部 | ||
|---|---|---|
品牌 ABB | ||
Product Type Current Transformer | ||
Series CT PRO XT SELV | ||
Secondary Current 5 A | ||
Primary Current 6000A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals IEC 60364, IEC 473.1.4, CEI 411.5.2, CEI 473.2.3, IEC EN 61010-1, CEI 64-8-4, IEC EN 60044-1, MID, IEC 556.3, CEI 411.1.4.3, CEI 411.2 | ||
Weight 3kg | ||
Mount Type Busbar, Cable, DIN Rail, Wall | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 18 mm | ||
ABB CT PRO XT Current Transformer
The CT PRO XT range of current transformers has been specially designed for easy and safe switchboard installation, testing and maintenance operations thanks to the compact size of the products and their flexible assembly system.
These current transformers are designed to be part of metering systems, where they are used to allow indirect measuring
of electrical parameters of the network.
Compact dimensions for flexible installation
DIN rail, cable or busbar installation
5A standard secondary current
IP30 protection
Current Transformers
