Sifam Tinsley Omega XMER Series Current Transformer 7500 A 100 mm Bore
- RS庫存編號:
- 886-2241
- 製造零件編號:
- XM24-465165S000000
- 製造商:
- Sifam Tinsley
可享批量折扣
小計（1 件）*
HK$403.80
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$403.80 |
| 5 - 9 | HK$387.65 |
| 10 + | HK$371.50 |
* 參考價格
- RS庫存編號:
- 886-2241
- 製造零件編號:
- XM24-465165S000000
- 製造商:
- Sifam Tinsley
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Sifam Tinsley | |
| Product Type | Current Transformer | |
| Series | Omega XMER | |
| Secondary Current | 100 mA | |
| Primary Current | 7500A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC/EN 60044-1, CE, UL94V-0, IEC 61010-2, IEC 61869-1 | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Base, Busbar, Cable, Wall, DIN Rail | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 100 mm | |
| 選取全部 | ||
|---|---|---|
品牌 Sifam Tinsley | ||
Product Type Current Transformer | ||
Series Omega XMER | ||
Secondary Current 100 mA | ||
Primary Current 7500A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC/EN 60044-1, CE, UL94V-0, IEC 61010-2, IEC 61869-1 | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Base, Busbar, Cable, Wall, DIN Rail | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 100 mm | ||
不相容
- COO (Country of Origin):
- IN

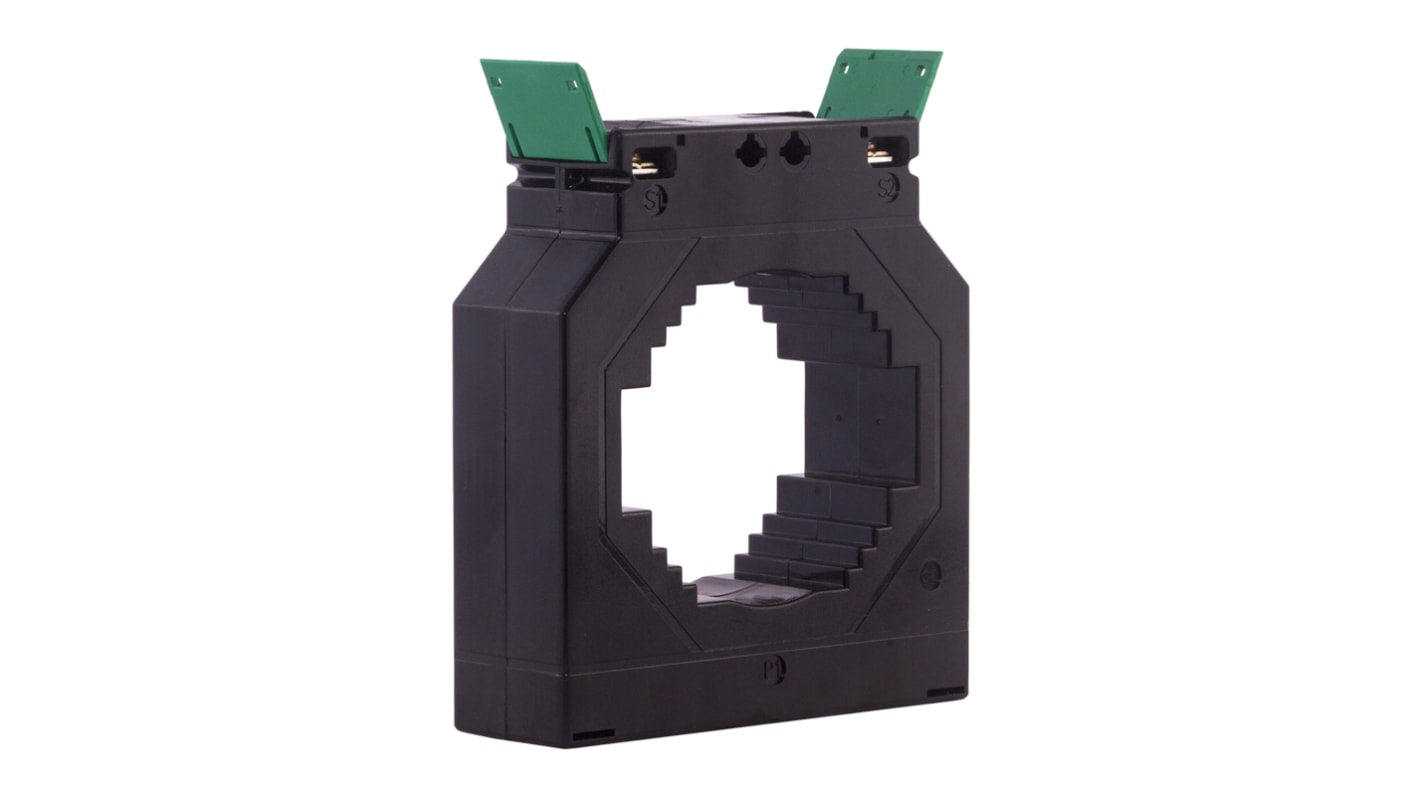

Sifam OMEGA XMER Current Transformer
OMEGA XMER Current transformers are square type and encapsulated with UL94V-0 approved polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings.
Available in various bus bar sizes, case widths and mounting options.
Cost effective moulded case current transformer
Various mounting options including wall mounting, bus bar mounting & DIN rail mounting
Class 3 accuracy
Wire sealable terminal covers
Current Transformers
