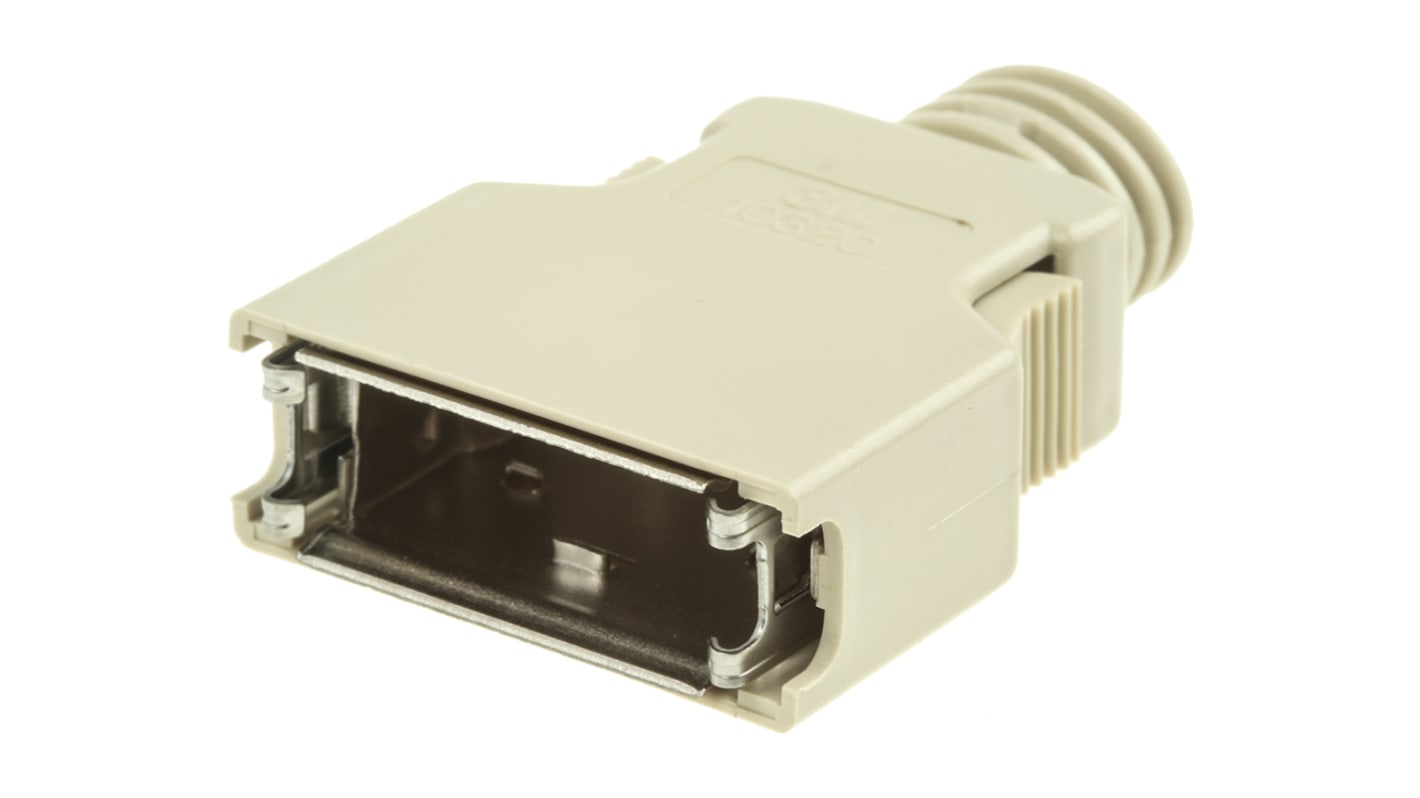

    3M 103 Series ABS D Sub Backshell, 20 Way, Strain Relief

    3M
    RS庫存編號:
    194-2949
    製造零件編號:
    10320-3210-000
    製造商:
    3M
    查看所有D Sub Backshells
    248 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    HK$59.56

    單位Per unit
    1 - 24HK$59.56
    25 - 74HK$58.31
    75 - 199HK$56.52
    200 - 399HK$55.15
    400 +HK$53.96
    RS庫存編號:
    194-2949
    製造零件編號:
    10320-3210-000
    製造商:
    3M

    產品概覽和技術數據資料表


    法例與合規


    產品詳細資訊

    Round Cable Plastic Backshell


    This range of 103 Series Mini Delta Ribbon (MDR) Backshells are .050" Plastic Shielded Junction Shells for Round Cable. The design of these 103 Series MDR Backshells consists of a plastic cover with straight cable exit and a two piece metal junction shell.
    Part numbers 103xx-3210-00x for the 103 Series MDR Backshell have quick release latching and a one piece plastic shell.
    Part numbers 103xx-3280-00x for the 103 Series MDR Backshell have quick release latching and a two piece plastic shell.
    Part numbers 103xx-32J0-00x for the 103 Series MDR Backshell have thumb screws and a one piece plastic shell.

    Features and Benefits


    UL 94V-0 plastic outer shell
    Suitable for use with IDC plugs stock no. 163-3285 (typically)

    Options


    • Part numbers 103xx-3210-00x for the 103 Series MDR Backshell have quick release latching and a one piece plastic shell.
    • Part numbers 103xx-3280-00x for the 103 Series MDR Backshell have quick release latching and a two piece plastic shell.
    • Part numbers 103xx-32J0-00x for the 103 Series MDR Backshell have thumb screws and a one piece plastic shell.

    Applications


    This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

    Why Choose 3M?


    3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

    3M D-Sub Backshell, Straight Body, 20 Way - 103 Series - 10320-3210-000


    Looking for a functional way to secure and insulate your D-sub connectors in electronic applications? This 3M D-sub backshell is a plastic housing for round cables. Use it to protect your connections from jolts and vibrations to ensure that your equipment works effectively. It provides electromagnetic interference (EMI) shielding, so avoids performance disruptions and damage to adjacent components or the connector. You can rely on this backshell to stabilise your connections and ensure the stable performance of your electronic instruments.

    • ABS (acrylonitrile butadiene styrene) housing resists damage caused by chemicals and abrasions to effectively safeguard internal wiring• Metal shell interior establishes optimal conductivity for reliable power and signal transfer• Straight cable exit provides strain relief to prevent damage to cables and minimise maintenance needs

    Applications


    • Home computing• Commercial and office networks• Multi-media equipment

    How will this connector shell prevent damage to the other components in my system?


    This connector shell is insulated and heat resistant. That means if a short circuit damages the wires in the backshell, the casing will isolate the damage and it won't spread to other components.

    Standards

    IEEE 1284


    Mini Delta Ribbon (MDR)


    Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
    Finger releasable latching backshells for cable mounting applications


    A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

    規格

    AttributeValue
    Number of Contacts20
    D-Sub Shell SizeD
    Housing MaterialABS
    Body OrientationStraight
    ColourBeige
    Strain ReliefYes
    Series103
