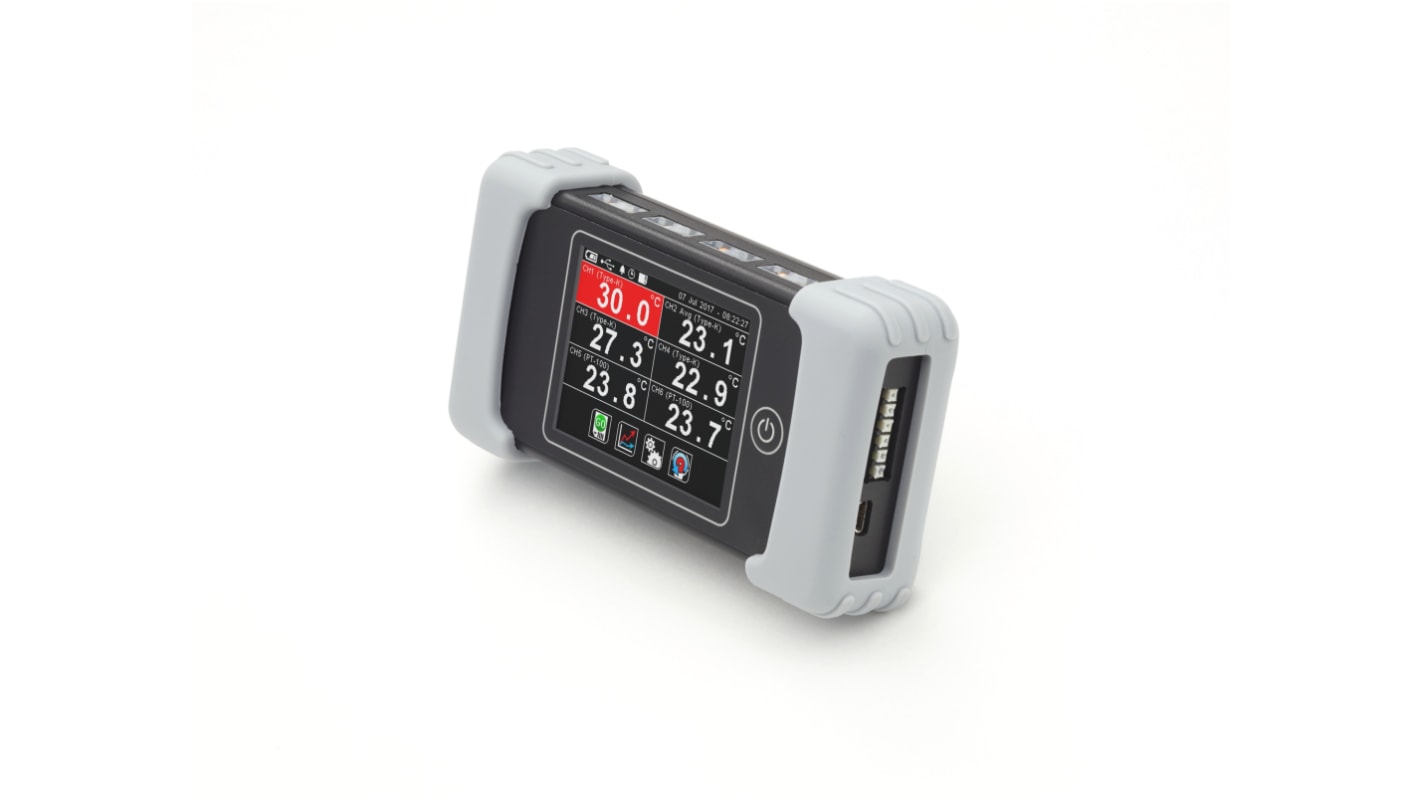

The Calex 6 Channel handheld temperature data logger with touch screen. It has 4 x thermocouple inputs and 2 x RTD inputs. It display and log all 6 channels simultaneously or individually. Data logging to SD Card, or PC via USB interface. It is powered by built-in battery, USB or mains adapter and (included) touch screen with backlight.
Built-in stand Free software available Modbus interface for integration into third-party software 2-channel scrolling temperature chart Alarm indication for each channel CE Marked and RoHS 2 Compliant
Attribute
Value
Number of Input Channels
6
Model Number
EXCELOG-6
Measurement Parameters
Temperature
Sensor Type
Thermocouple J, K, T, R, S, N, E, Pt100, Pt200, Pt500, Pt1000
Interface Type
USB
Data Logger Type
Temperature
Maximum Temperature Measurement
1768°C
Best Temperature Measurement Accuracy
± 0.1% or 0.8°C (thermocouple) / ± 1.0% or 1.0°C (RTD)
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+50°C
Display Type
TFT
Dimensions
136(w) x 71(h) x 32(d)mm
Battery Type
Rechargeable Lithium-Ion
Temperature Measurement Resolution
0.1° for measurements below 1000° (1° above 1000°)
