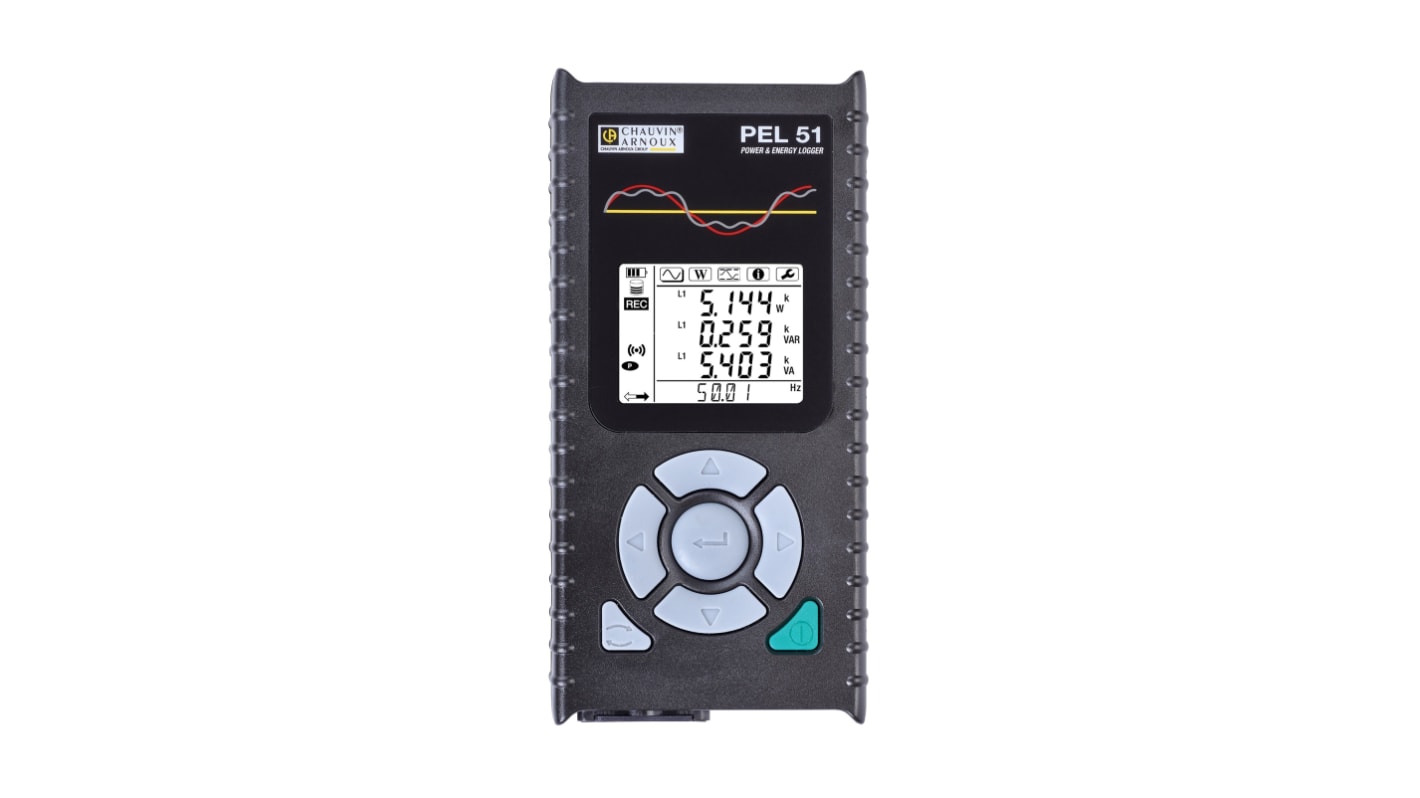

Chauvin Arnoux PEL51 Power & Energy Energy Monitor & Logger, WiFi, USB, Bluetooth
- RS庫存編號:
- 255-0905
- 製造零件編號:
- P01157166
- 製造商:
- Chauvin Arnoux
小計（1 件）*
HK$10,428.00
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 + | HK$10,428.00 |
* 參考價格
- RS庫存編號:
- 255-0905
- 製造零件編號:
- P01157166
- 製造商:
- Chauvin Arnoux
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Chauvin Arnoux | |
| Product Type | Energy Monitor & Logger | |
| Model Number | PEL51 | |
| Accuracy | ± 0.2% R ± 0.2 V | |
| Measurement Parameters | Voltage, Frequency, Current, Harmonic, Power, Energy | |
| Interface Type | WiFi, USB, Bluetooth | |
| Data Logger Type | Power & Energy | |
| Power Source | Battery | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 88mm | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Height | 37mm | |
| Length | 180mm | |
| Resolution | 1 mA | |
| Display Type | LCD Backlight | |
| Battery Type | Nickel-Metal Hydride | |
| Battery Life | 1h | |
| Alarm | Yes | |
| Maximum Measurement | 600 V | |
| Number of Readings per Channel | 1 | |
| 選取全部 | ||
|---|---|---|
品牌 Chauvin Arnoux | ||
Product Type Energy Monitor & Logger | ||
Model Number PEL51 | ||
Accuracy ± 0.2% R ± 0.2 V | ||
Measurement Parameters Voltage, Frequency, Current, Harmonic, Power, Energy | ||
Interface Type WiFi, USB, Bluetooth | ||
Data Logger Type Power & Energy | ||
Power Source Battery | ||
IP Rating IP54 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Width 88mm | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Height 37mm | ||
Length 180mm | ||
Resolution 1 mA | ||
Display Type LCD Backlight | ||
Battery Type Nickel-Metal Hydride | ||
Battery Life 1h | ||
Alarm Yes | ||
Maximum Measurement 600 V | ||
Number of Readings per Channel 1 | ||
- COO (Country of Origin):
- FR
The Chauvin Arnoux power & energy logger are single-phase power & energy logger, it is use to record voltage, current, power and energy on alternating current distribution grids (50 Hz or 60 Hz). It is designed to operate in 690 V, logger has 1V / 1I channel. The logger has backlit LCD (blue) with double display. It can measure up to 690 V. data can store on device.
Network frequencies DC, 50 Hz, 60 Hz
Voltage 10 Vac to 690 Vac
Mounting magnet
Phase cos ϕ, tan Φ, PF
