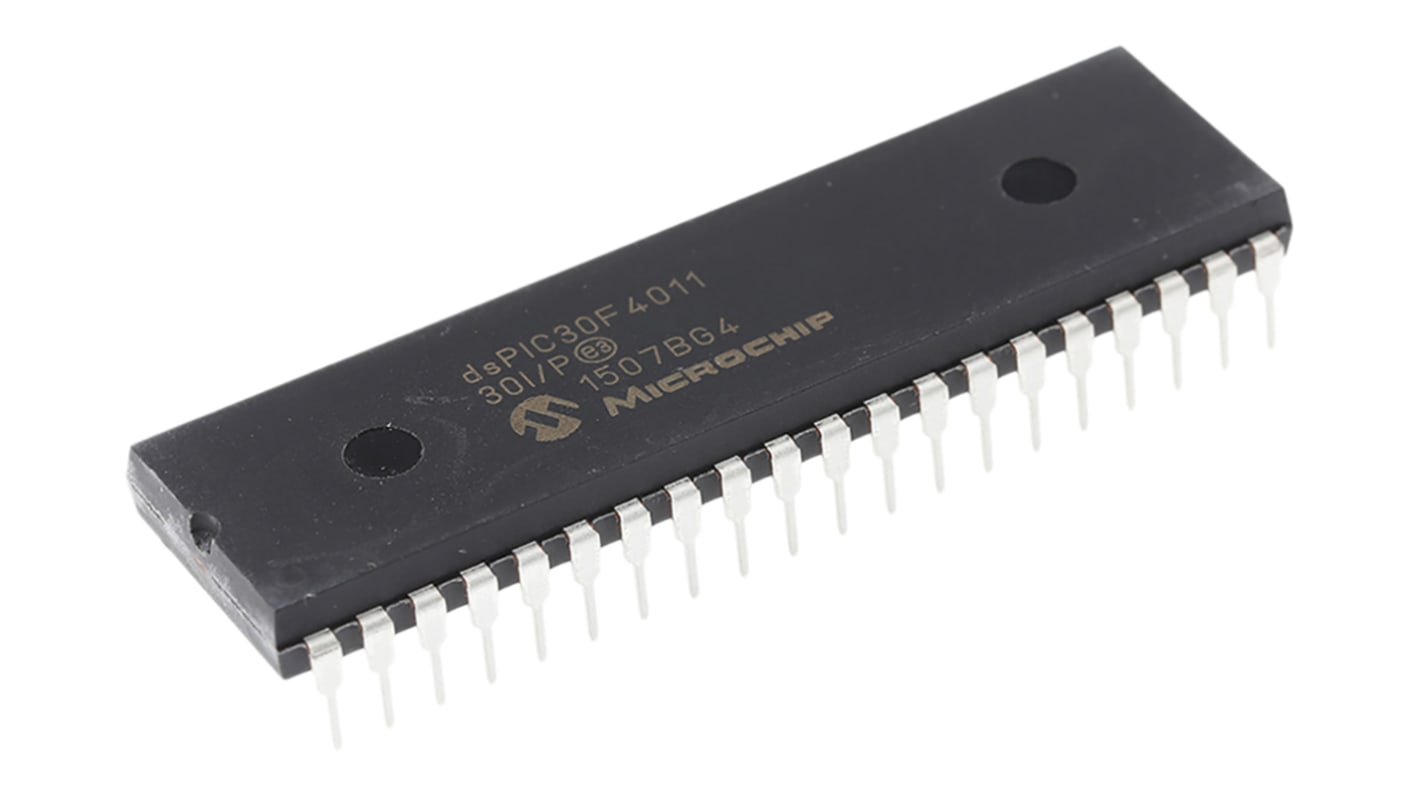

    DSPIC30F4011-30I/P Microchip dsPIC30F, 16bit Digital Signal Processor 30MIPS 1.024 kB, 48 kB Flash 40-Pin PDIP

    查看所有Digital Signal Processors
    可享批量折扣

    小計（1 件）**

    HK$75.60

    Add to Basket
    選擇或輸入數量
    12 現貨庫存，可於3工作日發貨。*

    * 交貨日期可能會根據您選擇的數量和交貨地址而變更。

    即時庫存查詢
    單位
    每單位
    1 - 2HK$75.60
    3 - 4HK$74.10
    5 +HK$72.60

    ** 參考價格

    RS庫存編號:
    622-9954
    製造零件編號:
    DSPIC30F4011-30I/P
    製造商:
    Microchip
    透過選取一個或多個屬性來查找類似產品。
    選取全部

    品牌

    Microchip

    Maximum Frequency

    30MIPS

    Series

    dsPIC30F

    Device Million Instructions per Second

    30MIPS

    Data Bus Width

    16bit

    RAM Size

    2.048 kB

    Instruction Set Architecture

    RISC

    Program Memory Size

    1.024 kB, 48 kB

    Program Memory Type

    Flash

    Mounting Type

    Through Hole

    Package Type

    PDIP

    Pin Count

    40

    Typical Operating Supply Voltage

    2.5 → 5.5 V

    Number of UART Channels

    2

    PWM Channels

    6

    Number of PCI Channels

    0

    Number of I2C Channels

    1

    ADC Channels

    9

    Number of CAN Channels

    1

    ADC Resolution

    10bit

    Number of LIN Channels

    0

    Number of USART Channels

    0

    Timers

    5 x 16 bit

    Number of Ethernet Channels

    0

    Maximum Operating Temperature

    +85 °C

    ADCs

    9 x 10 bit

    Length

    53.21mm

    Number of ADC Units

    1

    Number of PWM Units

    5

    USB Channels

    0

    PWM Resolution

    16bit

    Minimum Operating Temperature

    -40 °C

    Number of Timers

    5

    Width

    0.58in

    Pulse Width Modulation

    1(6 Channel) (Motor Control), 4(16 bit)

    Timer Resolution

    16bit

    Number of SPI Channels

    1

    Height

    4.95mm

    Dimensions

    2.095 x 0.58 x 0.195in
