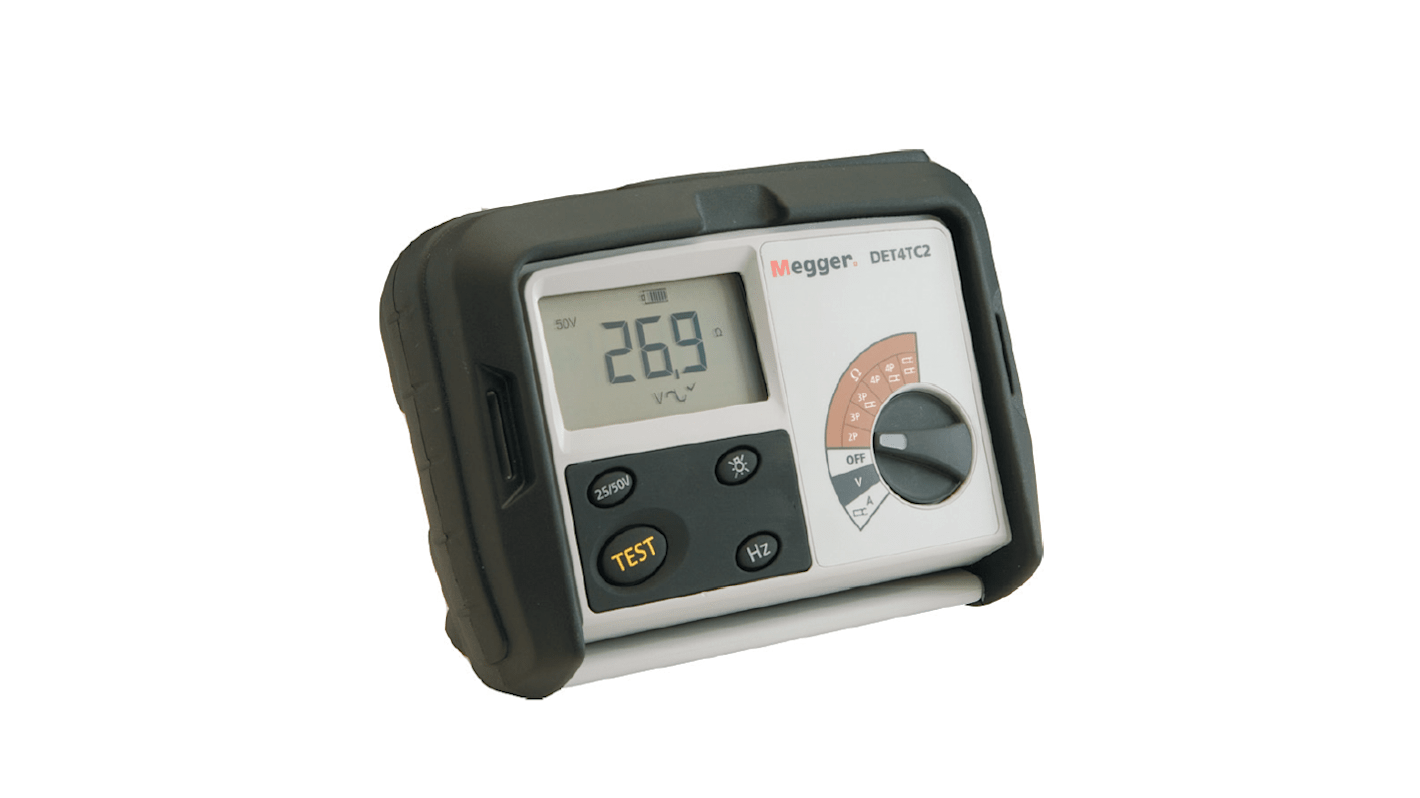

Megger DET4TC2 Earth Tester 200kΩ CAT IV 100 V
- RS庫存編號:
- 489-664
- 製造零件編號:
- 1000-345
- 製造商:
- Megger
查看所有Earth Testers
- RS庫存編號:
- 489-664
- 製造零件編號:
- 1000-345
- 製造商:
- Megger
不適用
- COO (Country of Origin):
- GB
法例與合規
不適用
- COO (Country of Origin):
- GB
產品詳細資訊
Megger Earth & Ground Resistance Tester
The Megger earth and ground resistance tester measure a 200kΩ absolute maximum resistance and having the CAT IV 100V safety category. This 4-pole earth tester is used to measure soil resistivity and resistance of earth rods and associated installations. It is supplied in a hard carry case together with auxiliary stakes and cables. An ICLAMP selective clamp is available separately and when used with the DET4TC allows the testing of an earth rod without the need to disconnect from the system. A VCLAMP is also available separately, which when used in conjunction with ICLAMP allows stakeless measurements to be made in situations where driving auxiliary stakes is not practical.
Features and Benefits
Automatic P spike and C spike check
Choice of 2, 3 or 4 terminal measurements
Clamp input for no-disconnect testing (requires ICLAMP)
Clamp inputs for stakeless testing (requires ICLAMP and VCLAMP)
Earth current range (requires ICLAMP)
Measures earth voltage between 0V and 100V
Operating temperature ranges between -15°C and 55°C
Resistance ranges between 0.01ohms and 20000ohms auto ranging
Simple one-button operation
Superior noise rejection to 40V (Pk-Pk)
Choice of 2, 3 or 4 terminal measurements
Clamp input for no-disconnect testing (requires ICLAMP)
Clamp inputs for stakeless testing (requires ICLAMP and VCLAMP)
Earth current range (requires ICLAMP)
Measures earth voltage between 0V and 100V
Operating temperature ranges between -15°C and 55°C
Resistance ranges between 0.01ohms and 20000ohms auto ranging
Simple one-button operation
Superior noise rejection to 40V (Pk-Pk)
Certifications
EN61010-1 CAT IV 100V
IEC61326
IP54 rated
IEC61326
IP54 rated
規格
Attribute | Value |
Absolute Maximum Resistance Measurement | 200kΩ |
Best Accuracy | ±2% + 3 Digits |
Display Type | LCD |
Safety Category | CAT IV 100 V |
Battery Life | 3 h |
Battery Type | AA |
Power Source | Battery |
Weight | 1kg |
Height | 148mm |
Includes | Calibration Certificate, Case, Spike, Test Lead |
Length | 203mm |
Maximum Operating Temperature | +55°C |
Measurement Type | 4 Terminal Earth Resistance, Soil Resistance |
Width | 78mm |
Minimum Operating Temperature | -15°C |
Model Number p | DET4TC2 |
