製造零件編號

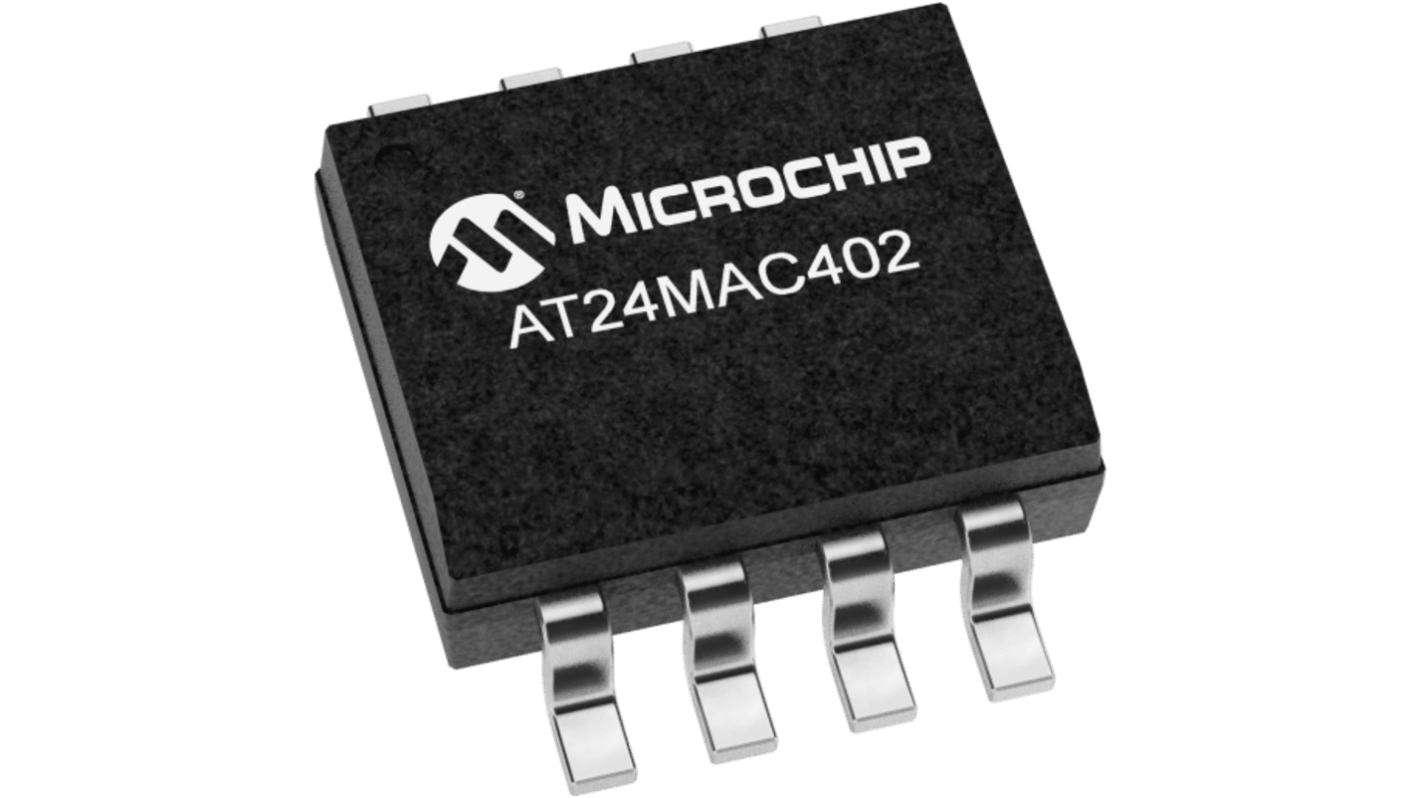

Microchip AT24MAC402-MAHM-T, 2 kB EEPROM, 450 ns 8-Pin SOT I2C, Serial-2 Wire

RS庫存編號:: 332-948
製造零件編號:: AT24MAC402-MAHM-T
製造商:: Microchip

Microchip AT24MAC402-MAHM-T, 2 kB EEPROM, 450 ns 8-Pin SOT I2C, Serial-2 Wire

小計（1 卷，共 5000 件）*

HK$23,770.00

訂單超過 HK$250.00 免費送貨

新產品 - 立即預訂

從 2026年7月06日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每卷*
5000 +	HK$4.754	HK$23,770.00

* 參考價格

RS庫存編號:: 332-948
製造零件編號:: AT24MAC402-MAHM-T
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Product Type	EEPROM
	Memory Size	2kB
	Interface Type	I2C, Serial-2 Wire
	Package Type	SOT
	Mount Type	Surface
	Pin Count	8
	Maximum Clock Frequency	1MHz
	Minimum Supply Voltage	1.7V
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Standards/Approvals	RoHS
	Series	AT24MAC402
	Maximum Random Access Time	450ns
	Supply Current	25μA
	Automotive Standard	AEC-Q100
	Data Retention	200year

	選取全部
	品牌 Microchip
	Product Type EEPROM
	Memory Size 2kB
	Interface Type I2C, Serial-2 Wire
	Package Type SOT
	Mount Type Surface
	Pin Count 8
	Maximum Clock Frequency 1MHz
	Minimum Supply Voltage 1.7V
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Standards/Approvals RoHS
	Series AT24MAC402
	Maximum Random Access Time 450ns
	Supply Current 25μA
	Automotive Standard AEC-Q100
	Data Retention 200year

Datasheet - AT24MAC402-MAHM-T

The Microchip 2Kb Serial EEPROM device is an application specific product that contains a unique IEEE provided 48 bit pre programmed MAC/EUI address to enable a connected device to connect to the Internet or local network. The device also contains a unique read only 128 bit serial number and 2Kb of user accessible serial EEPROM non volatile memory (NVM) storage.

Endurance of 1000000

1 MHz maximum clock frequency

Microchip AT24MAC402-MAHM-T, 2 kB EEPROM, 450 ns 8-Pin SOT I2C, Serial-2 Wire
