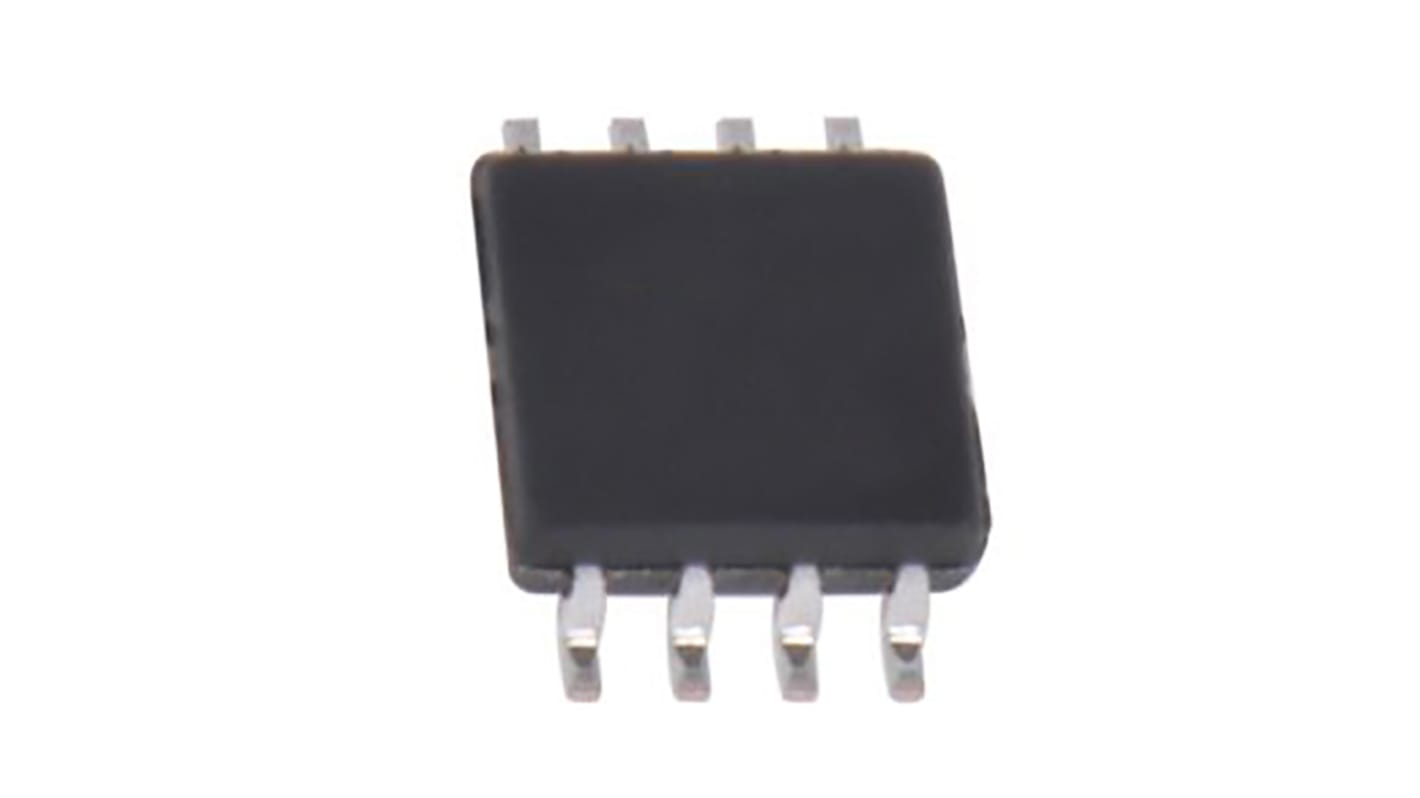

STMicroelectronics M24M01-RMN6P, 1Mbit EEPROM Chip, 500ns 8-Pin SO Serial-I2C
- RS庫存編號:
- 196-1987P
- 製造零件編號:
- M24M01-RMN6P
- 製造商:
- STMicroelectronics
可享批量折扣
Price 个 (以每管裝提供)**
HK$12.44
1100 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 |
|---|---|
| 25 - 45 | HK$12.44 |
| 50 + | HK$12.16 |
** 參考價格
- RS庫存編號:
- 196-1987P
- 製造零件編號:
- M24M01-RMN6P
- 製造商:
- STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Memory Size | 1Mbit | |
| Interface Type | Serial-I2C | |
| Package Type | SO | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Organisation | 128 K x 8 bits | |
| Minimum Operating Supply Voltage | 1.8 V | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Programming Voltage | 1.8 → 5.5V | |
| Number of Bits per Word | 8bit | |
| Dimensions | 5 x 4 x 1.5mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Automotive Standard | AEC-Q100 | |
| Maximum Random Access Time | 500ns | |
| Data Retention | 200yr | |
| Number of Words | 128k | |
選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Memory Size 1Mbit | ||
Interface Type Serial-I2C | ||
Package Type SO | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Organisation 128 K x 8 bits | ||
Minimum Operating Supply Voltage 1.8 V | ||
Maximum Operating Supply Voltage 5.5 V | ||
Programming Voltage 1.8 → 5.5V | ||
Number of Bits per Word 8bit | ||
Dimensions 5 x 4 x 1.5mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Automotive Standard AEC-Q100 | ||
Maximum Random Access Time 500ns | ||
Data Retention 200yr | ||
Number of Words 128k | ||
