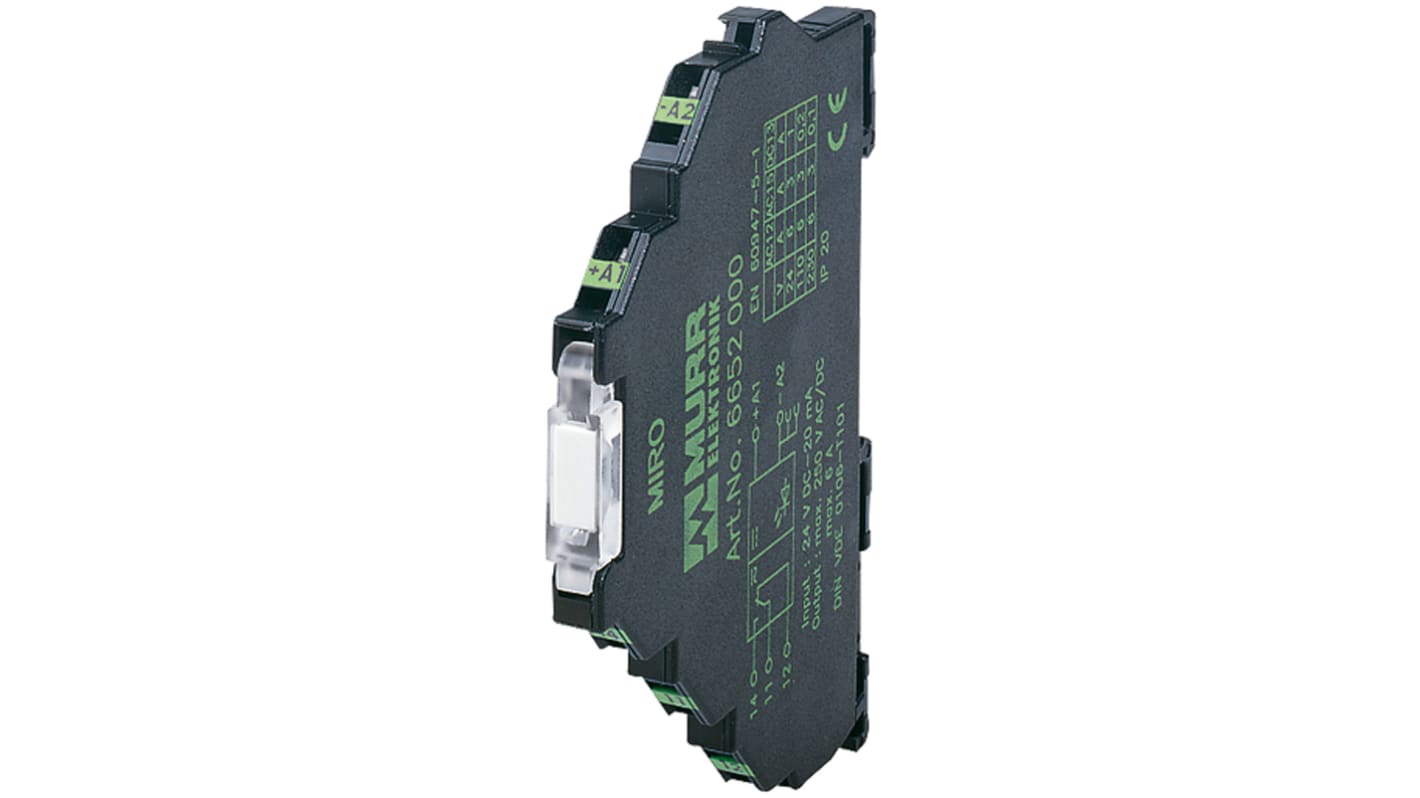

Murrelektronik Limited Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 6A Load
- RS庫存編號:
- 137-0310
- 製造零件編號:
- 6652002
- 製造商:
- Murrelektronik Limited
- RS庫存編號:
- 137-0310
- 製造零件編號:
- 6652002
- 製造商:
- Murrelektronik Limited
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CZ
產品詳細資訊
MurrElektronik MIRO 6.2 Series Relays
MurrElektronik MIRO 6.2 series interface relay module featuring coil/contact separation and LED status indicator. The MIRO 6.2 modules are a complete relay module without the need for seperate sockets, providing a quick simple installation option.
Features and Benefits
Status LED
Screw or spring clamp terminals
35mm DIN Rail mounting
規格
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Load Current Rating | 6A |
| Maximum Input Voltage | 250V ac/dc |
| Switching Voltage | 24 V dc → 250V ac/dc |
| Terminal Type | Spring |
| Depth | 70mm |
| Height | 78mm |
| Length | 6.2mm |
| Contact Material | Silver Alloy |
| Input Current | 14mA |
| Operating Temperature Range | -20 → +50°C |
| Dimensions | 6.2 x 70 x 78mm |
| Life | 20000000 (Mechanical) cycles |
| Minimum Operating Temperature | -20°C |
| Turn Off Time | 15ms |
| Maximum Operating Temperature | +55°C |
| Turn On Time | 10ms |
| Relay Switching Classification | Interface Relay Module |
| Standards Met | CCC, CE, CSA, cURus |
