RS PRO Interface Relay, DIN Rail Mount, 48V ac/dc Coil, SPDT, 1-Pole, 6A Load
- RS庫存編號:
- 282-4464
- 製造商:
- RS PRO
Price 个**
HK$152.27
38 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 + | HK$152.27 |
** 參考價格
- RS庫存編號:
- 282-4464
- 製造商:
- RS PRO
- COO (Country of Origin):
- CN

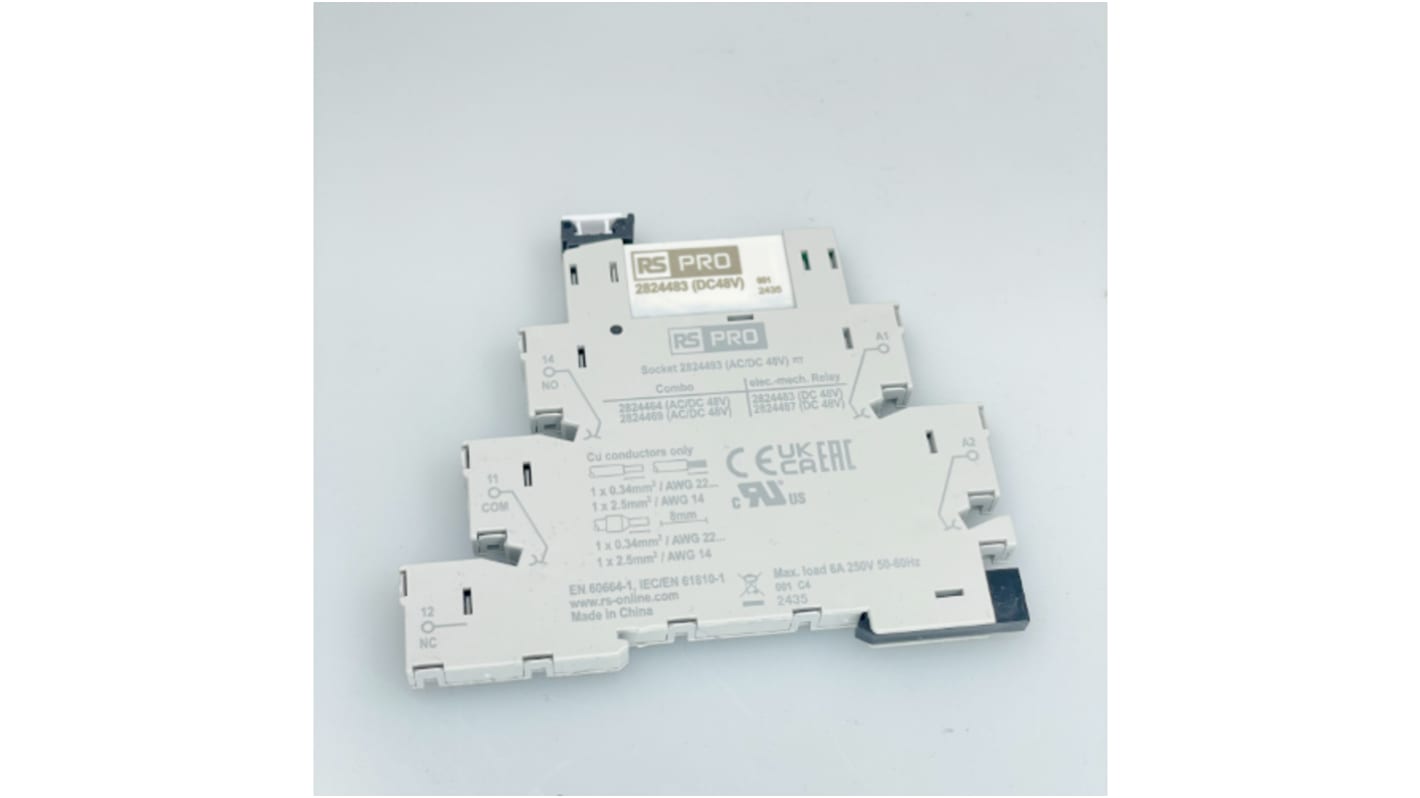

RS PRO 48V SPDT DIN Rail Interface Relay, 6A
An SPDT (Single Pole Double Throw) or changeover relay. Ideal for switching between circuits and signal conversion and suitable for general purpose applications including the transmission of digital signals to components such as PLCs.
A versatile SPDT relay suitable for both AC and DC circuits. Designed for DIN rail mounting on a standard 35mm rail the interface modules feature screw terminals for easy installation saving time on wiring.
Constructed from a hard wearing Polyamide housing with Silver Tin Oxide contacts providing a low level of contact resistance and a high level of conductivity for excellent signal stability and strength.
Features and Benefits
48V Interface relay
SPDT changeover
Suitable for AC and DC circuits
Screw terminals
35mm DIN rail mount
6A/250V maximum AC load
60/30V maximum DC load
IP20 rated
30g weight
Silver Tin contacts
89 x 73 x 6.2mm dimensions
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Attribute | Value |
|---|---|
| Coil Voltage | 48V ac/dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Load Current Rating | 6A |
| Load Voltage Rating | 30Vdc/ 250Vac |
| Maximum Input Voltage | 48V |
| Terminal Type | Screw |
| Depth | 6.2mm |
| Height | 73mm |
| Length | 89mm |
| Contact Material | Silver Tin Oxide |
| Input Current | 6A |
| Control Resistance | 10600Ω |
| Relay Type | AC/DC |
| Minimum Operating Temperature | -40°C |
| Dimensions | 89 x 73 x 6.2mm |
| Maximum Operating Temperature | +70°C |
