ETA REX12 REX12-T Electronic Circuit Breaker 4A 24V dc, DIN Rail
- RS庫存編號:
- 175-0366
- Distrelec 貨號:
- 302-18-908
- 製造零件編號:
- REX12-TA1-107-DC24V-4A
- 製造商:
- ETA
可享批量折扣
小計（1 件）*
HK$318.10
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 64 件從 2026年4月27日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$318.10 |
| 5 - 24 | HK$305.30 |
| 25 - 49 | HK$292.70 |
| 50 + | HK$285.80 |
* 參考價格
- RS庫存編號:
- 175-0366
- Distrelec 貨號:
- 302-18-908
- 製造零件編號:
- REX12-TA1-107-DC24V-4A
- 製造商:
- ETA
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ETA | |
| Range | REX12 | |
| Product Type | Electronic Circuit Breaker | |
| Series | REX12-T | |
| Number of Channels | 1 | |
| Current Rating | 4A | |
| Voltage | 24V dc | |
| Mount Type | DIN Rail | |
| Terminal Type | Push-in | |
| Length | 12.5mm | |
| Width | 12.5mm | |
| Depth | 80mm | |
| Standards/Approvals | RoHS, CE, UL | |
| 選取全部 | ||
|---|---|---|
品牌 ETA | ||
Range REX12 | ||
Product Type Electronic Circuit Breaker | ||
Series REX12-T | ||
Number of Channels 1 | ||
Current Rating 4A | ||
Voltage 24V dc | ||
Mount Type DIN Rail | ||
Terminal Type Push-in | ||
Length 12.5mm | ||
Width 12.5mm | ||
Depth 80mm | ||
Standards/Approvals RoHS, CE, UL | ||
- COO (Country of Origin):
- DE

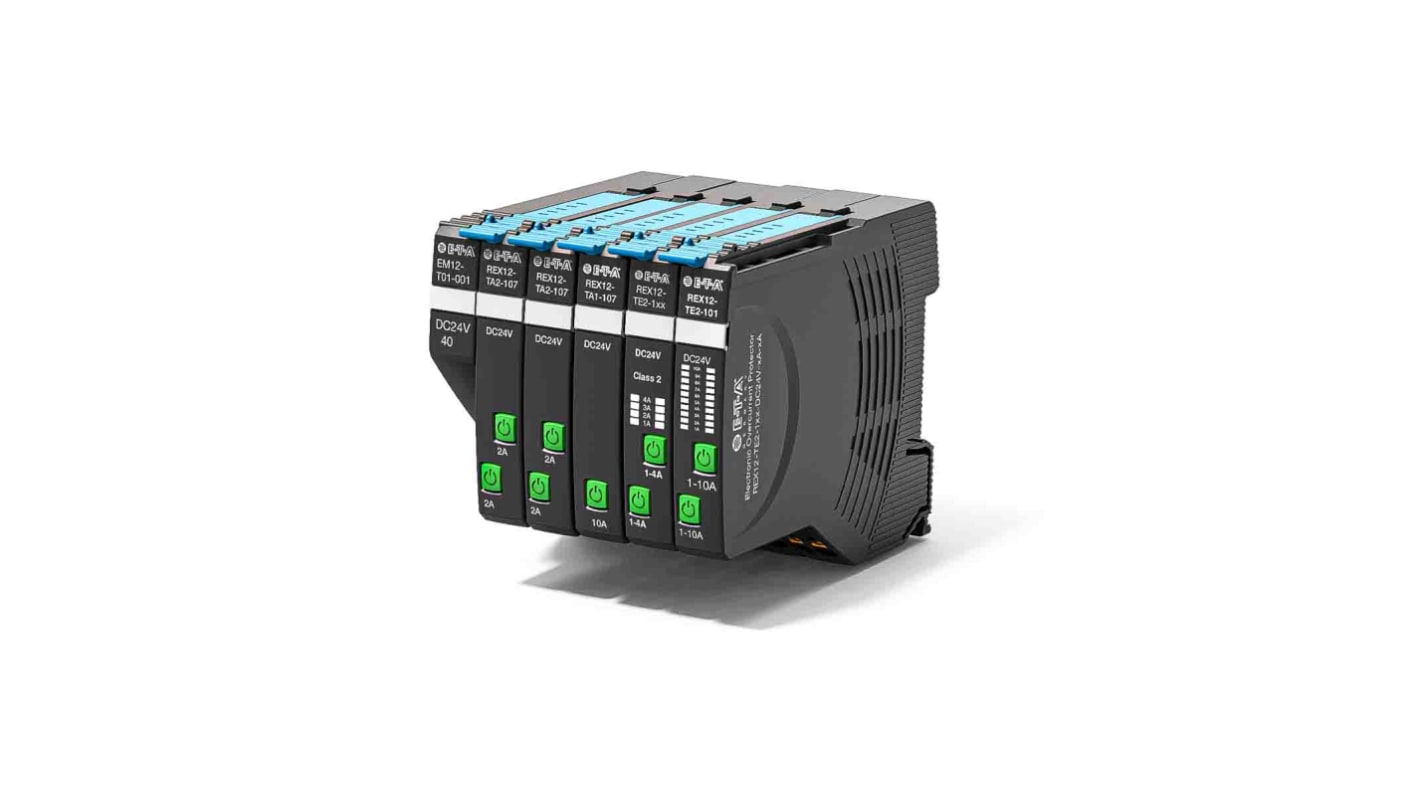

The compact and flexible all-in-one solution REX consists of several perfectly matched components. It comprises the EM12-T supply module for the plus and minus potential via a single or double channel REX12-T electronic circuit protector which can be mounted side by side in any number and the PM12-T potential extension module for plus and minus multiplication. Connection of the only 12.5 mm wide modules is exclusively with push-in terminals which allow no-tool time-saving wiring.
Combination of supply modules, overcurrent protection and power distribution
Single and double channel selective load protection by means of electronic trip curve
No accessories required for connecting the components
Fixed current rating
Integral fail-safe element, adjusted to current rating
Manual ON/OFF/reset momentary switch
Connection via push-in terminals including orange press release buttons
