可享批量折扣
小計 625 件 (以卷裝提供)*
HK$1,140.00
添加 625 件 件可免費送貨
有庫存
- 625 件準備從其他地點送貨
- 加上 2,500 件從 2026年7月29日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 625 - 1225 | HK$1.824 |
| 1250 + | HK$1.80 |
* 參考價格
- RS庫存編號:
- 170-5337P
- 製造零件編號:
- HEF4051BT,653
- 製造商:
- Nexperia
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Nexperia | |
| Product Type | Decoder | |
| Logic Family | HEF | |
| Logic Function | Multiplexer, Demultiplexer | |
| Number of Inputs | 2 | |
| Mount Type | Surface | |
| Package Type | SO | |
| Number of Outputs | 1 | |
| Pin Count | 16 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 15V | |
| Minimum Operating Temperature | 125°C | |
| Maximum Operating Temperature | -40°C | |
| Series | HEF | |
| Standards/Approvals | No | |
| Length | 2.2mm | |
| Height | 1mm | |
| Width | 1.35 mm | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Nexperia | ||
Product Type Decoder | ||
Logic Family HEF | ||
Logic Function Multiplexer, Demultiplexer | ||
Number of Inputs 2 | ||
Mount Type Surface | ||
Package Type SO | ||
Number of Outputs 1 | ||
Pin Count 16 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 15V | ||
Minimum Operating Temperature 125°C | ||
Maximum Operating Temperature -40°C | ||
Series HEF | ||
Standards/Approvals No | ||
Length 2.2mm | ||
Height 1mm | ||
Width 1.35 mm | ||
Automotive Standard No | ||

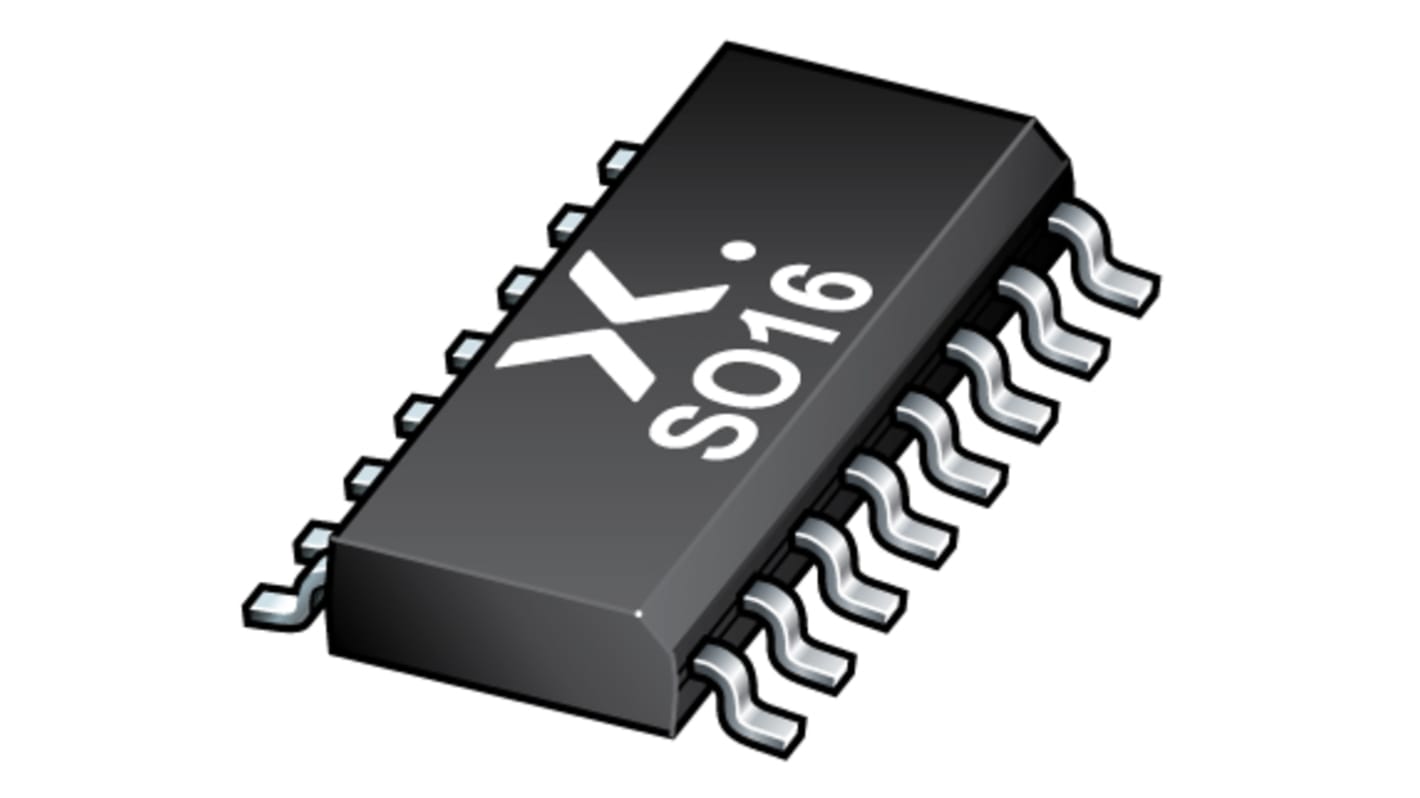

The HEF4051B is an 8-channel analog multiplexer/demultiplexer with three address inputs (S1 to S3), an Active LOW enable input (E), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). The device contains eight bidirectional analog switches, each with one side connected to an independent input/output (Y0 to Y7) and the other side connected to a common input/output (Z). With E LOW, one of the eight switches is selected (low-impedance ON-state) by S1 to S3. With E HIGH, all switches are in the high-impedance OFF-state, independent of S1 to S3.
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
Specified from ‑40 °C to +85 °C and ‑40°C to +125 °C
Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating
