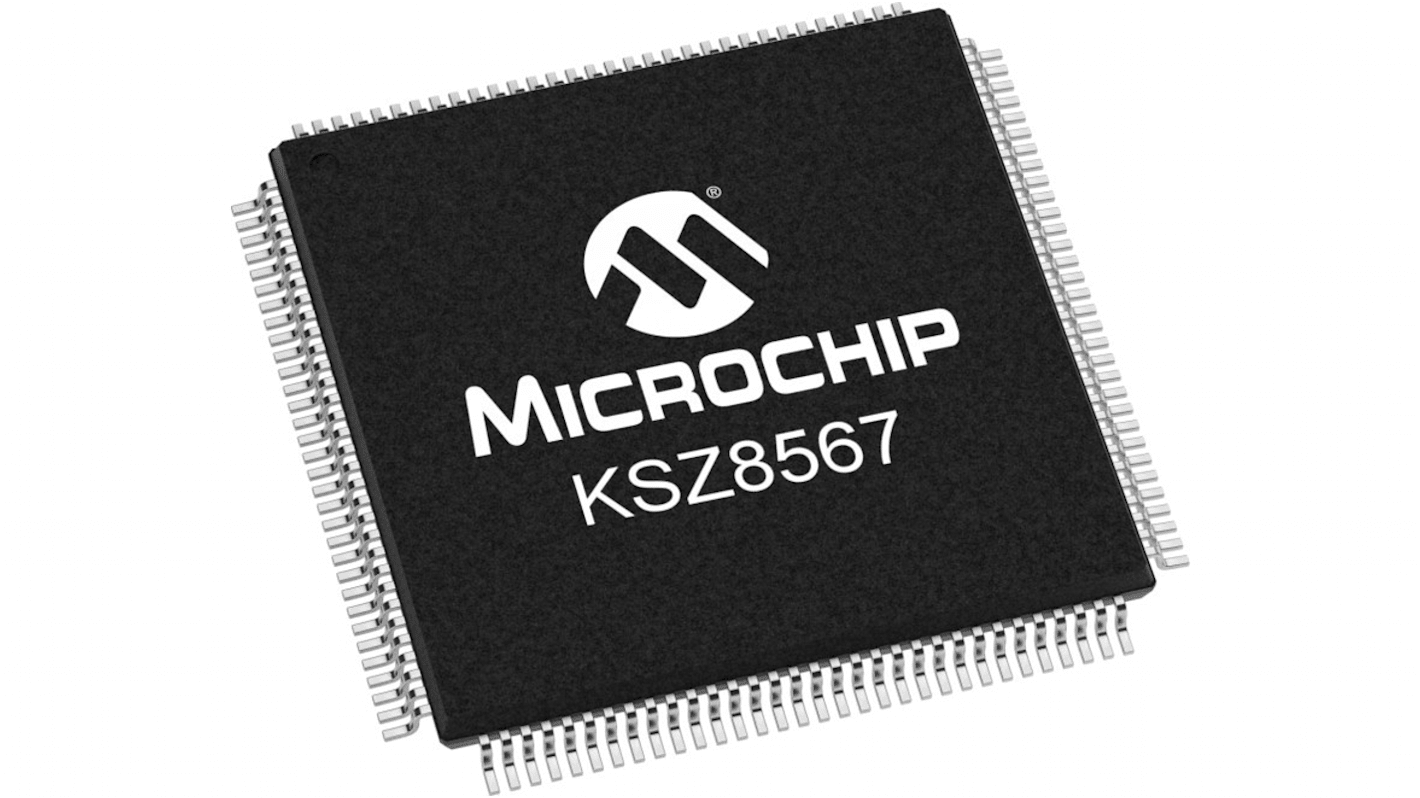

Microchip, Ethernet Switch IC, 1.8 V 100 Mbps MII, RGMII, RMII, 128-Pin 3.46V TQFP

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Ethernet Interface Ics
可享批量折扣

小計（1 托盤，共 90 件）*

HK$10,215.36

Add to Basket
選擇或輸入數量
库存信息目前无法访问 - 请稍候查看

單位
每單位
每托盤*
90 - 360HK$113.504HK$10,215.36
450 +HK$111.236HK$10,011.24

* 參考價格

RS庫存編號:
239-5579
製造零件編號:
KSZ8567RTXI
製造商:
Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Microchip

Product Type

Ethernet Switch IC

Maximum Data Rate

100Mbps

Communication Mode

Full Duplex/Half Duplex

Number of Transceivers

5

Interface Type

MII, RGMII, RMII

Package Type

TQFP

Pin Count

128

Maximum Supply Voltage

3.46V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Minimum Supply Voltage

1.8V

Standards/Approvals

RoHS

Automotive Standard

No

The Microchip highly-integrated, IEEE 802.3 compliant networking device that incorporates a layer-2 managed high-performance Ethernet switch, five 10BASE-T/Te/100BASE-TX physical layer transceivers (PHYs) and associated MAC units, and two MAC ports with individually configurable RGMII/MII/RMII interfaces for direct connection to a host processor/controller, another Ethernet switch, or an Ethernet PHY transceiver. This device incorporates full hardware support for the IEEE 1588v2 precision time protocol (PTP), including hardware time-stamping at all PHY-MAC interfaces, and a high-resolution hardware “PTP clock”. IEEE 1588 provides sub microsecond synchronization for a range of industrial Ethernet applications.

Requires 2 to 3 power supply for 1.8 V, 2.5 V, or 3.3 V

Non-blocking wire-speed Ethernet switch fabric supports 1 Gbps on RGMII

Full-featured forwarding and filtering control, including port-based Access Control List filtering

Full VLAN and QoS support

Traffic prioritization with per-port ingress/egress queues and by traffic classification
