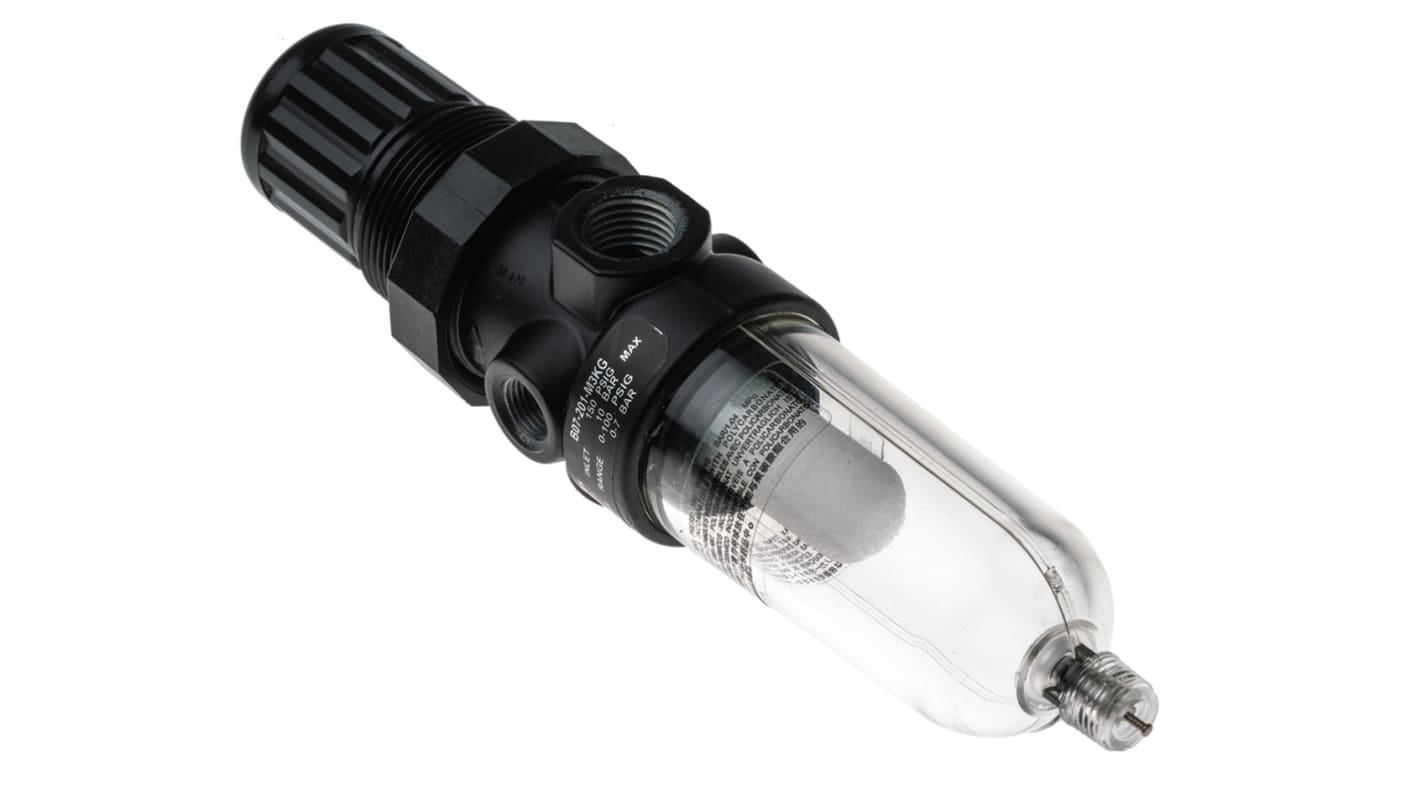

Norgren B07 Filter Regulator, 40 μm, 1/4 in, Manual, 7 bar

RS庫存編號:: 123-917
製造零件編號:: B07-201-M3KG
製造商:: Norgren

Norgren B07 Filter Regulator, 40 μm, 1/4 in, Manual, 7 bar

小計（1 件）*

HK$642.30

訂單超過 HK$250.00 免費送貨

有庫存

14 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$642.30

* 參考價格

RS庫存編號:: 123-917
製造零件編號:: B07-201-M3KG
製造商:: Norgren

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Norgren
	Product Type	Filter Regulator
	Port Size	1/4 in
	Maximum Operating Pressure	7 bar
	Maximum Flow Rate	6.2dm³/s
	Connection Thread Standard	G
	Series	B07
	Drain Type	Manual
	Filtration Size	40μm
	Pressure Gauge Port Size	1/8 in
	Overall Length	28mm
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	50°C
	Overall Width	41mm
	Standards/Approvals	RoHS
	Overall Height	214mm
	Bowl Material	Plastic
	Pressure Gauge Port Thread Standard	Rc
	Pressure Setting Range	0.3 to 7 bar

	選取全部
	品牌 Norgren
	Product Type Filter Regulator
	Port Size 1/4 in
	Maximum Operating Pressure 7 bar
	Maximum Flow Rate 6.2dm³/s
	Connection Thread Standard G
	Series B07
	Drain Type Manual
	Filtration Size 40μm
	Pressure Gauge Port Size 1/8 in
	Overall Length 28mm
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 50°C
	Overall Width 41mm
	Standards/Approvals RoHS
	Overall Height 214mm
	Bowl Material Plastic
	Pressure Gauge Port Thread Standard Rc
	Pressure Setting Range 0.3 to 7 bar

豁免

IMI Norgren Filter Regulator, 40μm Filtration Size, 10 Bar Maximum Inlet Pressure - B07 Series - B07-201-M3KG

Use this filter regulator from IMI Norgren for the proper preparation of compressed air in your pneumatic systems. It's a two-in-one component that removes impurities from the input supply while at the same time controlling its pressure. This optimises performance and reduces downtime in your air-powered devices. The unit's polypropylene filter has a filtration size of 40μm, so it'll catch tiny dust particles and ensure clean air input. As the regulator has a low torque adjusting knob with a push-to-lock feature, retaining a set pressure is simple.

Features & Benefits

• Zinc body provides durability and resistance to corrosion for long-term performance in harsh environments

• Compact dimensions of 164 (length) x 38 (height) x 41mm (width) for use in setups with limited space

• Panel and bracket mounting options for versatility to suit your design specifications

• Polycarbonate bowl for collection of waste water and contaminants

Applications

• Pharmaceutical production plants

• Aerospace industry

• Electronics manufacturing

What's the operating temperature range of this filter regulator?

This filter regulator has a wide operating temperature range of -34°C to +50°C, so it's suitable for use in demanding environments. It's important to prevent ice formation at temperatures below +2°C that could cause damage and malfunction.
