Microchip Split Gate 2 MB Parallel Flash Memory 32-Pin PLCC

RS庫存編號:: 165-2075
製造零件編號:: SST39SF020A-70-4C-NHE
製造商:: Microchip

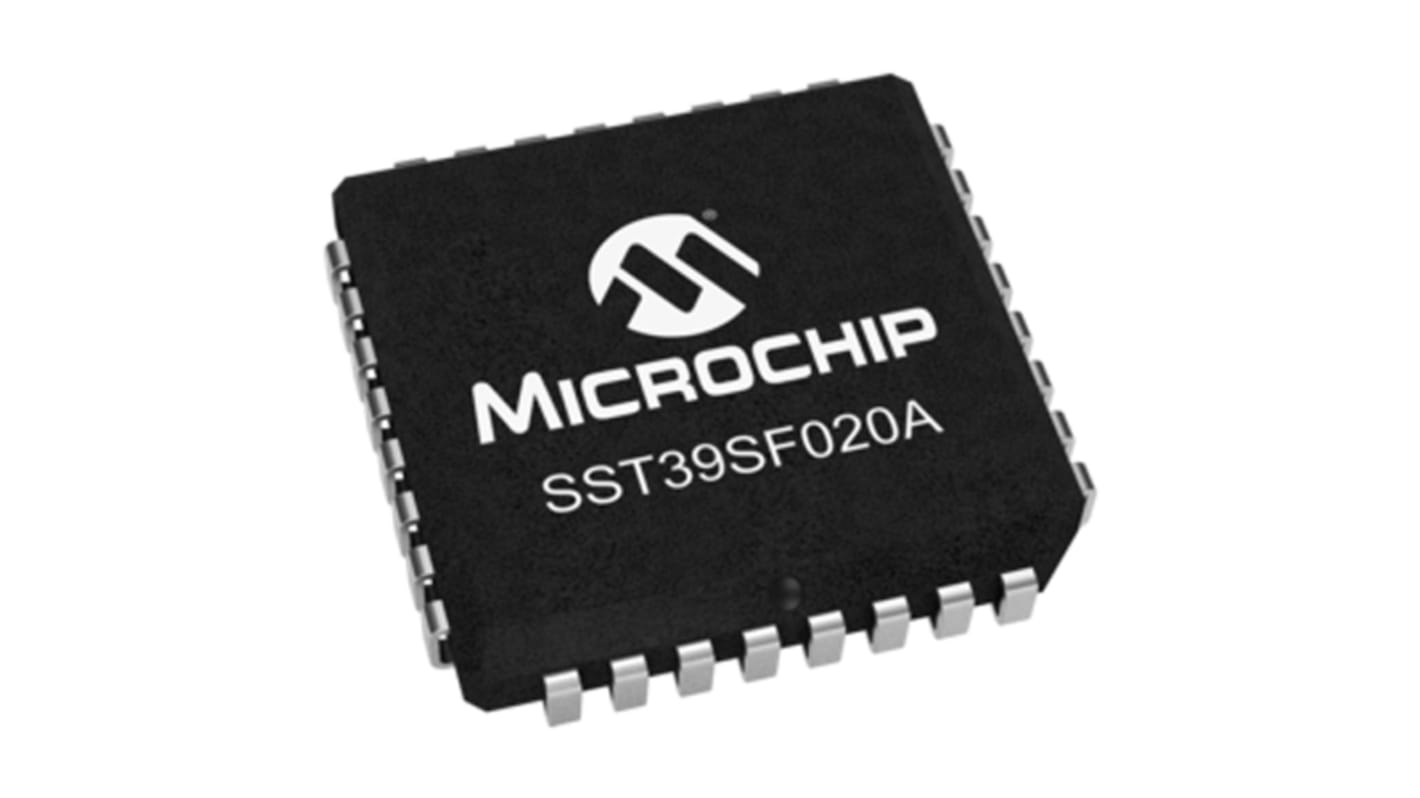

Microchip Split Gate 2 MB Parallel Flash Memory 32-Pin PLCC

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 管，共 30 件）*

HK$625.59

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年6月15日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每管*
30 - 30	HK$20.853	HK$625.59
60 - 270	HK$20.437	HK$613.11
300 +	HK$20.027	HK$600.81

* 參考價格

RS庫存編號:: 165-2075
製造零件編號:: SST39SF020A-70-4C-NHE
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Memory Size	2MB
	Product Type	Flash Memory
	Interface Type	Parallel
	Package Type	PLCC
	Pin Count	32
	Organisation	256k x 8 Bit
	Mount Type	Surface
	Cell Type	Split Gate
	Maximum Supply Voltage	5.5V
	Minimum Supply Voltage	4.5V
	Timing Type	Asynchronous
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	70°C
	Length	14.05mm
	Height	2.84mm
	Width	349.25 mm
	Standards/Approvals	No
	Series	SST39SF020A
	Automotive Standard	No
	Number of Words	256K
	Number of Bits per Word	8
	Supply Current	25mA
	Maximum Random Access Time	70ns

	選取全部
	品牌 Microchip
	Memory Size 2MB
	Product Type Flash Memory
	Interface Type Parallel
	Package Type PLCC
	Pin Count 32
	Organisation 256k x 8 Bit
	Mount Type Surface
	Cell Type Split Gate
	Maximum Supply Voltage 5.5V
	Minimum Supply Voltage 4.5V
	Timing Type Asynchronous
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 70°C
	Length 14.05mm
	Height 2.84mm
	Width 349.25 mm
	Standards/Approvals No
	Series SST39SF020A
	Automotive Standard No
	Number of Words 256K
	Number of Bits per Word 8
	Supply Current 25mA
	Maximum Random Access Time 70ns

Datasheet

COO (Country of Origin):: TH

SST39SF010A/020A/040 Parallel SuperFlash® Memory

The SST39SF010A/020A/040 family of devices from Microchip are Parallel multi-purpose SuperFlash® Memory ICs.

Features

4.5-5.5V Read and Write Operations

Endurance – 100,000 cycles (typical)

Low Power Consumption - Active Current 10 mA, Standby Current 30 μA (typical values at 14 MHz)

Sector-Erase Capability – Uniform 4 Kbyte sectors

Read Access Time – 55 to 70 ns

Sector-Erase Time 18 MS

Chip-Erase Time: 70 MS (typical)

Byte-Program Time – 14 μs (typical)

Chip Rewrite Time – SST39SF010A 2 seconds, SST39SF020A 4 seconds, SST39SF040 8 seconds (typical values)

Latched Address and Data

Automatic Write Timing – Internal VPP Generation

End-of-Write Detection – Toggle Bit – Data# Polling

TTL I/O Compatibility

JEDEC Standard– Flash EEPROM Pinouts and Command Sets

Microchip Split Gate 2 MB Parallel Flash Memory 32-Pin PLCC
