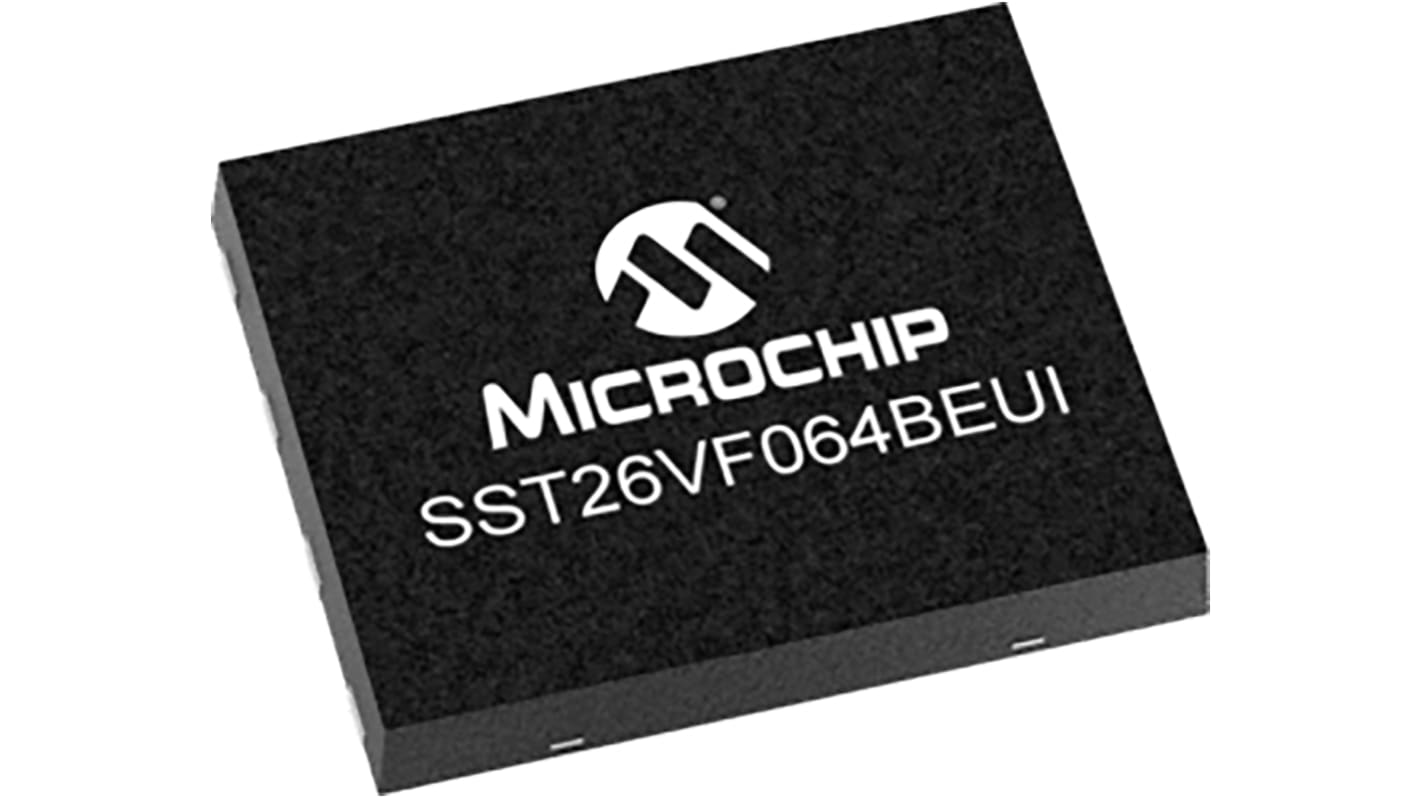

Microchip Split 64Mbit Serial-SPI Flash Memory 8-Pin WDFN, SST26VF064BEUI-104I/MF

查看所有Flash Memory
可享批量折扣

小計（1 管，共 98 件）*

HK$3,723.118

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年2月12日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每管*
98 - 98HK$37.991HK$3,723.12
196 - 882HK$37.232HK$3,648.74
980 +HK$36.487HK$3,575.73

* 參考價格

RS庫存編號:
190-4955
製造零件編號:
SST26VF064BEUI-104I/MF
製造商:
Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Microchip

Memory Size

64Mbit

Interface Type

Serial-SPI

Package Type

WDFN

Pin Count

8

Organisation

8M x 8 bit

Mounting Type

Surface Mount

Cell Type

Split

Minimum Operating Supply Voltage

2.3 V

Maximum Operating Supply Voltage

3.6 V

Block Organisation

Symmetrical

Length

6mm

Height

0.75mm

Width

5mm

Dimensions

5 x 6 x 0.75mm

Maximum Operating Temperature

+85 °C

Automotive Standard

AEC-Q100

Series

SST26

Number of Bits per Word

8bit

Number of Words

8M

Minimum Operating Temperature

-40 °C

Factory-Programmed with EUI-48™ and EUI-64™ Globally Unique identifier
x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol
Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around
Page-Program- 256 Bytes per page in x1 or x4 mode
Flexible Erase Capability- Uniform 4 KByte sectors, Four 8 KByte top and bottom parameter overlay blocks, One 32 KByte top and bottom overlay block, Uniform 64 KByte overlay blocks
Software Write Protection- Individual Block-Locking: 64 KByte blocks, two 32 KByte blocks, and eight 8 KByte parameter blocks
Low Power Consumption: Active Read current: 15 mA (typical @ 104 MHz), Standby Current: 15 μA (typical)
Serial Flash Discoverable Parameters (SFDP)
Industrial -40ºC to +85ºC
Packages Available: 8-contact WDFN (6mm x 5mm), 8-lead SOIC (208 mil)
