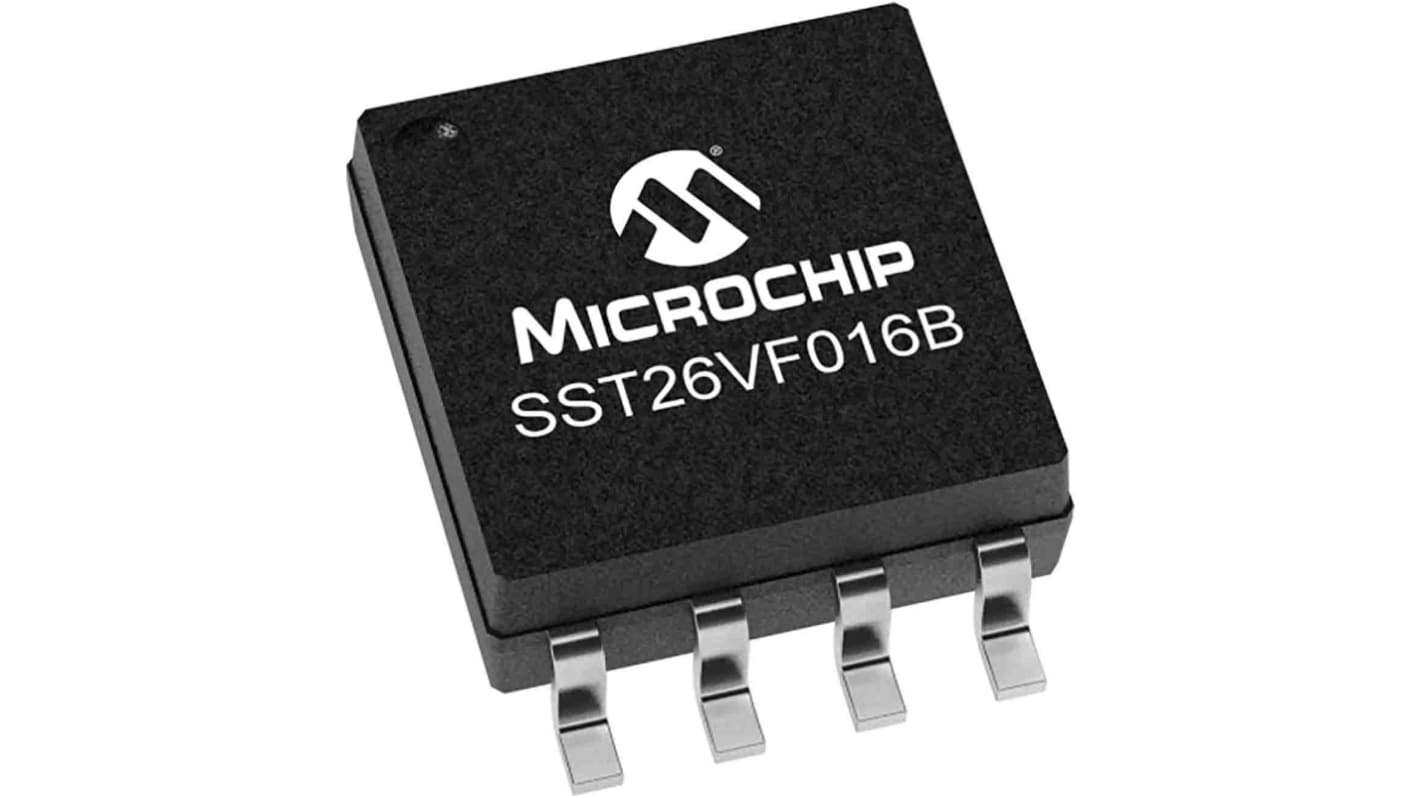

Microchip NOR 16 MB SPI Flash Memory 8-Pin SOIJ-8
- RS庫存編號:
- 197-5860
- 製造零件編號:
- SST26VF016BT-104I/SM
- 製造商:
- Microchip
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 卷，共 2100 件）*
HK$35,414.40
添加 2100 件 件可免費送貨
有庫存
- 2,100 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 2100 - 8400 | HK$16.864 | HK$35,414.40 |
| 10500 + | HK$16.527 | HK$34,706.70 |
* 參考價格
- RS庫存編號:
- 197-5860
- 製造零件編號:
- SST26VF016BT-104I/SM
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Product Type | Flash Memory | |
| Memory Size | 16MB | |
| Interface Type | SPI | |
| Package Type | SOIJ-8 | |
| Pin Count | 8 | |
| Organisation | 2M x 8 Bit | |
| Maximum Clock Frequency | 104MHz | |
| Mount Type | Surface | |
| Cell Type | NOR | |
| Minimum Supply Voltage | 2.3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Length | 5.26mm | |
| Height | 1.98mm | |
| Width | 5.25 mm | |
| Maximum Random Access Time | 8ns | |
| Number of Words | 2M | |
| Series | SST26 | |
| Number of Bits per Word | 8 | |
| Automotive Standard | AEC-Q100 | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Product Type Flash Memory | ||
Memory Size 16MB | ||
Interface Type SPI | ||
Package Type SOIJ-8 | ||
Pin Count 8 | ||
Organisation 2M x 8 Bit | ||
Maximum Clock Frequency 104MHz | ||
Mount Type Surface | ||
Cell Type NOR | ||
Minimum Supply Voltage 2.3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Length 5.26mm | ||
Height 1.98mm | ||
Width 5.25 mm | ||
Maximum Random Access Time 8ns | ||
Number of Words 2M | ||
Series SST26 | ||
Number of Bits per Word 8 | ||
Automotive Standard AEC-Q100 | ||
The Microchip SST26VF016B series is a 16Mbit serial quad I/O(SQI) flash memory. It also supports full command-set compatibility to traditional serial peripheral interface(SPI) protocol. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability.
Industrial temperature range is -40°C to +85°C
Single voltage read and write operations- 2.7-3.6V
Low power consumption
High speed clock frequency
All devices are RoHS compliant
Flexible erase capability
