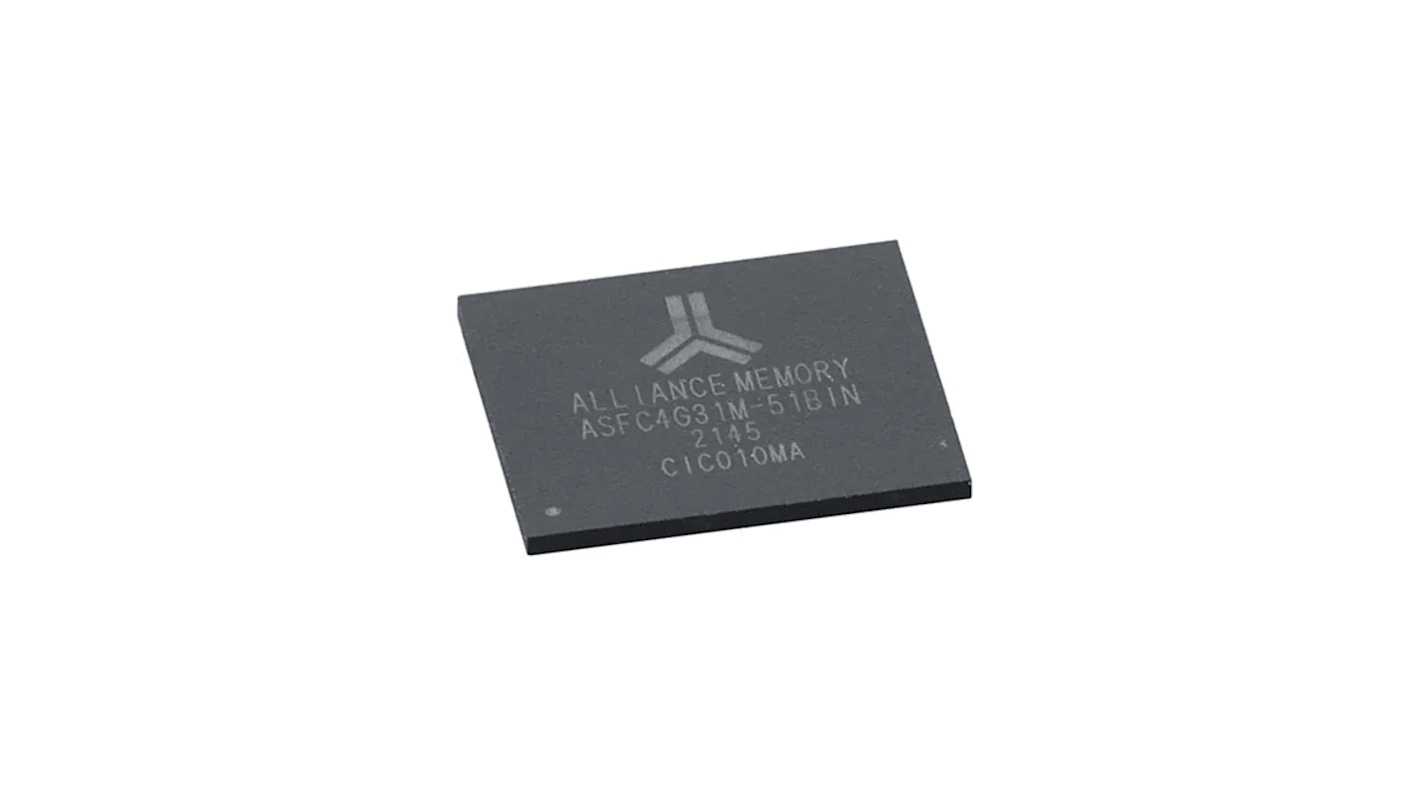

Alliance Memory NAND 4GByte eMMC Flash Memory 153-Pin FBGA, ASFC4G31M-51BIN
- RS庫存編號:
- 242-0190
- 製造零件編號:
- ASFC4G31M-51BIN
- 製造商:
- Alliance Memory
查看所有Flash Memory
當前暫無庫存，可於2023/10/26發貨，3 工作日送達。
單價 Each (In a Tray of 160)
HK$90.238
| 單位 | Per unit | Per Tray* |
| 160 - 160 | HK$90.238 | HK$14,438.08 |
| 320 - 320 | HK$84.304 | HK$13,488.64 |
| 480 + | HK$80.62 | HK$12,899.20 |
| * 參考價格 | ||
- RS庫存編號:
- 242-0190
- 製造零件編號:
- ASFC4G31M-51BIN
- 製造商:
- Alliance Memory
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The Alliance Memory 4GB eMMC device is a high performance embedded MMC solution designed for embedded NAND flash applications. It supports eMMC/JEDEC 5.1 industry standard and is backward compatible with eMMC 4.5 & 5.0 version.
Full Backward compatibility
Programmable bus width is 1 bit(Default), 4bit and 8bit Data bus
MMC I/F Clock Frequency is 0 to 200MHz
MMC I/F Boot Frequency is 0 to 52MHz
Operating Temperature is 40 to 85 °C
Operating Power Supply is VCC : 2.7V to 3.6V (for NAND Flash Memory)
VCCQ is 1.7V to 1.95V or 2.7V to 3.6V (for Interface)
Programmable bus width is 1 bit(Default), 4bit and 8bit Data bus
MMC I/F Clock Frequency is 0 to 200MHz
MMC I/F Boot Frequency is 0 to 52MHz
Operating Temperature is 40 to 85 °C
Operating Power Supply is VCC : 2.7V to 3.6V (for NAND Flash Memory)
VCCQ is 1.7V to 1.95V or 2.7V to 3.6V (for Interface)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Memory Size | 4GByte |
| Interface Type | eMMC |
| Package Type | FBGA |
| Pin Count | 153 |
| Organisation | 4G x 8 |
| Mounting Type | Surface Mount |
| Cell Type | NAND |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Length | 11.5mm |
| Height | 1mm |
| Width | 13mm |
| Dimensions | 11.5 x 13 x 1mm |
| Number of Bits per Word | 8bit |
| Minimum Operating Temperature | 40°C |
| Number of Words | 4GB |
| Series | ASFC4 |
| Maximum Operating Temperature | 85°C |
