RS PRO RSF66 Series Internal Nitrile Rubber (NBR) Float Switch, 240 V ac ac Max, 120 V dc dc Max

查看所有Float Switches
暫時無法供應
抱歉，我們不知道何時會到貨。
RS庫存編號:
191-9506
Distrelec 貨號:
304-04-169
製造商:
RS PRO
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

RS PRO

Product Type

Float Switch

Mount Type

Internal

Housing Material

Polyphenylene Sulphide

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

85°C

Maximum AC Voltage

240V ac

Maximum DC Voltage

120V dc

Maximum Current

600mA

Gasket Material

Nitrile Rubber (NBR)

Standards/Approvals

No

Series

RSF66

Hazardous Area Certification

No

COO (Country of Origin):
CN

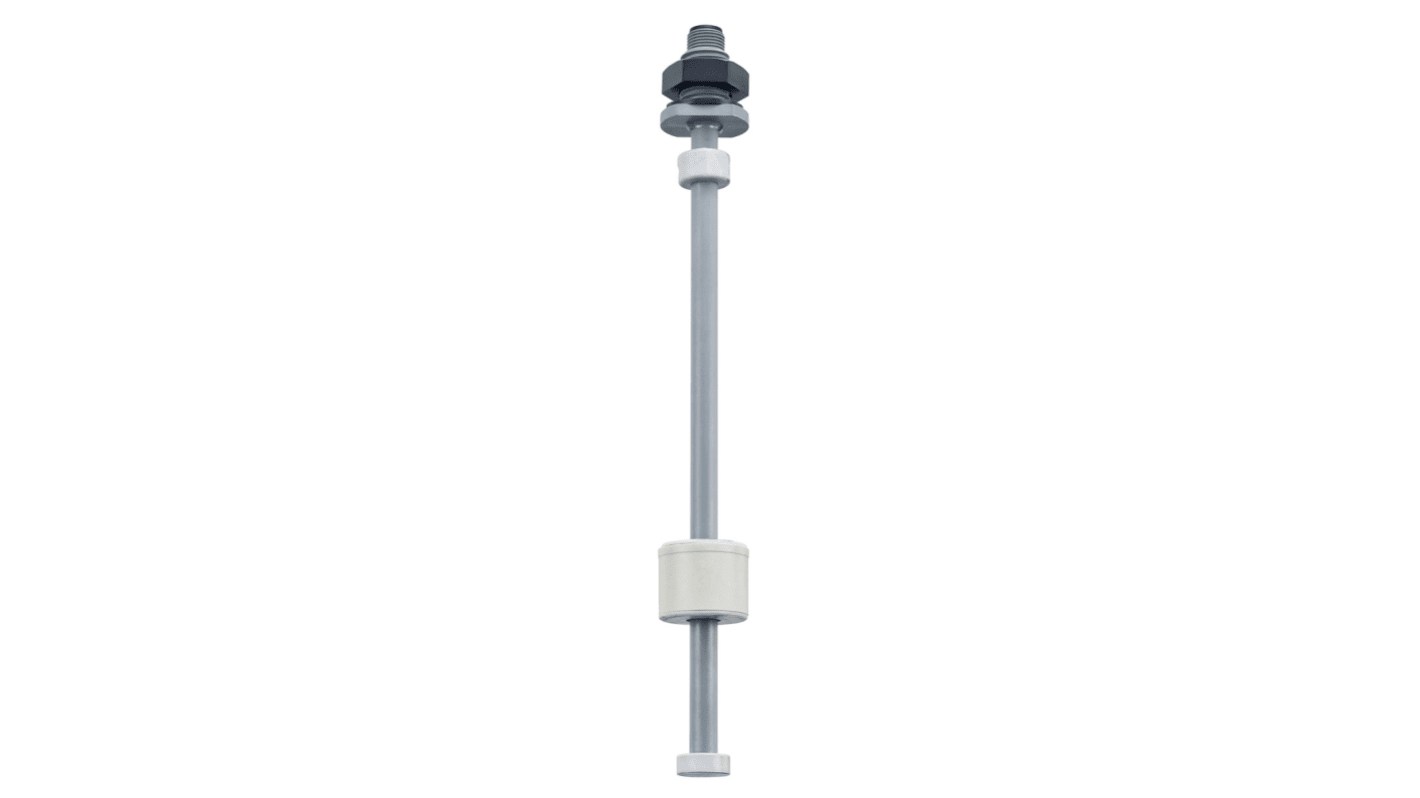

RS PRO Internal Mounting Float Switch


The RS PRO 600mA internal mounting float switch has a total length of 202mm and a maximum switching voltage of 240VAC/120VDC. It has a polyphenylene sulphide body and nitrile gasket. The dual float version can be used for controlling the emptying of tanks via electromechanical relays. This float switch series is designed to offer several switching options to meet a variety of system requirements.

Features and Benefits


• High & low level switching

• Internal mount

• M12 4-pin connector

• Operating temperature ranges between -10°C and +85°C

• PPS material

• Version for emptying control

Applications


• PLC control of processes

• The dual float version can be used for controlling emptying of tanks via electromechanical relays
