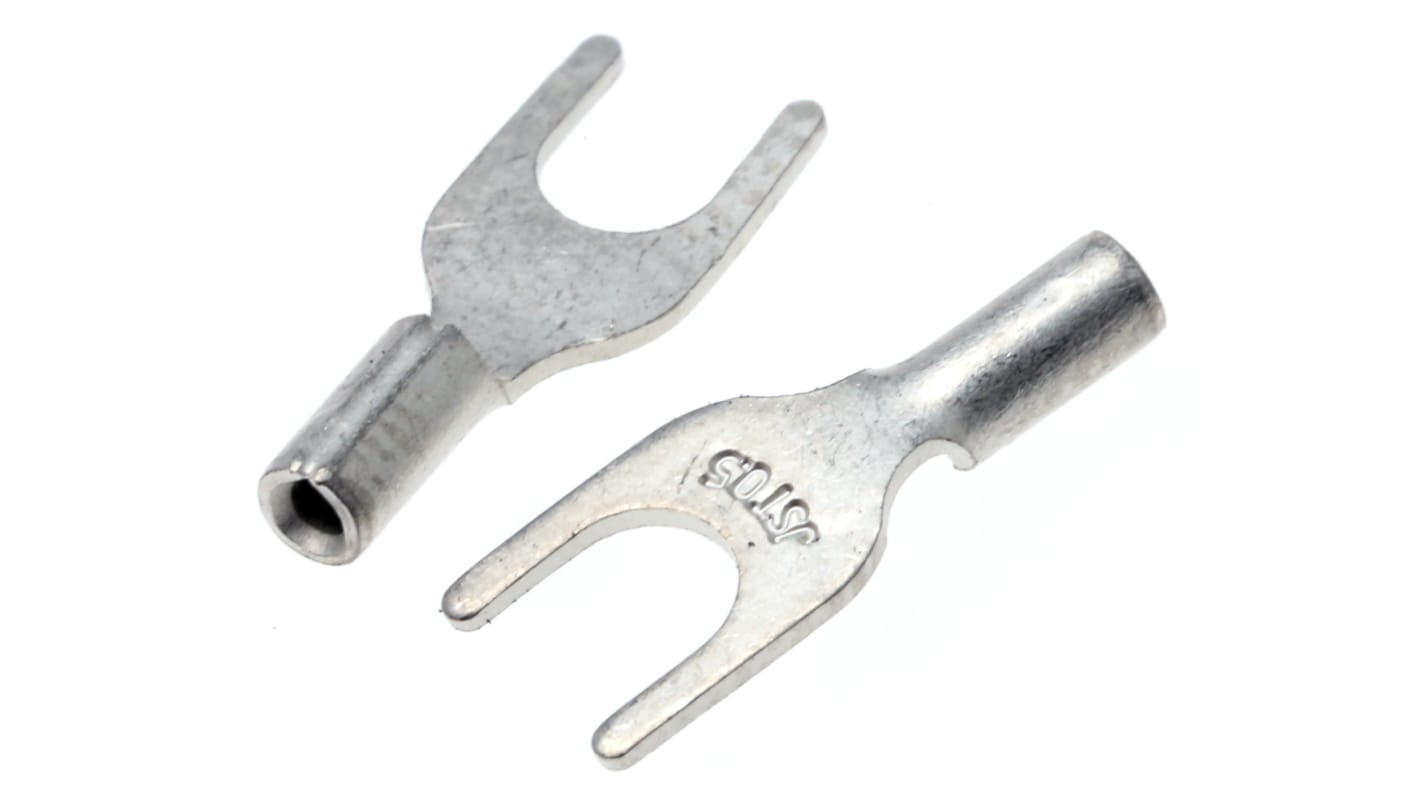

JST Uninsulated Crimp Spade Connector, 0.2mm² to 0.5mm², 26AWG to 22AWG, 3mm Stud Size
- RS庫存編號:
- 604-8086
- 製造零件編號:
- 0.5-3A
- 製造商:
- JST
73 現貨庫存，可於3工作日發貨。
已增加
單價 毎包：100 个
HK$51.28
| Bag(s) | Per Bag | Per unit* |
| 1 - 9 | HK$51.28 | HK$0.513 |
| 10 - 49 | HK$49.23 | HK$0.492 |
| 50 - 99 | HK$47.18 | HK$0.472 |
| 100 + | HK$46.15 | HK$0.462 |
| * 參考價格 | ||
- RS庫存編號:
- 604-8086
- 製造零件編號:
- 0.5-3A
- 製造商:
- JST
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
Uninsulated Crimp Spade Terminals, JST
A range of uninsulated crimp spade tongue terminals from JST to suit stud sizes from 3 to 6mm and wire sizes from 0.2 to 6.6mm² (26 to 10 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.
Standards
• UL Listed E42024
• CSA Certified LR20812
• RoHS compliant
• CSA Certified LR20812
• RoHS compliant
JST Terminals
規格
Attribute | Value |
|---|---|
| Insulation | Uninsulated |
| Width | 5mm |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Stud Size | 3mm |
| Overall Length | 12.5mm |
