Metrix Function Generator, 0.001 Hz Min, 10 MHz Max FM Modulation

查看所有Function Generators

小計（1 件）*

HK$7,116.10

Add to Basket
選擇或輸入數量
库存信息目前无法访问 - 请稍候查看
單位
每單位
1 +HK$7,116.10

* 參考價格

RS庫存編號:
879-3826
製造零件編號:
GX310
製造商:
Metrix
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Metrix

Product Type

Function Generator

Maximum Frequency Range Sinewave

10MHz

Minimum Frequency Range Sinewave

0.001Hz

FM Modulation

Yes

Time Base Accuracy

±20 ppm

Digital Frequency

Yes

Length

190mm

Maximum Frequency Range Triangle/Saw

2MHz

Weight

2.9kg

Standards/Approvals

IEC/EN

Height

116mm

Width

180 mm

Minimum Frequency Range Triangle/Saw

0.001Hz

Input Impedance

10kΩ

Minimum Operating Temperature

0°C

Maximum Operating Temperature

40°C

Digital Amplitude and Offset

Yes

Plug Type

RJ45

Interface Type

USB, Ethernet

Internal Linear and Log Sweep

Yes

豁免

COO (Country of Origin):
FR

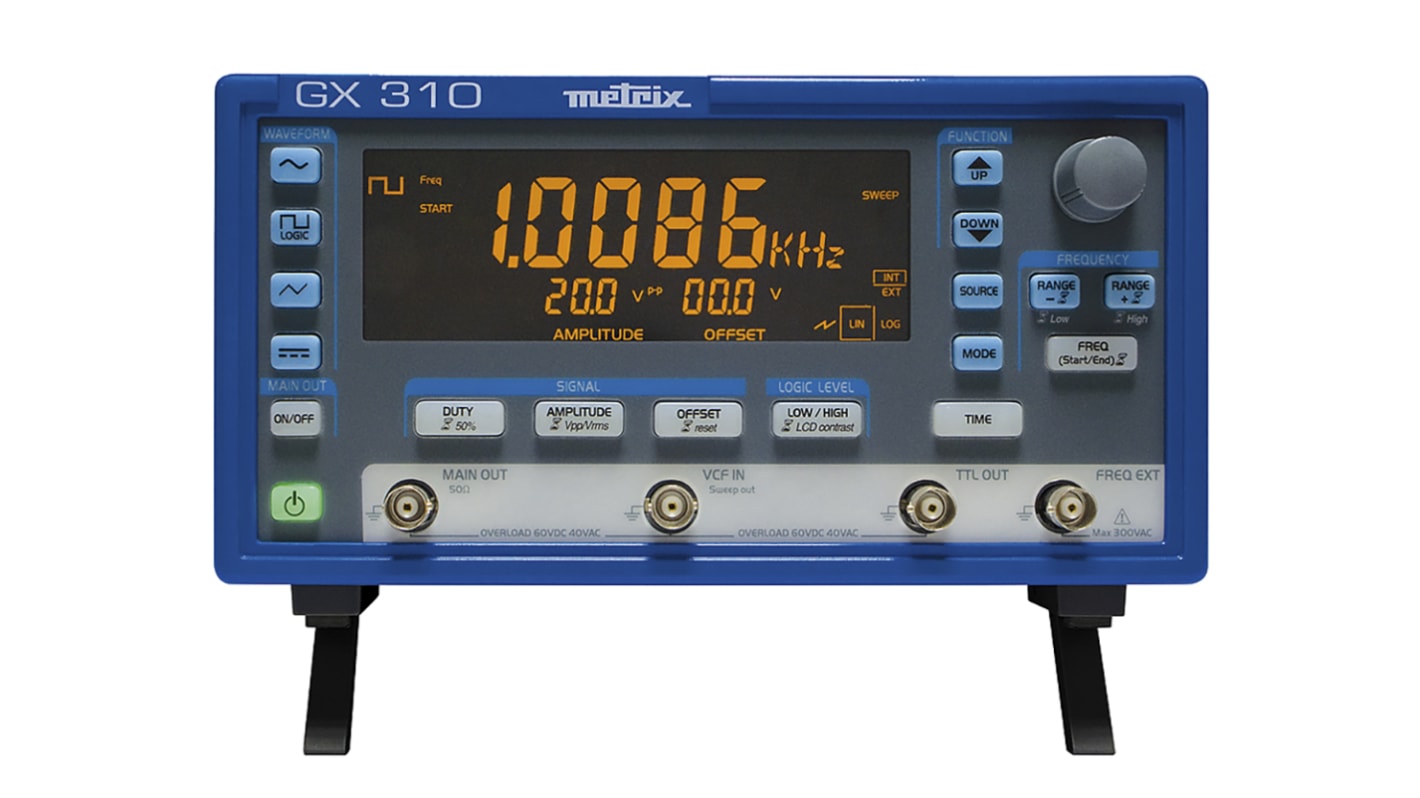

Metrix GX Series Function Generators GX 305, GX 310, GX 320


Metrix GX Series function generators are versatile, high-performance instruments for education, scientific research and electronic product design. They can be used to generate a variety of signals including waveforms, sine, triangle, square & LOGIC and TTL output. Metrix GX uses Direct Digital Synthesis (DDS) technology which greatly enhances frequency accuracy and stability. Alternating standard form wave generator models 5MHz, GX 305 ( 879-3823 ) and 10MHz, GX 310 ( 879-3826 ) are designed for education & training, R&D and test & production. Model 20MHz, GX 320 ( 879-3839 ) has additional functions including: internal and external AM & FM modulation, GATE, BURST, FSK and PSK; adjustable phase synchronisation of several generators in a cascade arrangement; storage of 15 complete instrument configurations. Models 10MHz GX 310-P ( 879-3820 ) and 20MHz GX 320-E ( 879-3832 ) are fully-programmable, with SCPI standard USB link (USB cable supplied). GX 320-E also has an Ethernet link (Ethernet cable supplied).

DDS technology and frequency accuracy of ± 20 ppm

Frequency adjustment stable to the nearest digit

"LOGIC signal" function for direct adjustment of high and low levels

LIN or LOG sweep, triangle or sawtooth, with adjustable duration from 10 ms to 100 s

LCD screen large (125mm x 45mm) and easy-to-read (5 digits, 20mm high)

100 MHz frequency meter, 300 V CAT I

Metrix


Supplied with

Mains power lead, CD-Rom containing operating manual in 5 languages, programming manual (in French and English), Labwindows CVI / LabView drivers, USB A/B cable (GX 310-P & GX 320-E only), straight Ethernet cable (GX 320-E only)
