RS PRO ZYRAD 500 Series Black 2.1 mm² Hook Up Wire, 14 AWG, 50, 100 m, Polyethylene
- RS庫存編號:
- 885-0850
- 製造商:
- RS PRO
小計（1 卷，共 100 米）*
HK$1,773.00
訂單超過 HK$250.00 免費送貨
有庫存
- 72 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 + | HK$1,773.00 | HK$17.73 |
* 參考價格
- RS庫存編號:
- 885-0850
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 2.1mm² | |
| Jacket Colour | Black | |
| American Wire Gauge | 14AWG | |
| Core Strands | 50 | |
| Cable Length | 100m | |
| Voltage | 600V | |
| Outside Diameter | 3.67mm | |
| Maximum Operating Temperature | 150°C | |
| Conductor Material | Tinned Copper | |
| Standards/Approvals | CSA 1503, RoHS Certified, UL 3288, UL 3289, UL Listed | |
| Sub Type | ZYRAD | |
| Cable Type | Stranded | |
| Jacket Material | Polyethylene | |
| Fire Behaviour | Flame Retardant | |
| Series | ZYRAD 500 | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 2.1mm² | ||
Jacket Colour Black | ||
American Wire Gauge 14AWG | ||
Core Strands 50 | ||
Cable Length 100m | ||
Voltage 600V | ||
Outside Diameter 3.67mm | ||
Maximum Operating Temperature 150°C | ||
Conductor Material Tinned Copper | ||
Standards/Approvals CSA 1503, RoHS Certified, UL 3288, UL 3289, UL Listed | ||
Sub Type ZYRAD | ||
Cable Type Stranded | ||
Jacket Material Polyethylene | ||
Fire Behaviour Flame Retardant | ||
Series ZYRAD 500 | ||
- COO (Country of Origin):
- CN

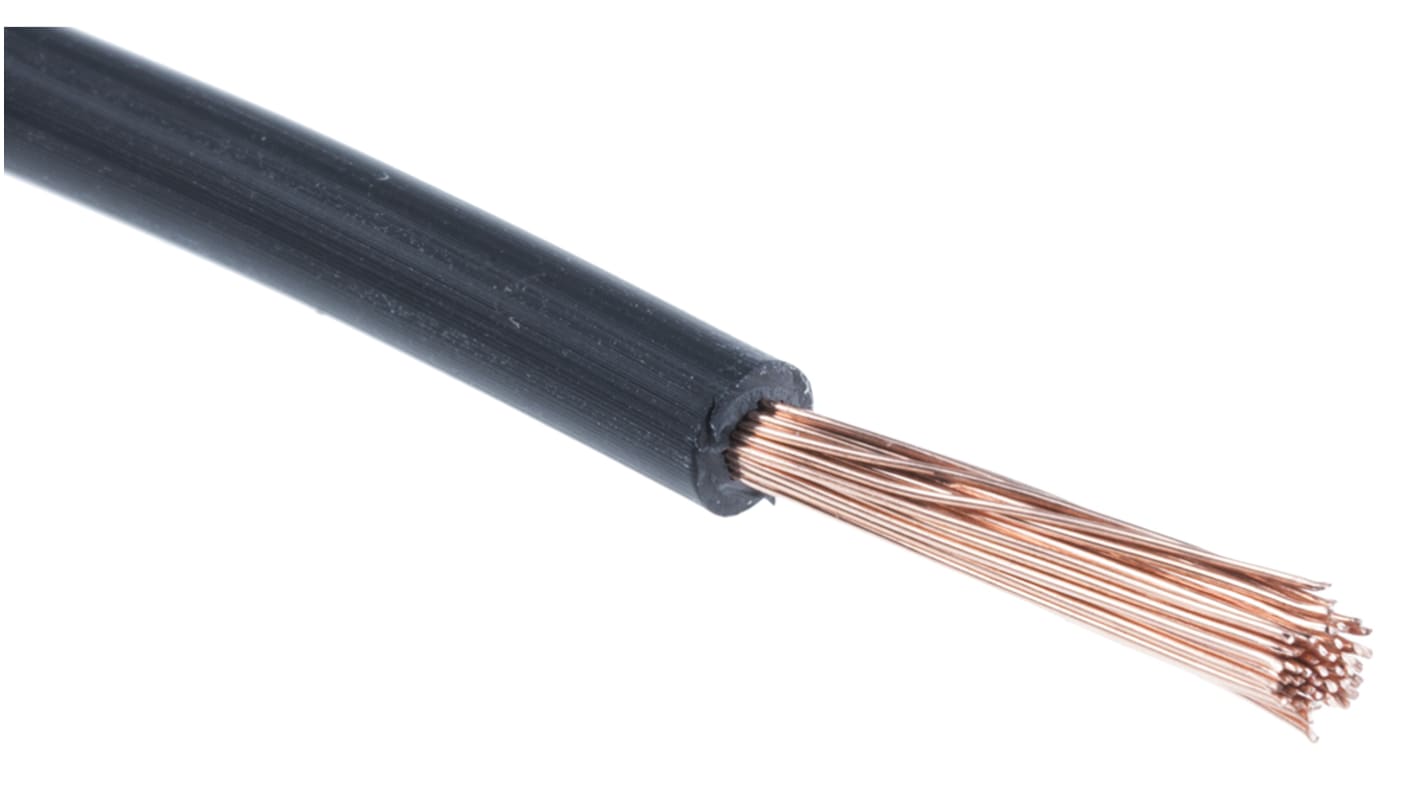

RS PRO Equipment Wire, Black, 2.1 mm², 100 m
Keep this equipment wire in your workshop for internal electrical wiring jobs. You can use this wire to connect power systems to each other or to extend the cabling of a piece of equipment. The wire comes on a reel so it's easy to dispense for use as and when you need.
This cable comes with copper wiring that can withstand hot temperatures without excessive ageing. It's insulated with an abrasion-resistant polyvinyl-chloride (PVC) sheath, so it can handle bumps and knocks while still protecting the unit's internal wiring.
For safety in the event of a fire, the cable's jacket is also insulated with flame-retardant cross-linked polyolefin (XLPO). The product is Restriction of Hazardous Substances (RoHS) compliant so you can be sure it contains only minimal amounts of any harmful materials.
Features and Benefits
• Wire size of 14 American Wire Gauge (AWG)
• Single-core cable
• Tinned-copper conductor material
• 50 core strands of 0.25 mm
• Cross-sectional area of 2.1 mm²
• Cross-linked polyolefin (XLPO) insulation material
• Insulation wall thickness of 0.8 mm
• Length of 100 m
• Maximum operating temperature of +150°C
• Outer diameter of 3.67 mm
• Black sheath colour
• Unshielded
• Restriction of Hazardous Substances (RoHS) compliant
• Underwriters' Laboratory (UL) 3288 and 3289 compliant
• Canadian Standards Association (CSA) 1503 compliant
• Voltage rating of 600 V
• UL3289 wire style
• ZYRAD type
