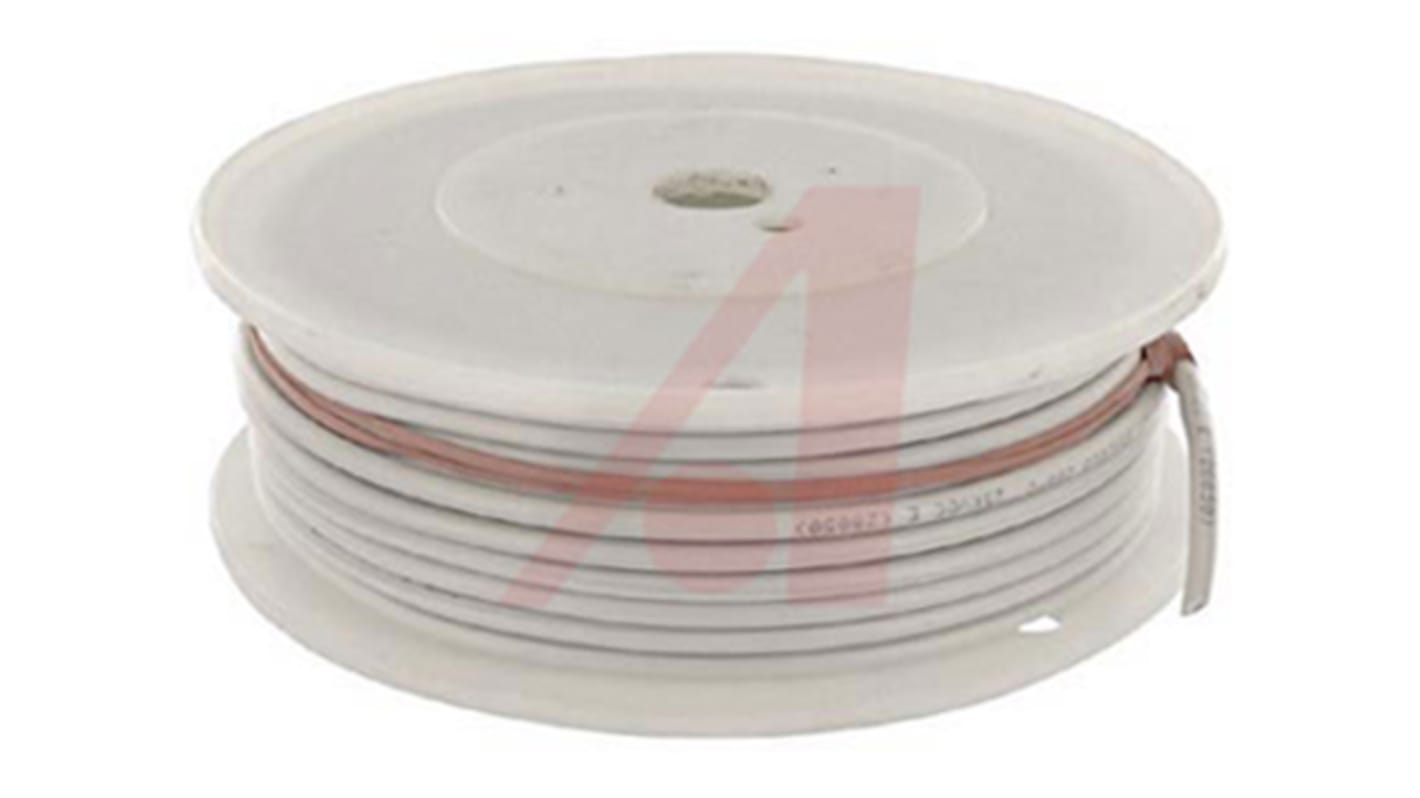

Alpha Wire Hook-up Wire Silicone Series White 0.52 mm² Hook Up Wire, 20 AWG, 19/0.2 mm, 30.5m, Silicone Insulation,
- RS庫存編號:
- 904-3807
- 製造零件編號:
- 39X2025 WH005
- 製造商:
- Alpha Wire
Price 个**
HK$3,172.70
當前暫無庫存，可於2025/12/4發貨，3 工作日送達。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 + | HK$3,172.70 |
** 參考價格
- RS庫存編號:
- 904-3807
- 製造零件編號:
- 39X2025 WH005
- 製造商:
- Alpha Wire
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Alpha Wire | |
| Cross Sectional Area | 0.52 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 20 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 19/0.2 mm | |
| Length | 30.5m | |
| Insulation Material | Silicone | |
| Outer Diameter | 4.22mm | |
| Voltage Rating | 25 kV | |
| Maximum Operating Temperature | +200°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Silver Plated Copper | |
| Wire Style | UL3239 | |
| Standards Met | CA Prop 65, RoHS Compliant, UL VW-1 | |
| Series | Hook-up Wire Silicone | |
| Insulation Wall Thickness | 1.6mm | |
| Shield Type | None | |
| Size of Strands | 0.2 mm | |
| Number of Strands | 19 | |
選取全部 | ||
|---|---|---|
品牌 Alpha Wire | ||
Cross Sectional Area 0.52 mm² | ||
Sheath Colour White | ||
American Wire Gauge 20 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 19/0.2 mm | ||
Length 30.5m | ||
Insulation Material Silicone | ||
Outer Diameter 4.22mm | ||
Voltage Rating 25 kV | ||
Maximum Operating Temperature +200°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Silver Plated Copper | ||
Wire Style UL3239 | ||
Standards Met CA Prop 65, RoHS Compliant, UL VW-1 | ||
Series Hook-up Wire Silicone | ||
Insulation Wall Thickness 1.6mm | ||
Shield Type None | ||
Size of Strands 0.2 mm | ||
Number of Strands 19 | ||
