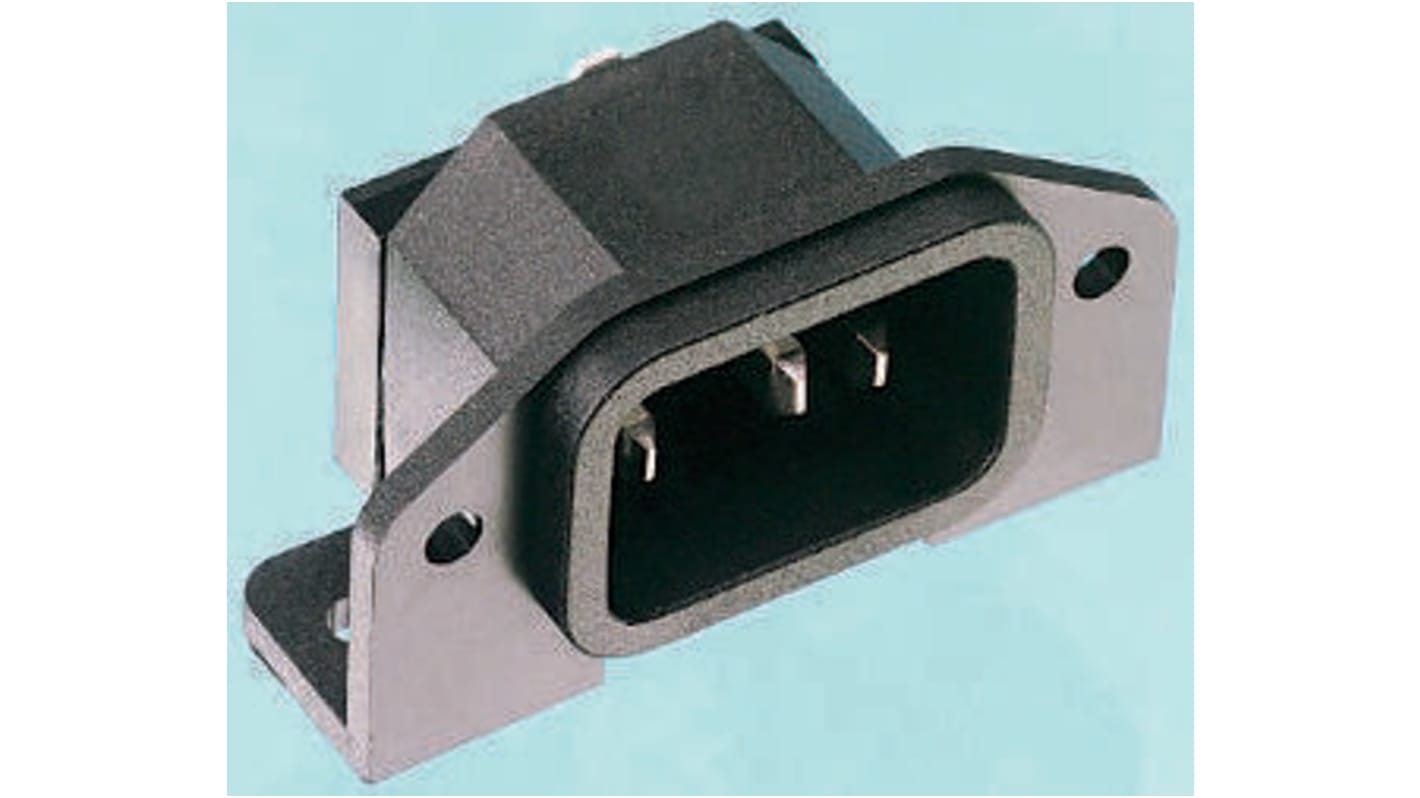

PCB mounting (screw or rivet) suitable for flow wave soldering 240Vac/10A rated, compliant to BS 4491 Flammability rating UL94V-0 Kite mark licence no 6745 Version with pin cover also available (stock no. 261-5840)
Note
All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C
Approvals
UL recognised component, CSA Certified, BSI, IMQ, VDE, SEMKO
Approvals
UL recognised component, CSA Certified, BSI, IMQ, VDE, SEMKO
Attribute
Value
IEC Connector Type
C14
Mounting Type
Panel Mount, PCB Mount
Gender
Male
Current Rating
10A
Body Orientation
Right Angle
Termination Method
Solder
Standards Met
BSI, CSA certified, IMQ, SEMKO, UL recognised, VDE
