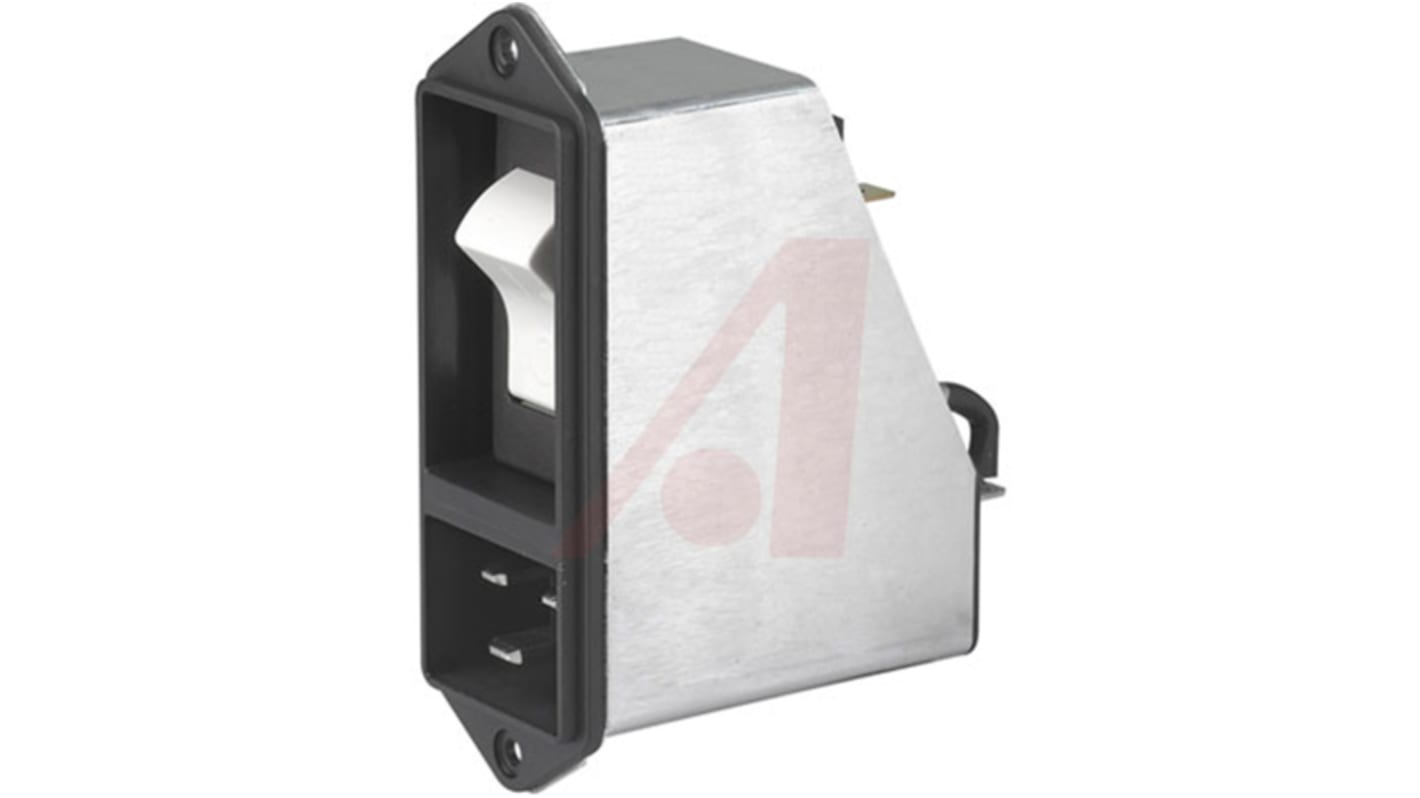

Schurter C20 Panel Mount IEC Connector Male, 20A, 250 V
- RS庫存編號:
- 870-3476
- 製造零件編號:
- EF12.0572.1110.01
- 製造商:
- Schurter
- RS庫存編號:
- 870-3476
- 製造零件編號:
- EF12.0572.1110.01
- 製造商:
- Schurter
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
EF12 Series
Schurter EF12 series C14 power entry modules are a high performance IEC inlet that feature a line filter and type TA45 circuit breaker. The EF12 series are designed to be panel mounted with screw-on mountings from the front.
Panel mount
Quick connect terminals 6.3 x 0.8 mm
TA45 Circuit breaker
EMC-Shielded
Compact design
Standard or medical versions available
Quick connect terminals 6.3 x 0.8 mm
TA45 Circuit breaker
EMC-Shielded
Compact design
Standard or medical versions available
Schurter Range
Panel mount, IEC inlet plugs with integral mains filter, ultra compact design. Fuse holders accept Ø5x20mm fuses.
Note
The fuse drawer is not included and must be ordered separately. Suitable for Ø5x20mm fuse size.
規格
Attribute | Value |
|---|---|
| IEC Connector Type | C20 |
| Mounting Type | Panel Mount |
| Gender | Male |
| Current Rating | 20A |
| Body Orientation | Straight |
| Termination Method | Quick Connect |
| Switch Type | 2 Pole |
| Number of Fuses | None |
| Voltage Rating | 250 V |
