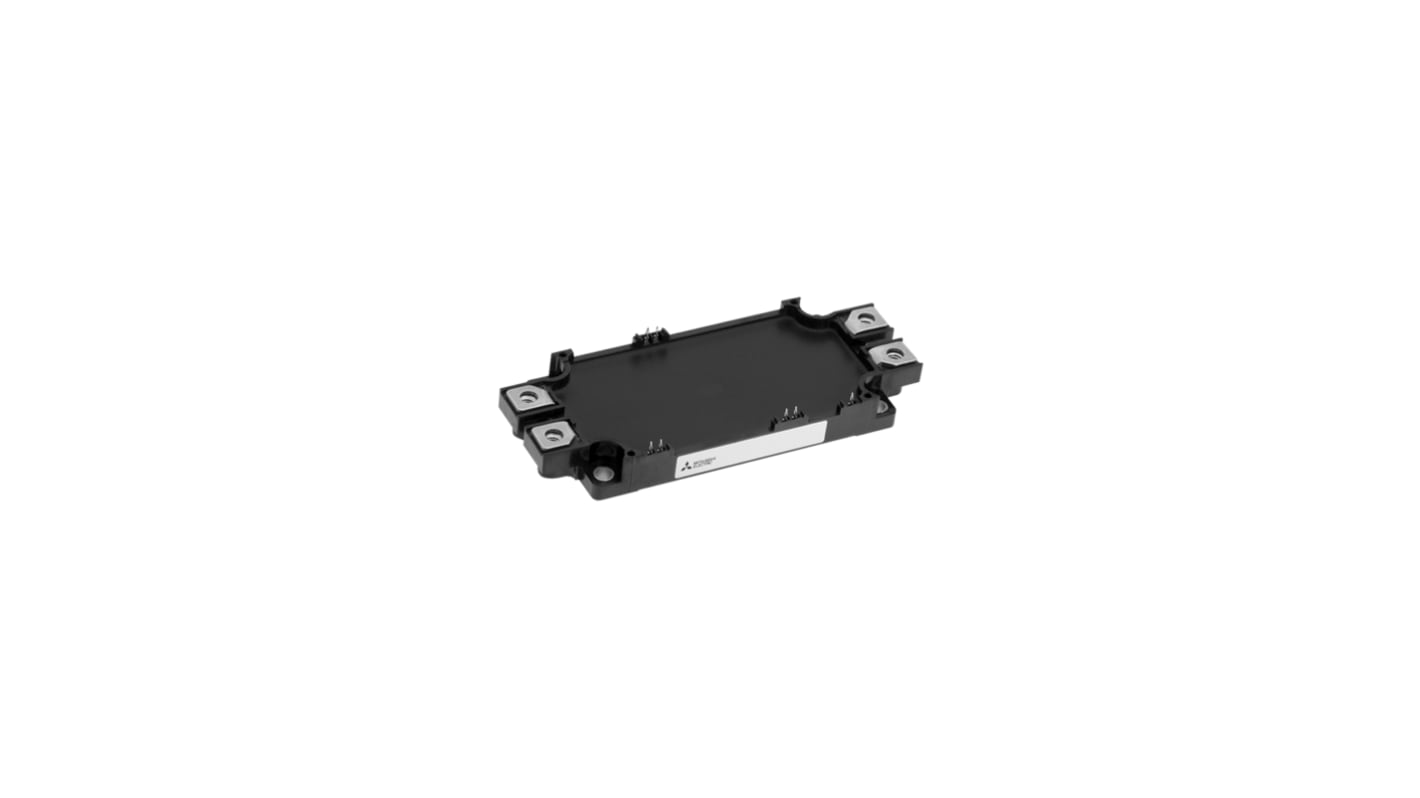

Mitsubishi Electric CM300DX-13T#300G IGBT Module, 300 A 600 V, 11-Pin 122 x 62 mm, Through Hole
- RS庫存編號:
- 233-2433
- 製造零件編號:
- CM300DX-13T#300G
- 製造商:
- Mitsubishi Electric
可享批量折扣
查看批量定價選項小計（1 盒，共 10 件）*
HK$22,283.90
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2027年3月08日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每盒* |
|---|---|---|
| 10 - 40 | HK$2,228.39 | HK$22,283.90 |
| 50 + | HK$2,005.55 | HK$20,055.50 |
* 參考價格
- RS庫存編號:
- 233-2433
- 製造零件編號:
- CM300DX-13T#300G
- 製造商:
- Mitsubishi Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Mitsubishi Electric | |
| Product Type | IGBT Module | |
| Maximum Continuous Collector Current Ic | 300A | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Number of Transistors | 2 | |
| Maximum Power Dissipation Pd | 1.15kW | |
| Package Type | 122 x 62 mm | |
| Mount Type | Through Hole | |
| Pin Count | 11 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.75V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Operating Temperature | 150°C | |
| Length | 152mm | |
| Series | CM300DX-13T | |
| Height | 17mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Mitsubishi Electric | ||
Product Type IGBT Module | ||
Maximum Continuous Collector Current Ic 300A | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Number of Transistors 2 | ||
Maximum Power Dissipation Pd 1.15kW | ||
Package Type 122 x 62 mm | ||
Mount Type Through Hole | ||
Pin Count 11 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.75V | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Operating Temperature 150°C | ||
Length 152mm | ||
Series CM300DX-13T | ||
Height 17mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Mitsubishi Electric IGBT modules of the 7th generation (called T-series) maximum collector-emitter voltage is 600V and collector current is 300A.
Flat base type
Copper-plating tab terminal
RoHS Directive compliant
Tin Plating pin terminal
