Infineon FF750R17ME7DB11BPSA1 IGBT Module, 750 A 1700 V EconoDUALTM3
- RS庫存編號:
- 250-0225
- 製造零件編號:
- FF750R17ME7DB11BPSA1
- 製造商:
- Infineon

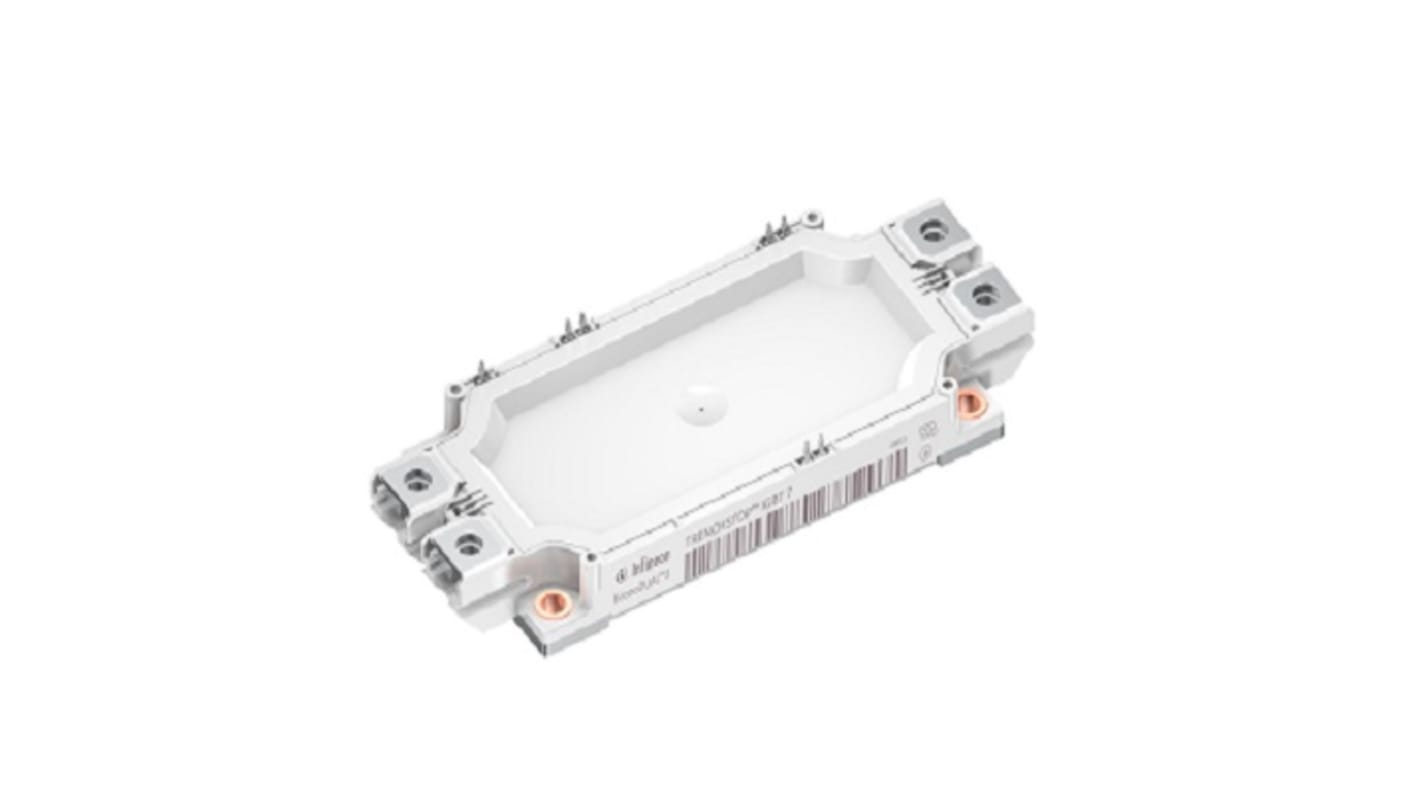

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 件）*
HK$2,033.40
訂單超過 HK$250.00 免費送貨
有庫存
- 7 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 1 | HK$2,033.40 |
| 2 - 3 | HK$1,992.70 |
| 4 - 5 | HK$1,952.90 |
| 6 - 7 | HK$1,913.80 |
| 8 + | HK$1,875.60 |
* 參考價格
- RS庫存編號:
- 250-0225
- 製造零件編號:
- FF750R17ME7DB11BPSA1
- 製造商:
- Infineon
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Infineon | |
| Product Type | IGBT Module | |
| Maximum Continuous Collector Current Ic | 750A | |
| Maximum Collector Emitter Voltage Vceo | 1700V | |
| Number of Transistors | 2 | |
| Maximum Power Dissipation Pd | 20mW | |
| Package Type | EconoDUALTM3 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.1V | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Series | FF | |
| Standards/Approvals | 60749 and 60068, IEC 60747 | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Infineon | ||
Product Type IGBT Module | ||
Maximum Continuous Collector Current Ic 750A | ||
Maximum Collector Emitter Voltage Vceo 1700V | ||
Number of Transistors 2 | ||
Maximum Power Dissipation Pd 20mW | ||
Package Type EconoDUALTM3 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.1V | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Series FF | ||
Standards/Approvals 60749 and 60068, IEC 60747 | ||
Automotive Standard No | ||
The Infineon EconoDUAL™ 3 1700 V, 750 A dual TRENCHSTOP™ IGBT7 module with enlarged emitter controlled 7 diode, NTC and PressFIT contact technology.
Integrated temperature sensor
High current density
Low VCE, sat
Overload operation up to 175°C
TRENCHSTOPTM IGBT7
VCE, sat with positive temperature coefficient
Enlarged diode for regenerative operation
High power density
Isolated base plate
PressFIT contact technology
Standard housing
