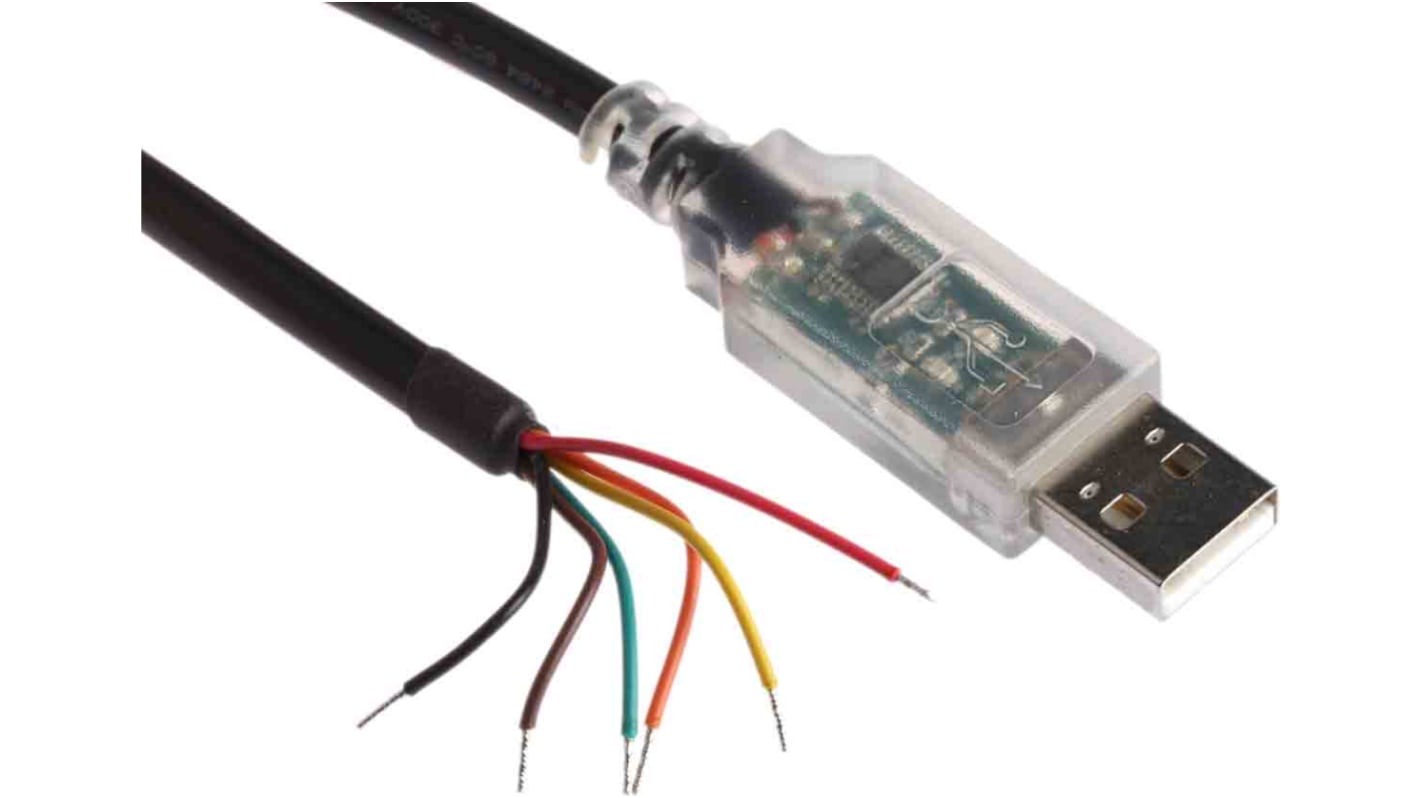

FTDI Chip RS232 USB A Male to Cable End Converter Cable

查看所有Interface Adapters & Converters

小計（1 件）*

HK$376.30

Add to Basket
選擇或輸入數量
有庫存
  • 23 件準備從其他地點送貨
  • 加上 100 件從 2026年4月01日 起發貨
  • 加上 100 件從 2026年6月24日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$376.30

* 參考價格

RS庫存編號:
730-0152
製造零件編號:
USB-RS232-WE-5000-BT_3.3
製造商:
FTDI Chip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

FTDI Chip

Bus Type

RS232

Connector A

USB A

Connector A Gender

Male

Connector B

Cable End

USB Standard

USB 2.0

USB to RS-232 Converter Cables, FTDI Chip


These cables provide a fast and simple method to convert a serial RS-232 signal to USB. The USB connector contains a small circuit board featuring the FTDI FT232RQ serial UART interface IC to handle all the USB signalling and protocols. There are two LEDs to indicate data being received and transmitted. They have a maximum signalling rate of 1Mbaud. These converters are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux: all of which are available, royalty-free from FTDI website. http://www.ftdichip.com

The other end of the cable has bare tinned wires and can be customised to your needs using various connectors. The cables are available in two lengths and with an optional power supply output of +3.3V or +5Vdc

Features and Benefits.


No Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_0.0 - (RS 687-7828), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_0.0 - (RS 687-7815), cable length 5 m

+3.3V Optional Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_3.3 - (RS 730-0158), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_3.3 - (RS 730-0152), cable length 5 m

+5V Optional Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_5.0 - (RS 687-7821), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_5.0 - (RS 687-7819), cable length 5 m

Typical Applications.


• USB to serial RS232 level converter.
• Upgrading legacy peripherals to USB.
• Interface microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB instrumentation OC interface.
• USB Industrial control.
• USB Password protected file transfers.

Converter Cables Available.


No Voltage Output.

• Stock number 6877828, Part USB-RS232-WE-1800-BT 0.0, black, cable length 1.8m.

• Stock number 6877815, Part USB-RS232-WE-5000-BT 0.0, black, cable length 5 m.

+3.3 V Optional Output Voltage

• Stock number 7300158, Part USB-RS232-WE-1800-BT_3.3, black, cable length 1.8 m.

• Stock number 7300152, Part USB-RS232-WE-5000-BT_3.3, black, cable length 5 m.

+5 V Optional Voltage Output.

• Stock number 6877821, Part USB-RS232-WE-1800-BT 5.0, black, cable length 1.8 m.

• Stock number 6877819, Part USB-RS232-WE-5000-BT 5.0, black, cable length 5 m.

Converter Support Available.


Converters are supported with Microsoft WHQL certified VCP (Virtual Com Port) drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from FTDI website. http://www.ftdichip.com.

Standards

RoHS Compliant

Approvals

FCC, CE

Approvals

FCC, CE, RoHS compliant.
