Phoenix Contact 25-Contact Female Interface Module, D-Sub Connector, DIN Rail, 2.5A

RS庫存編號:: 648-3849
Distrelec 貨號:: 148-01-514
製造零件編號:: 2293682
製造商:: Phoenix Contact

Phoenix Contact 25-Contact Female Interface Module, D-Sub Connector, DIN Rail, 2.5A

小計（1 件）*

HK$1,700.90

库存信息目前无法访问 - 请稍候查看

單位	每單位
1 +	HK$1,700.90

* 參考價格

RS庫存編號:: 648-3849
Distrelec 貨號:: 148-01-514
製造零件編號:: 2293682
製造商:: Phoenix Contact

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Phoenix Contact
	Gender	Female
	Product Type	Interface Module
	Wire Size	14, 24AWG
	Current	2.5A
	Orientation	Straight
	Number of Contacts	25
	Connector Type	D-Sub
	Mount Type	DIN Rail
	Test Proof Voltage	800V ac
	Voltage	25, 60V ac
	Minimum Operating Temperature	-20°C
	Cable CSA	0.2, 2.5mm²
	Maximum Operating Temperature	50°C
	Standards/Approvals	No
	Width	50mm
	Depth	45mm
	Length	90mm

	選取全部
	品牌 Phoenix Contact
	Gender Female
	Product Type Interface Module
	Wire Size 14, 24AWG
	Current 2.5A
	Orientation Straight
	Number of Contacts 25
	Connector Type D-Sub
	Mount Type DIN Rail
	Test Proof Voltage 800V ac
	Voltage 25, 60V ac
	Minimum Operating Temperature -20°C
	Cable CSA 0.2, 2.5mm²
	Maximum Operating Temperature 50°C
	Standards/Approvals No
	Width 50mm
	Depth 45mm
	Length 90mm

COO (Country of Origin):: DE

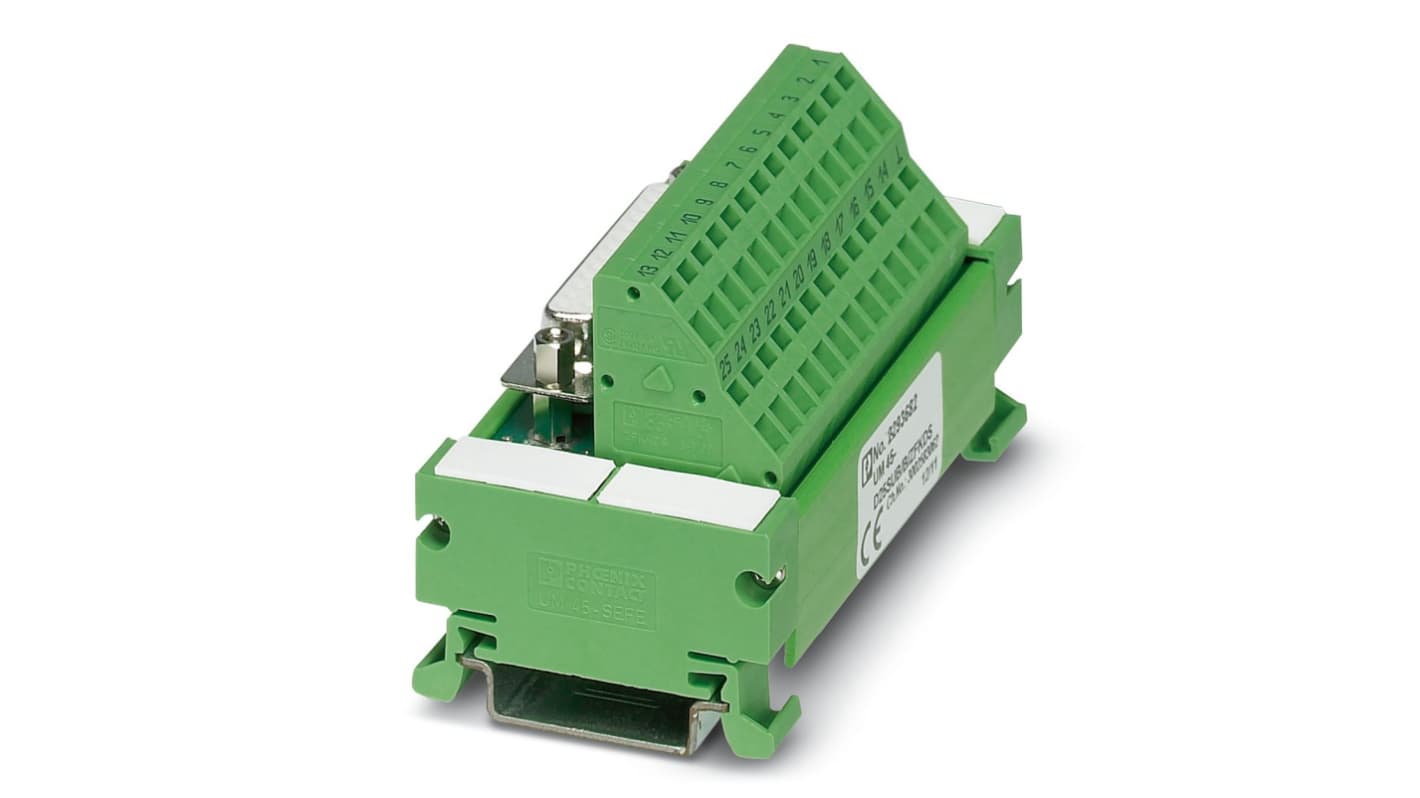

Wiring Module UM 45-D with Tension Spring Connection

Varioface compact line modules connect D-Sub socket boards or socket connectors with tension spring connection terminals

For mounting on NS 35 / 7.5

Plug housing is secured with 2 4-40UNC retaining screws

Side components equipped with identification labels

For earth contact of D-subminiature socket boards or socket connectors, the metallic connector shell is linked directly to a connection terminal

Phoenix Contact 25-Contact Female Interface Module, D-Sub Connector, DIN Rail, 2.5A

Wiring Module UM 45-D with Tension Spring Connection
