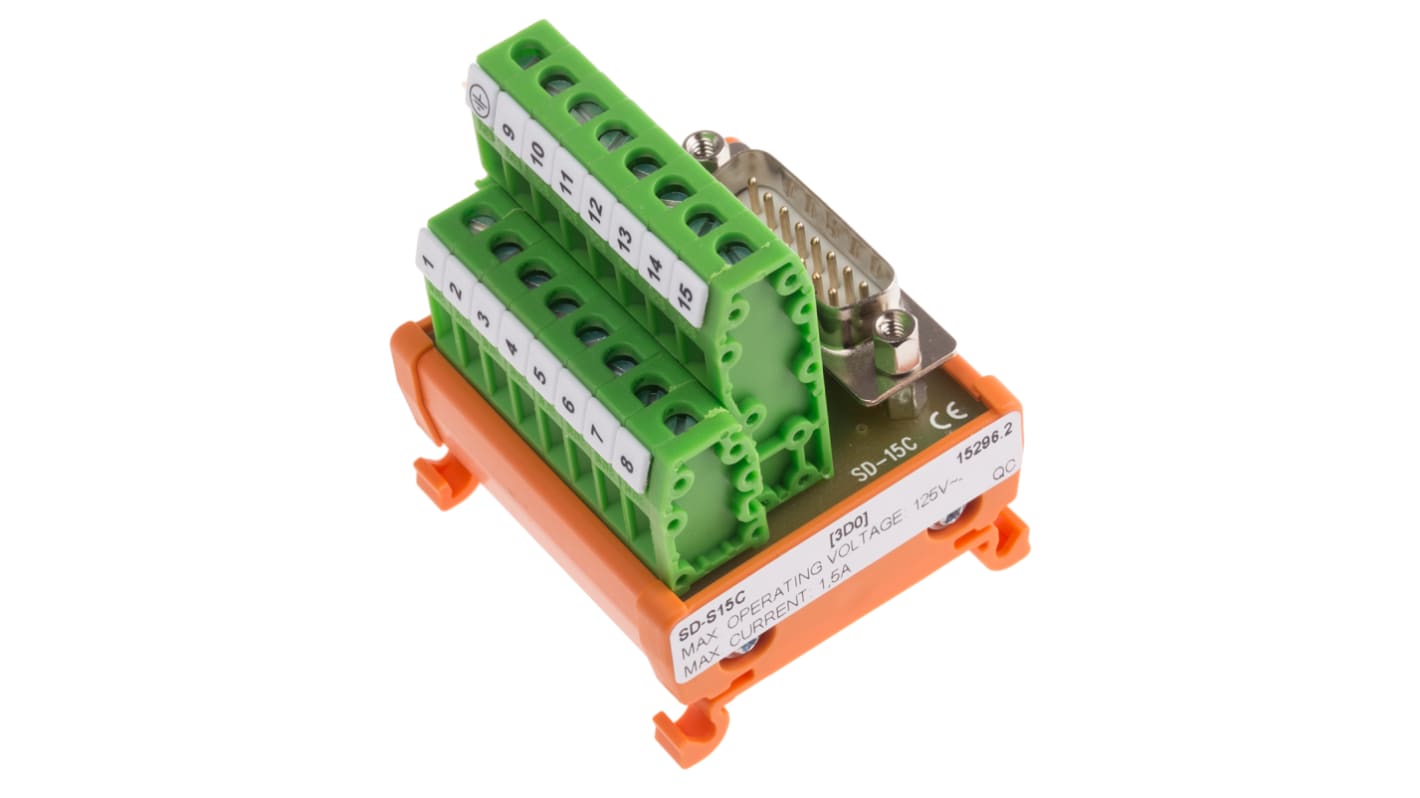

RS PRO 15-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1.5A
- RS庫存編號:
- 665-9709
- 製造商:
- RS PRO
可享批量折扣
小計（1 件）*
HK$506.10
訂單超過 HK$250.00 免費送貨
有庫存
- 12 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$506.10 |
| 5 + | HK$416.50 |
* 參考價格
- RS庫存編號:
- 665-9709
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Gender | Male | |
| Wire Size | 22 → 14 AWG | |
| Number of Contacts | 15 | |
| Connector Type | D-sub | |
| Mounting Type | DIN Rail Mount | |
| Test Proof Voltage | 0.6kV | |
| Voltage Rating | 125 V ac/dc | |
| Current Rating | 1.5A | |
| Cable CSA | 0.2 → 2.5mm² | |
| Dimensions | 51 x 61 x 47mm | |
| Depth | 47mm | |
| Length | 51mm | |
| Width | 61mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +50°C | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Gender Male | ||
Wire Size 22 → 14 AWG | ||
Number of Contacts 15 | ||
Connector Type D-sub | ||
Mounting Type DIN Rail Mount | ||
Test Proof Voltage 0.6kV | ||
Voltage Rating 125 V ac/dc | ||
Current Rating 1.5A | ||
Cable CSA 0.2 → 2.5mm² | ||
Dimensions 51 x 61 x 47mm | ||
Depth 47mm | ||
Length 51mm | ||
Width 61mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +50°C | ||
D Subminiature
Interconnect D-Subminiature into screw-clamp terminals
D-sub according to MIL-C-24308 / DIN41652
Compact 47 mm profile
Rail mount on DIN-rail TS35
1.5A current rating per pin
Stripping length, screw/tension spring 6-7mm
Alternative to pure individual wire approach
D-sub according to MIL-C-24308 / DIN41652
Compact 47 mm profile
Rail mount on DIN-rail TS35
1.5A current rating per pin
Stripping length, screw/tension spring 6-7mm
Alternative to pure individual wire approach
RS PRO 15 Pole D-Sub Connector, Male Interface Module, DIN Rail Mounting
Need a reliable D-sub connector for use with your wired connections? Choose this RS PRO 15-pole D-sub connector. It guarantees reliable electrical transmission as it can be connected to secure screw-clamp terminals to hold your conductors firmly in place.
The connector provides an efficient alternative to the pure individual wire approach for establishing connections. It's fast and easy to mount as it's compatible with a DIN TS35 rail.
You can use this unit in your computer systems with conductors stripped to a 6 mm to 7 mm length. It's guaranteed to operate reliably and effectively as it conforms to the German Institute of Standardisation's DIN41652 standards.
The connector provides an efficient alternative to the pure individual wire approach for establishing connections. It's fast and easy to mount as it's compatible with a DIN TS35 rail.
You can use this unit in your computer systems with conductors stripped to a 6 mm to 7 mm length. It's guaranteed to operate reliably and effectively as it conforms to the German Institute of Standardisation's DIN41652 standards.
Features and Benefits
- Cable cross-sectional area (CSA) of 0.2 to 2.5 mm²
- D-sub connector
- Current rating of 1.5 A
- Dimensions of 51 (length) x 61 (width) x 47 mm (depth)
- Male gender
- Maximum operating temperature of +50°C
- Minimum operating temperature of -20°C
- Suitable for mounting on DIN rails
- 15 contacts
- Test-proof voltage of 0.6 kV
- Voltage rating of 125 V AC/DC
- Wire size of 22 to 14 American Wire Gauge (AWG)
