Phoenix Contact 50-Contact Male Interface Module, IDC, FLK Connector, DIN Rail, 1A
- RS庫存編號:
- 802-7974
- 製造零件編號:
- 2322317
- 製造商:
- Phoenix Contact
小計（1 件）*
HK$681.40
訂單超過 HK$250.00 免費送貨
製造商存貨
- 準備從 2026年8月31日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$681.40 |
* 參考價格
- RS庫存編號:
- 802-7974
- 製造零件編號:
- 2322317
- 製造商:
- Phoenix Contact
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Phoenix Contact | |
| Gender | Male | |
| Product Type | Interface Module | |
| Wire Size | 14, 26AWG | |
| Current | 1A | |
| Orientation | Straight | |
| Number of Contacts | 50 | |
| Connector Type | IDC, FLK | |
| Mount Type | DIN Rail | |
| Test Proof Voltage | 0.6kV | |
| Voltage | 60V ac/dc | |
| Cable CSA | 0.14, 1.5mm² | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| Width | 95.9mm | |
| Depth | 56mm | |
| Length | 65.5mm | |
| 選取全部 | ||
|---|---|---|
品牌 Phoenix Contact | ||
Gender Male | ||
Product Type Interface Module | ||
Wire Size 14, 26AWG | ||
Current 1A | ||
Orientation Straight | ||
Number of Contacts 50 | ||
Connector Type IDC, FLK | ||
Mount Type DIN Rail | ||
Test Proof Voltage 0.6kV | ||
Voltage 60V ac/dc | ||
Cable CSA 0.14, 1.5mm² | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
Width 95.9mm | ||
Depth 56mm | ||
Length 65.5mm | ||
- COO (Country of Origin):
- US

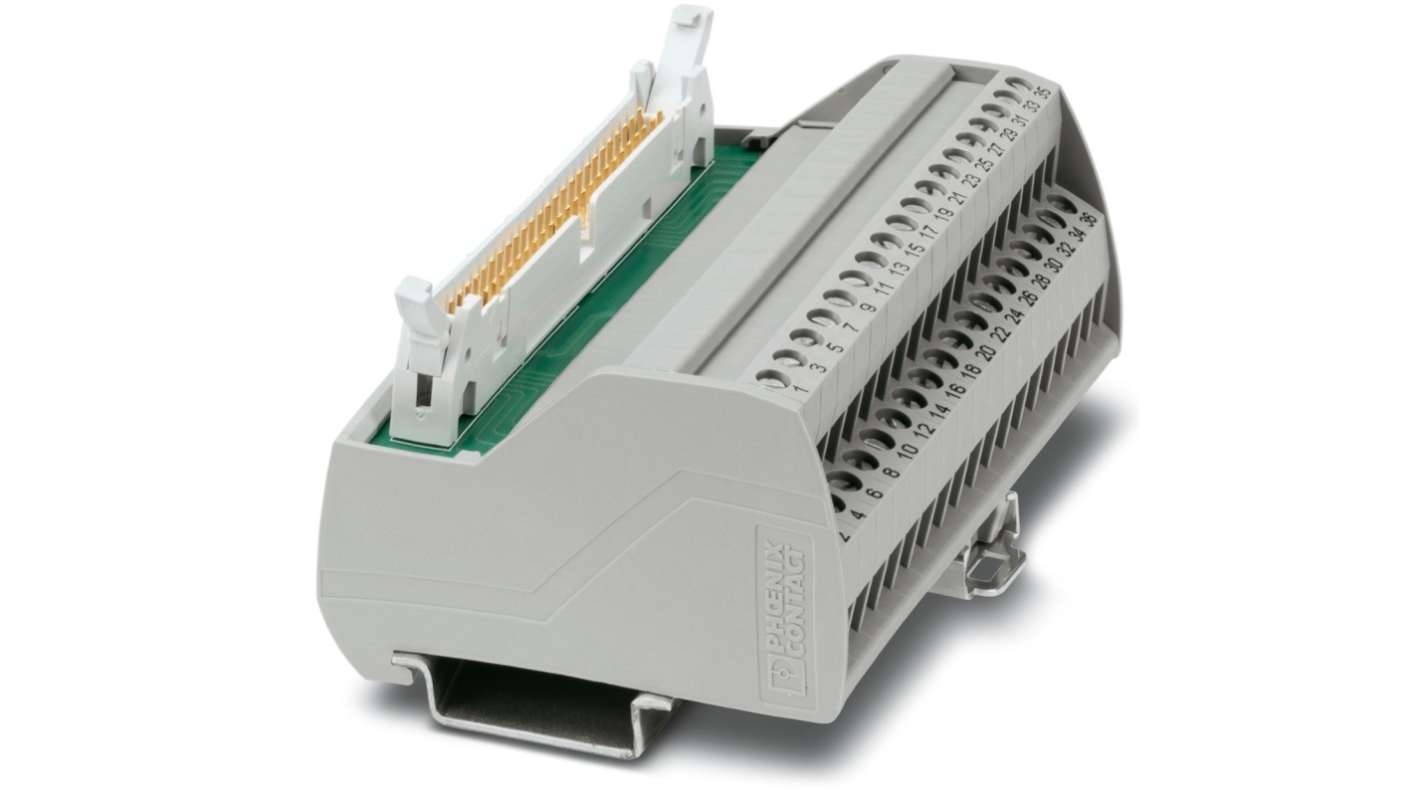

FLK50 Varioface Passive Interface Module
Phoenix Contact FLK50 passive interface modules for interlinking a selection of well known ranges including Siemens Simatic, Modicon TSX Quantum. This also includes series-specific labelling to uniform installation
Screw termination
Integration with applications made simple thanks to series-specific contact labelling
Standards
IEC 60664
IEC 62103
DIN EN 50178
IEC 62103
DIN EN 50178
