Phoenix Contact VIP-3/SC/RJ45 Series 8-Contact Female Interface Module, RJ45 Connector, DIN Rail, 4A

查看所有Interface Modules
暫時無法供應
我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。

替代產品

該產品我們目前不提供。 這是我們推薦的替代產品。

presentation
Phoenix Contact VARIOFACE Professional Series Female Interface Module, DIN Rail, 1A
RS庫存編號
857-1998

个

HK$564.40

RS庫存編號:
802-8019
製造零件編號:
2900701
製造商:
Phoenix Contact
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Phoenix Contact

Gender

Female

Product Type

Interface Module

Wire Size

12, 24AWG

Current

4A

Orientation

Straight

Number of Contacts

8

Connector Type

RJ45

Mount Type

DIN Rail

Test Proof Voltage

48V ac/dc

Voltage

48V ac/dc

Cable CSA

0.2, 2.5mm²

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

50°C

Standards/Approvals

No

Depth

62mm

Width

26.9mm

Length

69mm

Series

VIP-3/SC/RJ45

COO (Country of Origin):
US

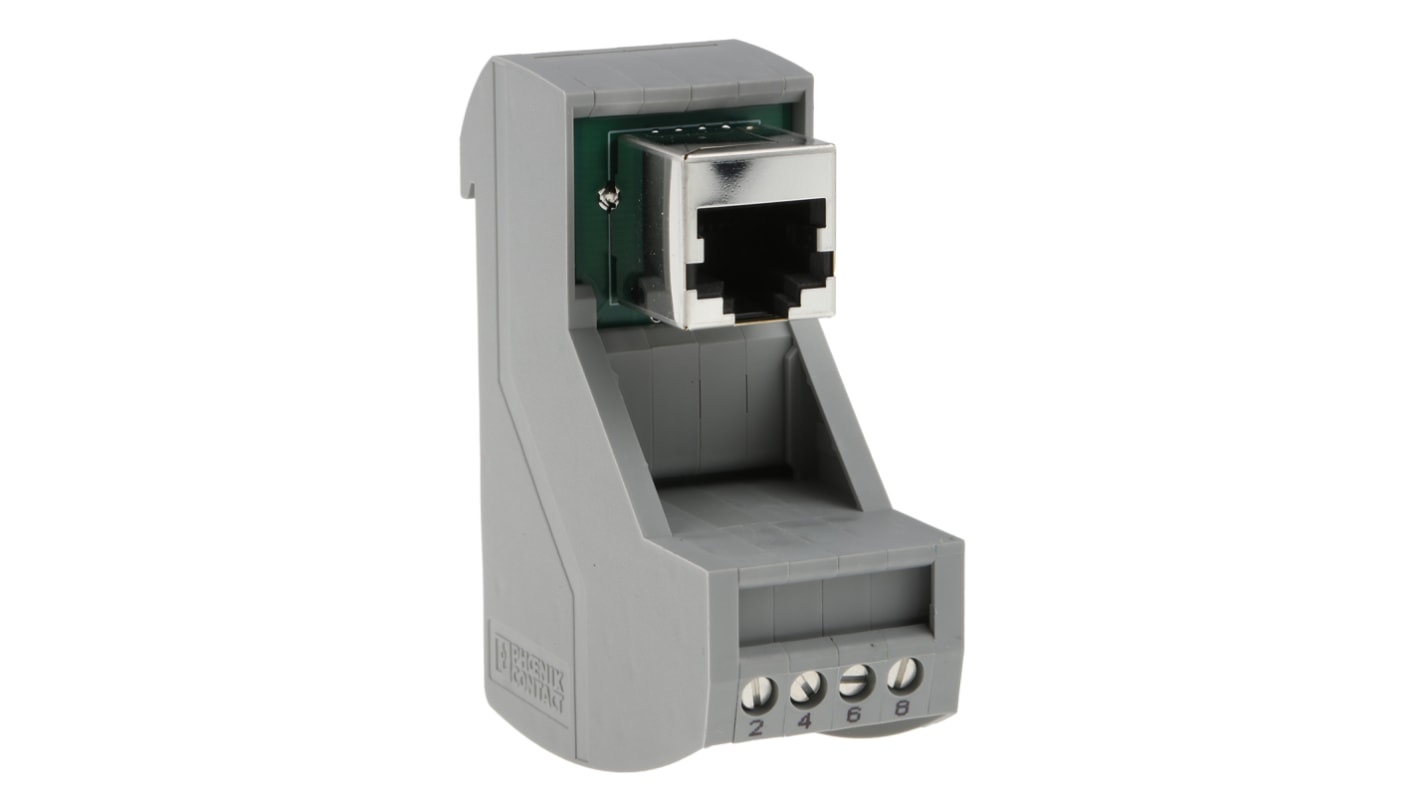

Phoenix Contact Interface Module, 48V AC/DC Voltage Rating, Screw Terminals - VIP-3/SC/RJ45 - 2900701


Upgrade your control system's communication capabilities with this interface module from Phoenix Contact. With its standardised RJ45 socket, the unit slots right into your existing setup. Its eight contacts handle up to 4A of current simultaneously, so it's suitable for Power over Ethernet applications.

This module snaps straight onto a standard DIN rail, letting you speed through installation without the need for special tools. Thanks to its compact dimensions of 26.9 (W) x 69 (H) x 62mm (D), it easily fits into a standard-size enclosure. Screw terminals secure your conductors against disruptive movement.

There's no need to worry about handling this block, as its plastic insulation cuts the risk of electric shocks. A module like this one is typically installed in patch panels, network devices and wall plates to provide a connection point for Ethernet cables.

Features & Benefits


• Works with AC and DC power supplies for wide compatibility

• Handles temperatures between -20°C and +50°C to provide reliable performance in tough conditions

• Meets DIN EN 50178 standards for safe use in power distribution systems

• Wide conductor range of 24 to 12AWG for versatility

Standards

DIN EN 50178
