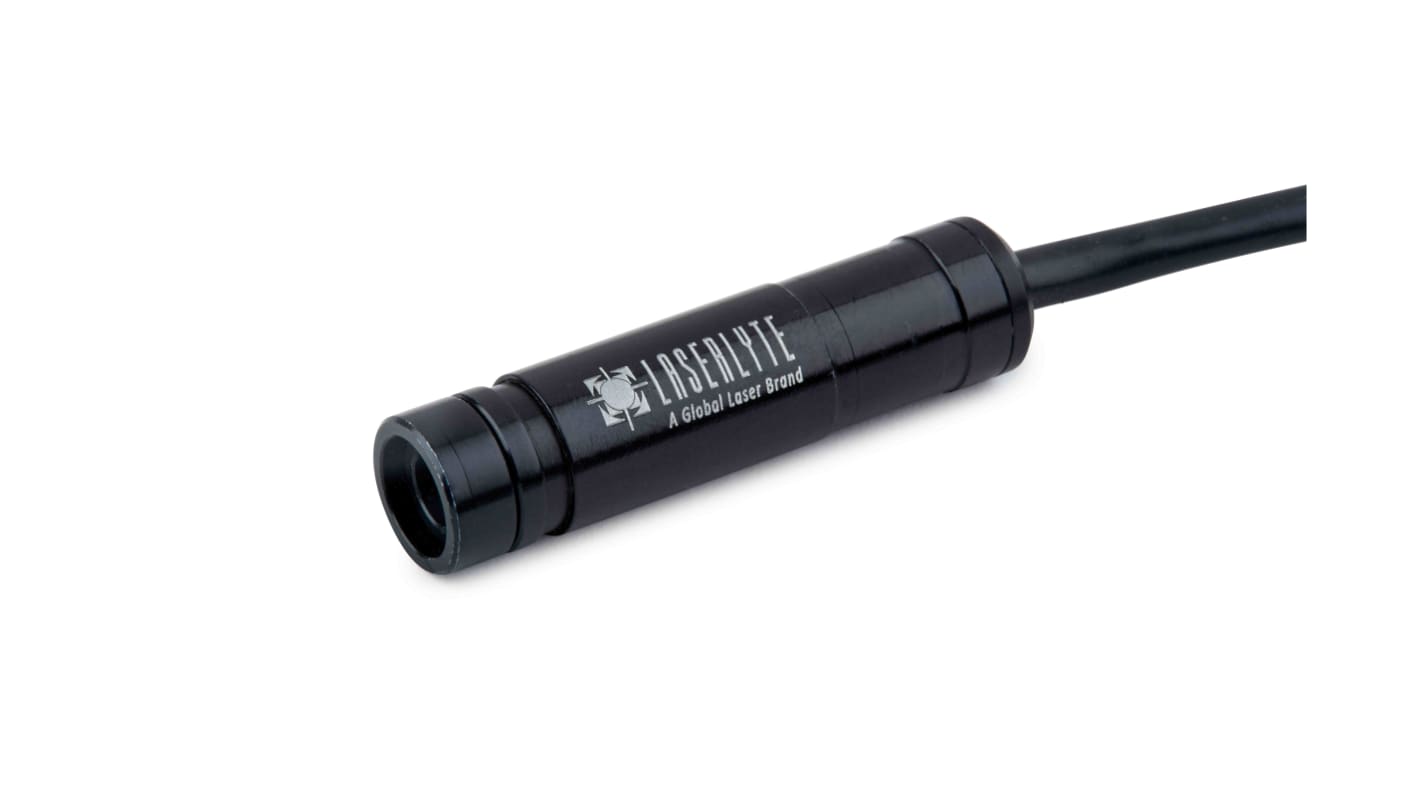

Global Laser 3118-03-000 Laser Module 515 nm 1 mW Flexible Dot pattern 10 V
- RS庫存編號:
- 210-7356
- 製造零件編號:
- 3118-03-000
- 製造商:
- Global Laser
可享批量折扣
小計（1 件）*
HK$3,431.70
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 3 件從 2026年4月10日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 49 | HK$3,431.70 |
| 50 - 249 | HK$3,260.10 |
| 250 + | HK$2,934.10 |
* 參考價格
- RS庫存編號:
- 210-7356
- 製造零件編號:
- 3118-03-000
- 製造商:
- Global Laser
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Global Laser | |
| Product Type | Laser Module | |
| Laser Type | Flexible | |
| Laser Colour | Green | |
| Emission Pattern | Dot | |
| Laser Wavelength | 515nm | |
| Optical Output Power | 1mW | |
| Laser Class | 2 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Diameter | 11 mm | |
| Maximum Supply Voltage | 10V | |
| Length | 44mm | |
| Standards/Approvals | IEC60825-1:2014 | |
| Automotive Standard | No | |
| Supply Current | 100mA | |
| Series | LaserLyte-Flex | |
| 選取全部 | ||
|---|---|---|
品牌 Global Laser | ||
Product Type Laser Module | ||
Laser Type Flexible | ||
Laser Colour Green | ||
Emission Pattern Dot | ||
Laser Wavelength 515nm | ||
Optical Output Power 1mW | ||
Laser Class 2 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Diameter 11 mm | ||
Maximum Supply Voltage 10V | ||
Length 44mm | ||
Standards/Approvals IEC60825-1:2014 | ||
Automotive Standard No | ||
Supply Current 100mA | ||
Series LaserLyte-Flex | ||
- COO (Country of Origin):
- GB
The Global Laser LaserLyte-Flex is an entry-level laser alignment system. It uses interchangeable optics and a semiconductor laser diode to project a highly visible dot, line, cross, or a combined line and central dot. The LaserLyte-Flex system include the laser diode module and an adjustable focus key.
Used black anodised aluminium housing
Operating case temperature -10°C to +45°C
