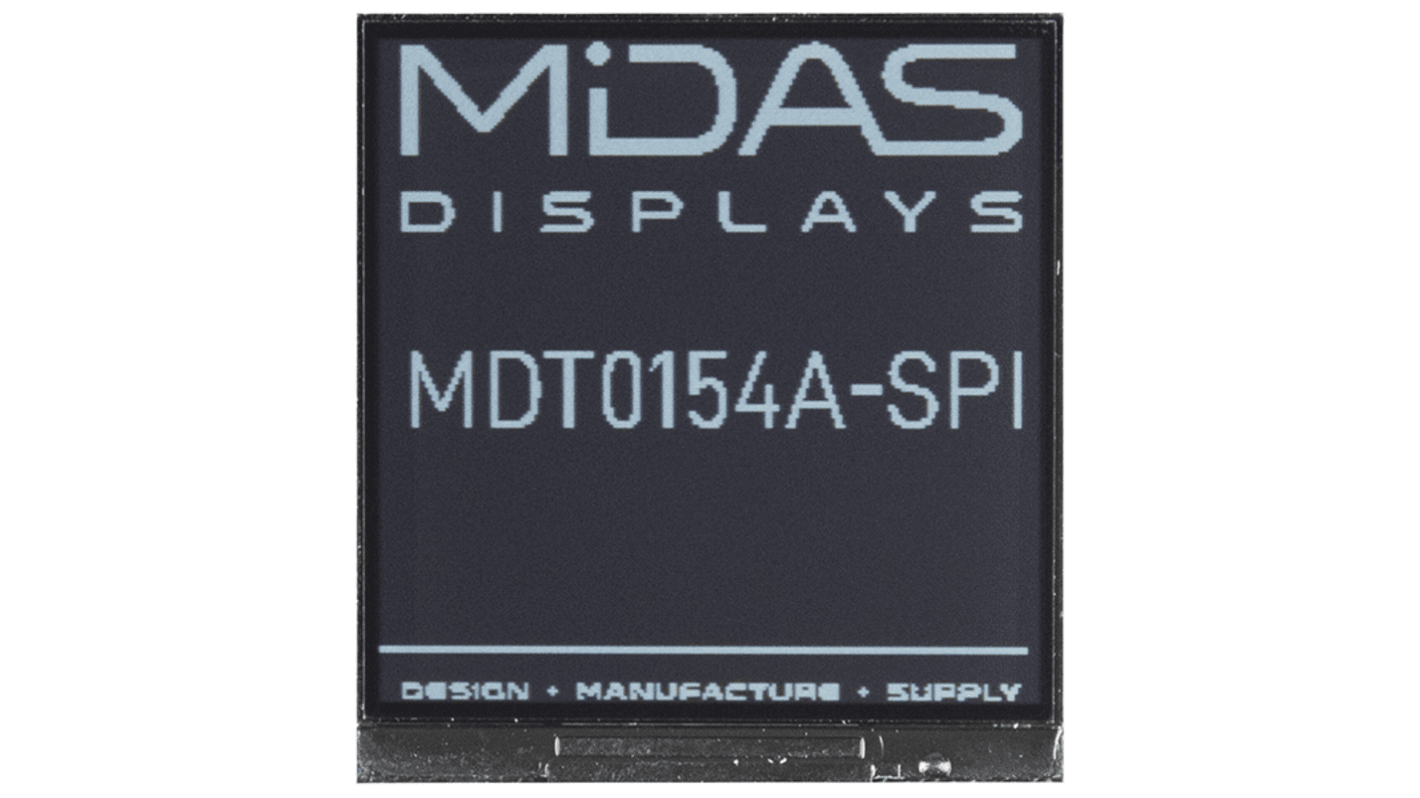

Midas MDTR0154A-SPI Reflective TFT LCD Module, 1.54in, 200 x 200pixels

RS庫存編號:: 331-746
製造零件編號:: MDTR0154A-SPI
製造商:: Midas

可享批量折扣

小計（1 件）*

HK$99.00

訂單超過 HK$250.00 免費送貨

有庫存

加上 46 件從 2025年12月22日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 9	HK$99.00
10 +	HK$97.10

* 參考價格

RS庫存編號:: 331-746
製造零件編號:: MDTR0154A-SPI
製造商:: Midas

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Midas
	Diagonal Display Size	1.54in
	Interface Type	SPI
	Resolution	200 x 200pixels
	Touch Screen	No
	Viewing Area Dimensions	28.86 x 29.01mm
	Display Matrix Technology	Reflective TFT

	選取全部
	品牌 Midas
	Diagonal Display Size 1.54in
	Interface Type SPI
	Resolution 200 x 200pixels
	Touch Screen No
	Viewing Area Dimensions 28.86 x 29.01mm
	Display Matrix Technology Reflective TFT

Datasheet - MDTR0154A-SPI

COO (Country of Origin):: TW

The Midas 1.54 inch TFT display has a resolution of 200 x 200 and All Round viewing angles. The interface is SPI and the display has an operating temp of -20 to +70°C. It is a 200 x 200 dot matrix mono reflective TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs and FPC. It has ST7305 controller. The ST7305 is a single chip controller/driver for small and medium TFT LCD display that operate at very low frame frequency to conserve power. This chip is capable of supporting up to 264H x 320V pixels and provides a standard 8 bit 8080 parallel interface, 3 wire SPI serial interface and single/dual 4 wire SPI serial interface to configure the system and update the graphics content.

RoHS compliant
Design for low power active matrix a-Si TFT Display
Single chip TFT LCD controller or driver with on chip frame memory
Support for 264H x 320V mono pixels
Outputs bi level 1 bit per pixel source drive
Support multiple frame rate
Supports multiple LCD modes
