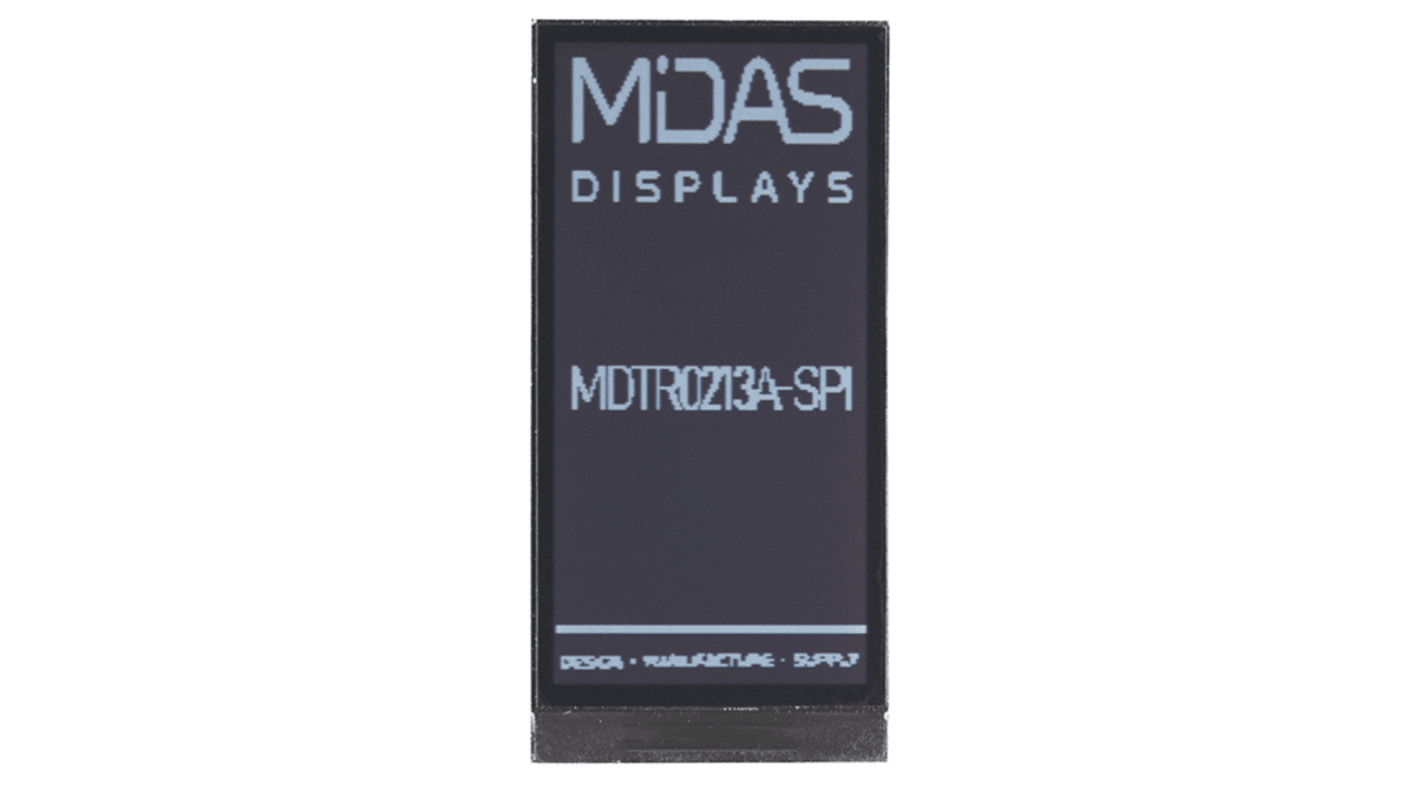

Midas MDTR0213A-SPI Reflective TFT LCD Module, 2.13in, 122 x 250pixels

The Midas 2.13 inch TFT display has a resolution of 122 x 250 and All Round viewing angles. The interface is SPI and the display has an operating temp of -20 to +70°C. It is a 122 x 250 dot matrix mono reflective TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs and FPC. It has ST7305 controller. The ST7305 is a single chip controller/driver for small and medium TFT LCD display that operate at very low frame frequency to conserve power. This chip is capable of supporting up to 264H x 320V pixels and provides a standard 8 bit 8080 parallel interface, 3 wire SPI serial interface and single/dual 4 wire SPI serial interface to configure the system and update the graphics content.

RoHS compliant
Design for low power active matrix a-Si TFT Display
Single chip TFT LCD controller or driver with on chip frame memory
Support for 264H x 320V mono pixels
Outputs bi level 1 bit per pixel source drive
Support multiple frame rate
Supports multiple LCD modes
