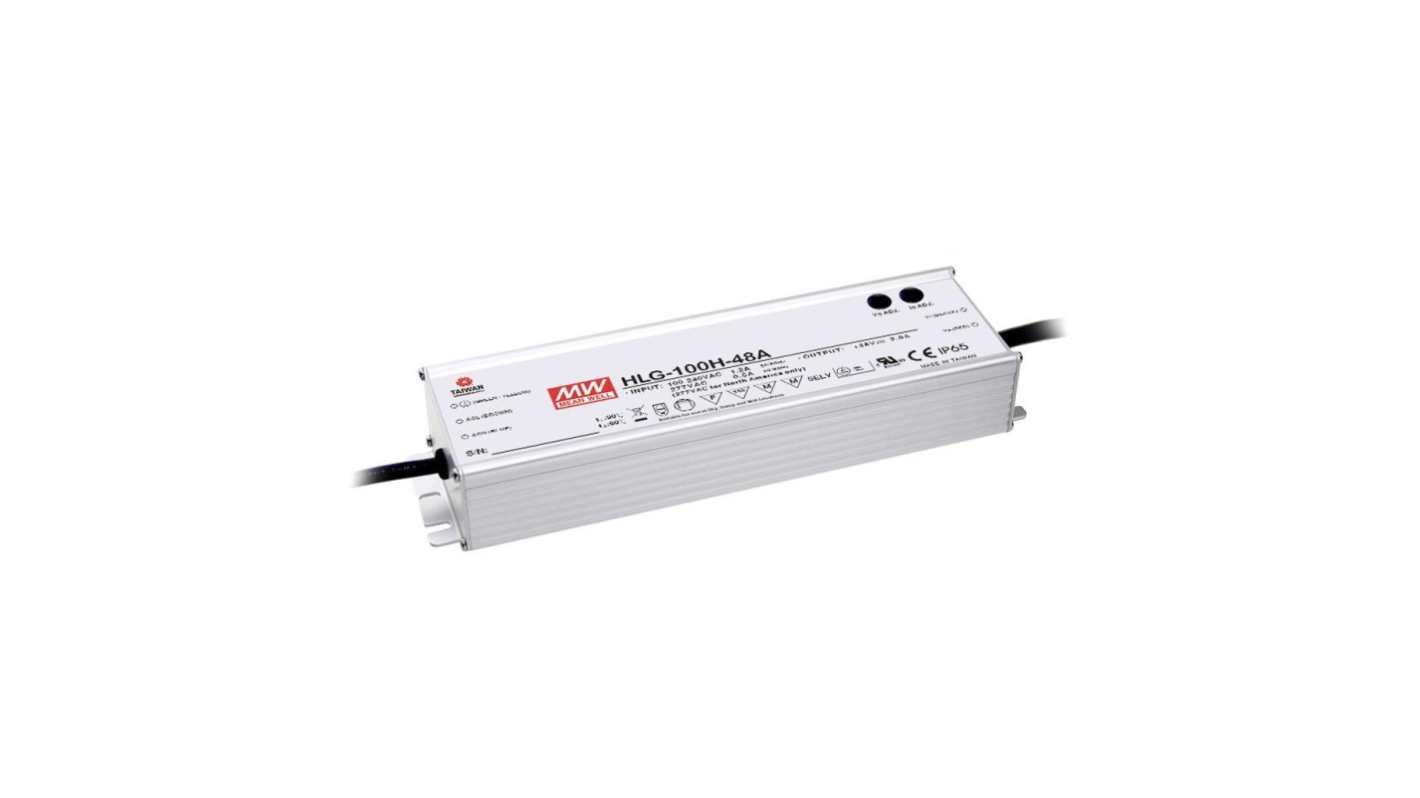

MEAN WELL IP67, IP65 1 Output LED Driver, 42V, 100 W, 2.28A 3 in 1 Dimming LED Driver

暫時無法供應
我們無法確定此產品何時有貨,RS 預計將其從我們的產品目錄中移除。
RS庫存編號:
424-799
Distrelec 貨號:
301-34-765
製造零件編號:
HLG-100H-42B
製造商:
MEAN WELL
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

MEAN WELL

Output Voltage

42V

Product Type

LED Driver

Maximum Output Power

100W

Input Voltage

127V dc, 431V dc

Mount Type

Screw

Sub Type

LED Driver

Dimming Operation

3 in 1 Dimming

Input Voltage Type

DC

IP Rating

IP67, IP65

Operating Modes

Constant Current/Constant Voltage

Driver Current

2.28A

LED Voltage

21V, 42V

Series

HLG

Number of Outputs

1

Standards/Approvals

J61347-2-13(except for D-type), BS EN/EN 61347-1, CSA C22.2 No. 250.0-08, J61347-1, EAC TP TC 004 Approved, GB19510.1, KC61347-1, KC61347-2-13(except for D-type), BS EN/EN 61347-2-13, UL8750(type”HL”), IP65 or IP67, GB19510.14, AS/NZS 61347-1(except for AB-type), AS/NZS 61347-2-13(except for AB-type) independent

Power Dissipation

0.5W

豁免

COO (Country of Origin):
CN
The MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC and Output 42Vdc at 2.28A and IP67 and Cable output and Dimming with 1-10V PWM resistance.

Warranty pack 84 Months Bring-In

RoHS Compliant

Packing quantity 12
