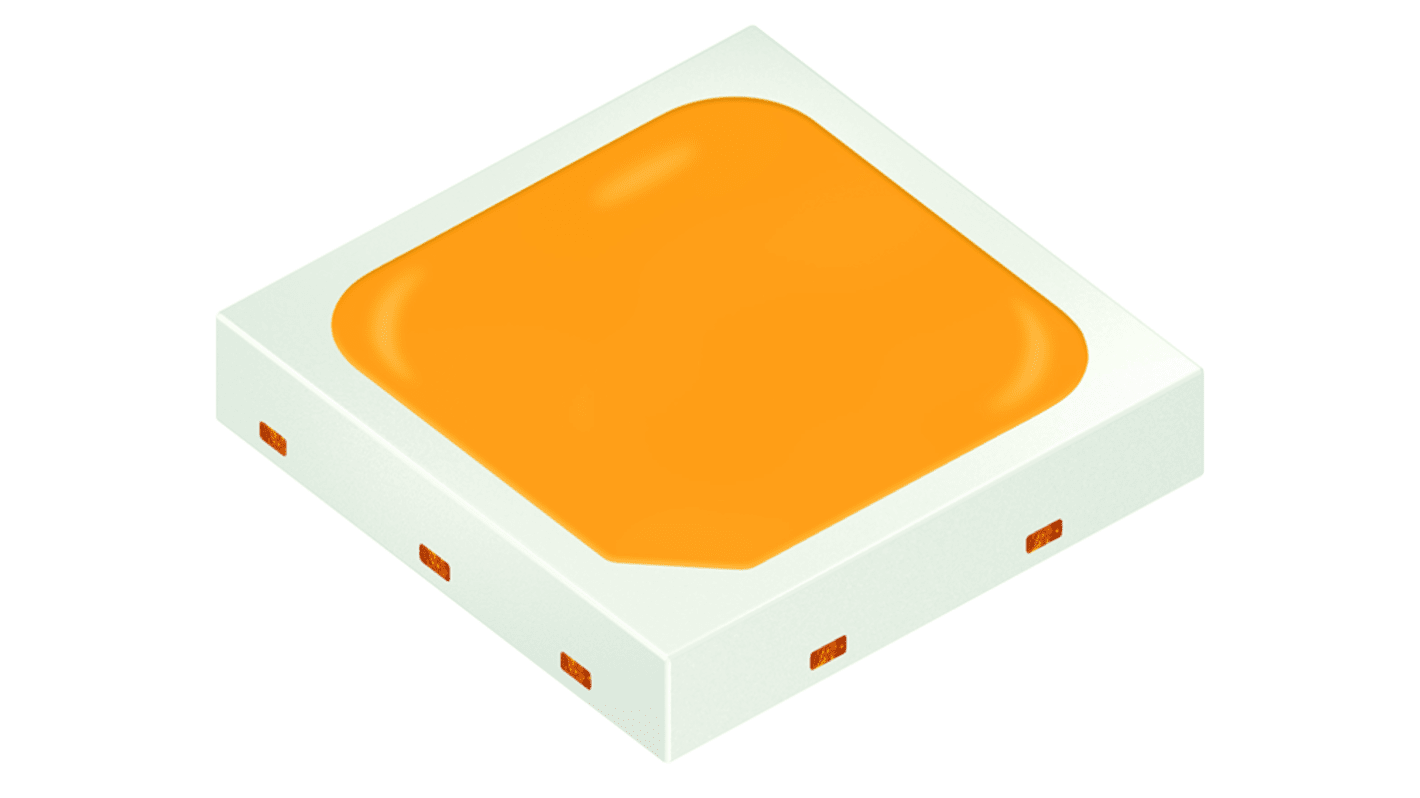

ams OSRAM 6 V White LED SMT Surface OSCONIQ GW QSLPS1.EM-LYL1-XX51-1
- RS庫存編號:
- 338-596
- 製造零件編號:
- GW QSLPS1.EM-LYL1-XX51-1
- 製造商:
- ams OSRAM
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 338-596
- 製造零件編號:
- GW QSLPS1.EM-LYL1-XX51-1
- 製造商:
- ams OSRAM
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ams OSRAM | |
| LED Colour | White | |
| Product Type | LED | |
| Maximum Forward Current | 200mA | |
| Package Type | SMT | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Number of LEDs | 1 | |
| Forward Voltage | 6V | |
| Viewing Angle | 120 ° | |
| Lens Dimensions | 3 x 3 x 0.6 mm | |
| LED Luminous Flux | 140 to 160 lm | |
| Standards/Approvals | ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B), IEC 62471:2006, MSL Level 3 acc. to JEDEC J-STD-020E | |
| Series | OSCONIQ | |
| Lens Colour | White | |
| Colour Temperature | 6500K | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 ams OSRAM | ||
LED Colour White | ||
Product Type LED | ||
Maximum Forward Current 200mA | ||
Package Type SMT | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Number of LEDs 1 | ||
Forward Voltage 6V | ||
Viewing Angle 120 ° | ||
Lens Dimensions 3 x 3 x 0.6 mm | ||
LED Luminous Flux 140 to 160 lm | ||
Standards/Approvals ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B), IEC 62471:2006, MSL Level 3 acc. to JEDEC J-STD-020E | ||
Series OSCONIQ | ||
Lens Colour White | ||
Colour Temperature 6500K | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The ams OSRAM 6V OSCONIQ E 3030 LED addresses use-cases in various general lighting applications including indoor & outdoor fixtures, area lighting and downlights where high flux is a key requirement.
White SMT package
Typ. Radiation is 120°
ESD 8 kV acc. to ANSI/ESDA/JEDEC JS-001
