ams OSRAM 3 V Green LED 0603 Surface SMARTLED 0603 KT EELP41.12
- RS庫存編號:
- 428-517
- 製造零件編號:
- KT EELP41.12
- 製造商:
- ams OSRAM

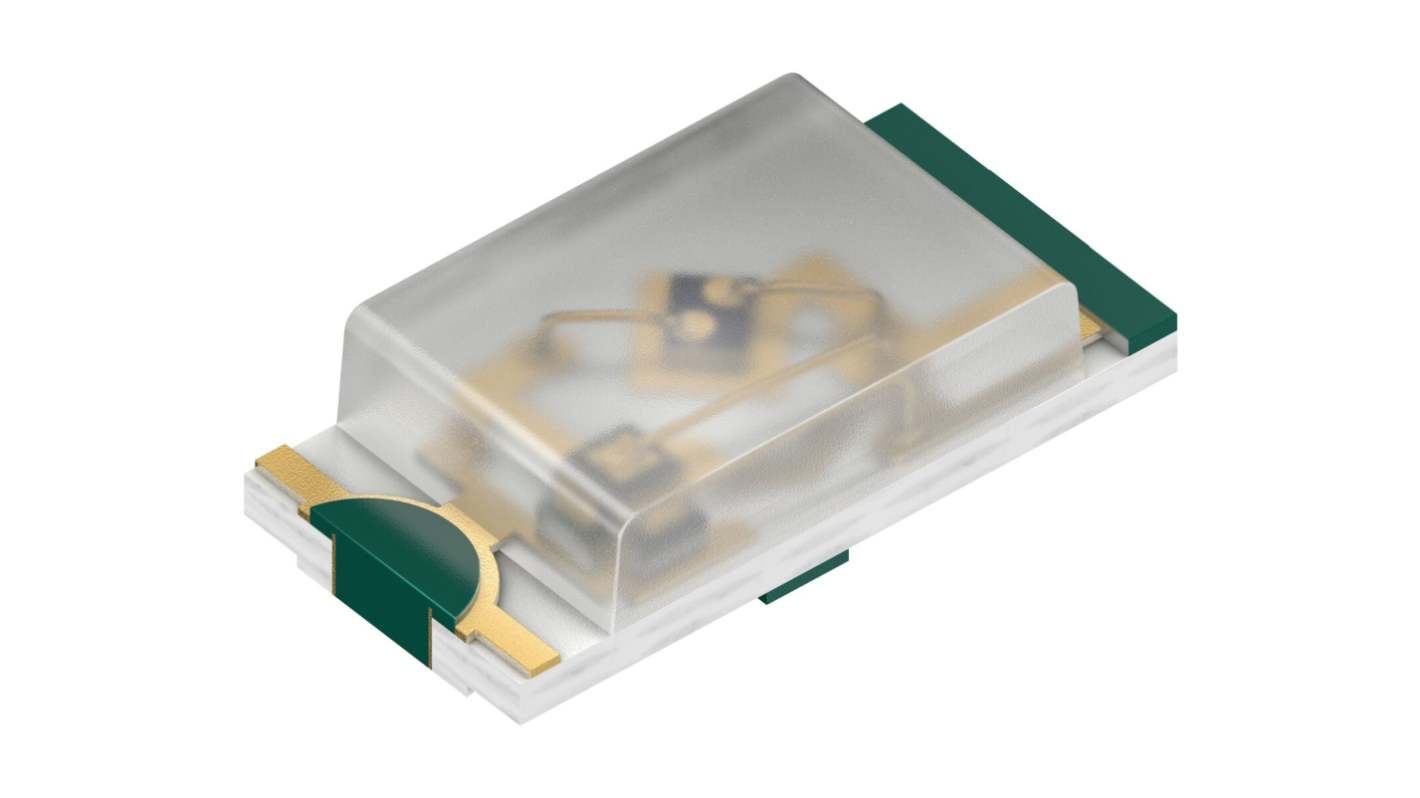

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
抱歉，我們不知道何時會到貨。
- RS庫存編號:
- 428-517
- 製造零件編號:
- KT EELP41.12
- 製造商:
- ams OSRAM
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ams OSRAM | |
| LED Colour | Green | |
| Product Type | LED | |
| Package Type | 0603 | |
| Maximum Forward Current | 30mA | |
| Packaging | Tape & Reel | |
| Mount Type | Surface | |
| Forward Voltage | 3V | |
| Viewing Angle | 130 to 145° | |
| Lens Dimensions | 1.6 x 0.8 x 0.4 mm | |
| LED Luminous Flux | 980 to 1970 mlm | |
| LED Luminosity | 0.0715 cd | |
| Dominant Wavelength | 540nm | |
| Standards/Approvals | IEC 60068-2-43, IEC 62471:2006, ANSI/ESDA/JEDEC JS-001, JEDEC J-STD-020E | |
| Series | SMARTLED 0603 | |
| Lens Finish | Diffused | |
| Lens Colour | Colourless | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 ams OSRAM | ||
LED Colour Green | ||
Product Type LED | ||
Package Type 0603 | ||
Maximum Forward Current 30mA | ||
Packaging Tape & Reel | ||
Mount Type Surface | ||
Forward Voltage 3V | ||
Viewing Angle 130 to 145° | ||
Lens Dimensions 1.6 x 0.8 x 0.4 mm | ||
LED Luminous Flux 980 to 1970 mlm | ||
LED Luminosity 0.0715 cd | ||
Dominant Wavelength 540nm | ||
Standards/Approvals IEC 60068-2-43, IEC 62471:2006, ANSI/ESDA/JEDEC JS-001, JEDEC J-STD-020E | ||
Series SMARTLED 0603 | ||
Lens Finish Diffused | ||
Lens Colour Colourless | ||
Automotive Standard No | ||
The ams OSRAM Smart LED 0603 is a choice for status indication any symbol backlighting in electronics. The small package size allows compact designs. The improved corrosion robustness and increased junction temperature range makes the devices suitable for professional industrial equipment and applications.
SMT package 0603 with colourless diffused resin
Chip technology InGaN on Sapphire
Corrosion Robustness Class 3B
