ams OSRAM 3.6 V White LED SMT Surface KW DELSS2.CC KW DELSS2.CC-BXCY-4R9T-46A8
- RS庫存編號:
- 211-6750
- 製造零件編號:
- KW DELSS2.CC-BXCY-4R9T-46A8
- 製造商:
- ams OSRAM

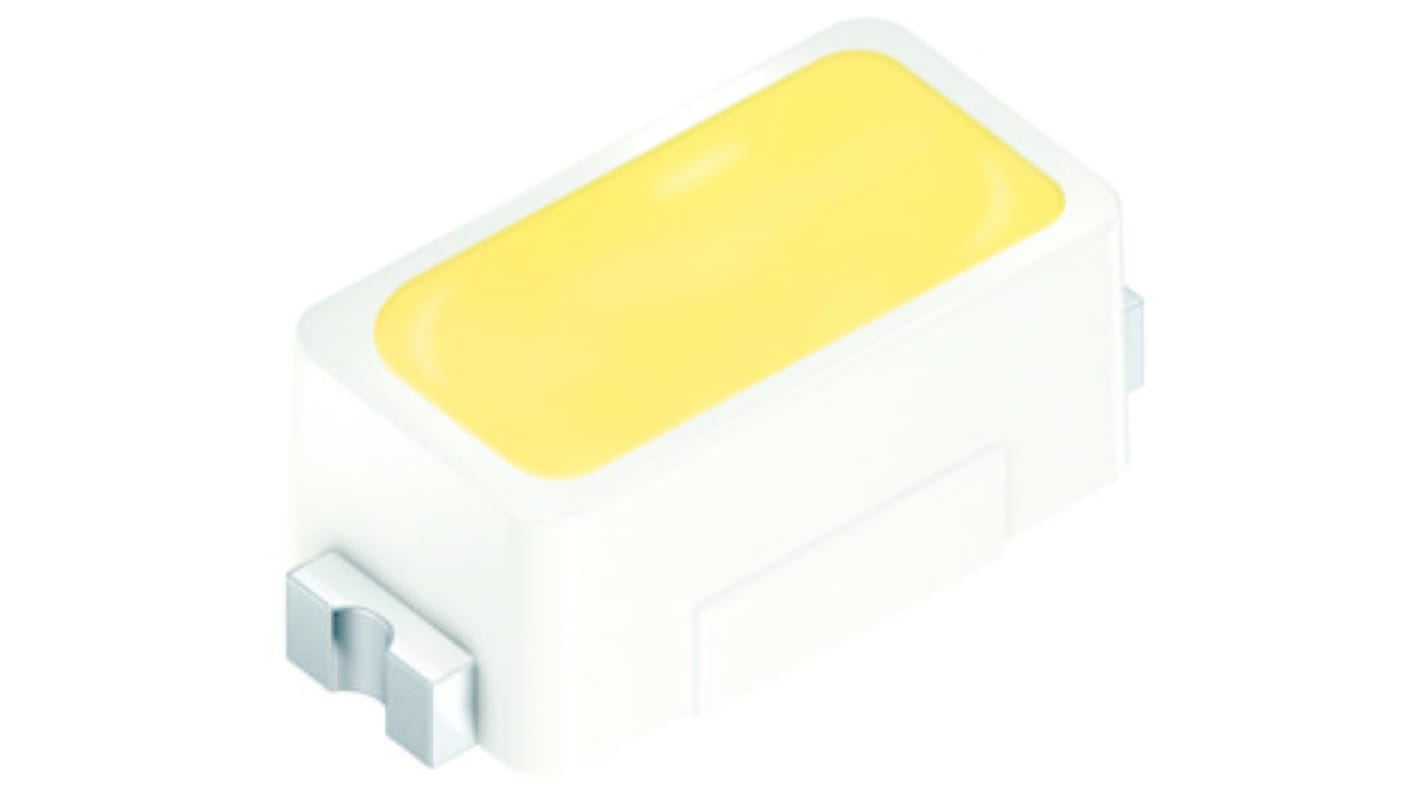

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
抱歉，我們不知道何時會到貨。
- RS庫存編號:
- 211-6750
- 製造零件編號:
- KW DELSS2.CC-BXCY-4R9T-46A8
- 製造商:
- ams OSRAM
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ams OSRAM | |
| LED Colour | White | |
| Product Type | LED | |
| Package Type | SMT | |
| Maximum Forward Current | 33mA | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Number of LEDs | 1 | |
| Forward Voltage | 3.6V | |
| Viewing Angle | 120 ° | |
| Colour Rendering Index CRI | 90% | |
| LED Luminous Flux | 5850 to 10800 mlm | |
| LED Luminosity | 1800 to 3900 mcd | |
| Standards/Approvals | IEC 62471:2006 | |
| Colour Temperature | 3000K | |
| Series | KW DELSS2.CC | |
| Lens Finish | Diffused | |
| Automotive Standard | AEC-Q102 | |
| 選取全部 | ||
|---|---|---|
品牌 ams OSRAM | ||
LED Colour White | ||
Product Type LED | ||
Package Type SMT | ||
Maximum Forward Current 33mA | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Number of LEDs 1 | ||
Forward Voltage 3.6V | ||
Viewing Angle 120 ° | ||
Colour Rendering Index CRI 90% | ||
LED Luminous Flux 5850 to 10800 mlm | ||
LED Luminosity 1800 to 3900 mcd | ||
Standards/Approvals IEC 62471:2006 | ||
Colour Temperature 3000K | ||
Series KW DELSS2.CC | ||
Lens Finish Diffused | ||
Automotive Standard AEC-Q102 | ||
- COO (Country of Origin):
- CN
The OSRAM Opto Semiconductors LED offers superior light quality for ambient white illumination also allows excellent colour rendering by using dedicated phosphors with high CRI. It has 3000 K colour temperature.
EPI_Sapphire chip technology
Corrosion robustness class: 2B
AEC-Q102 qualified
Very small colour and brightness bins
Supports single and multi light point applications (matrix)
