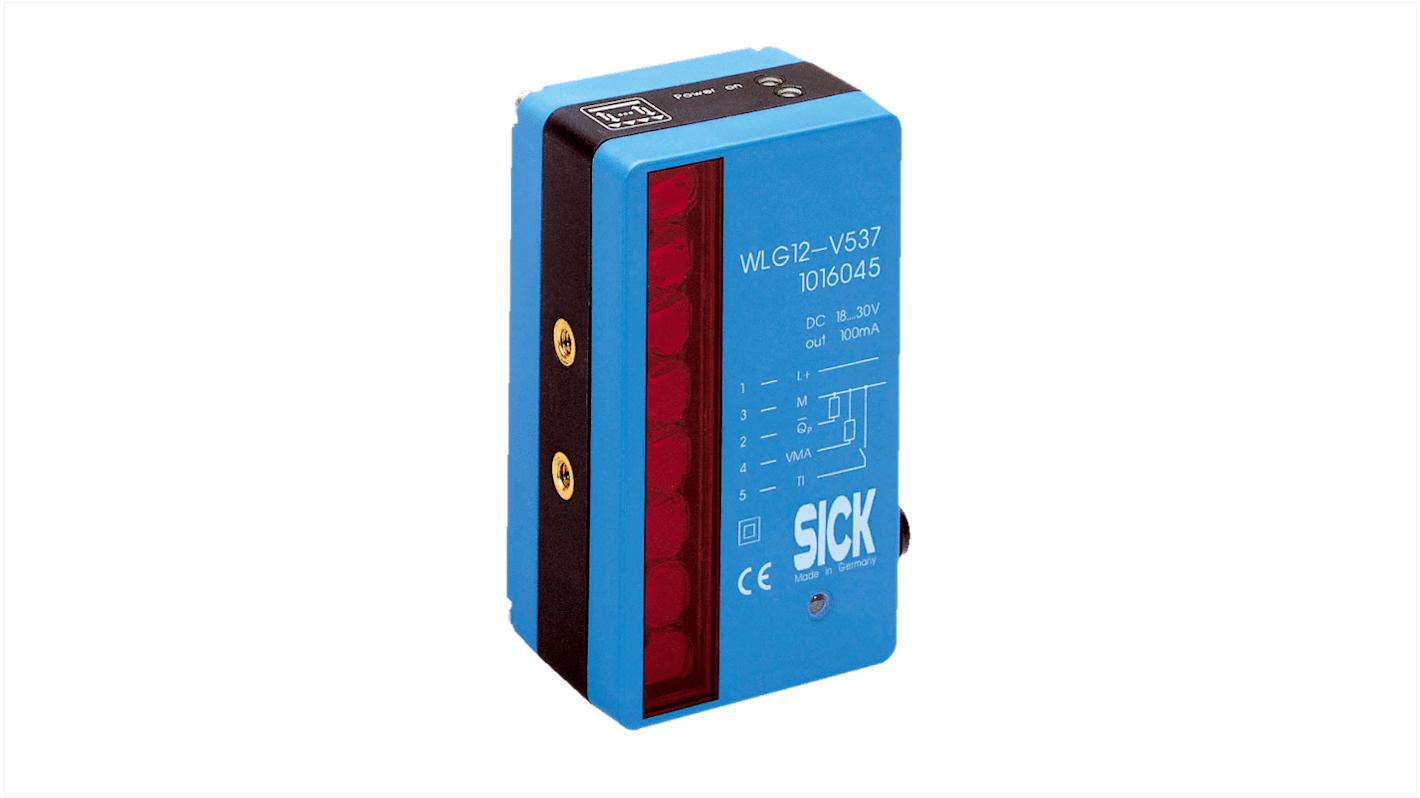

SICK Photoelectric Retro-Reflective Sensor WLG12 Series

查看所有Light Grids

小計（1 件）*

HK$9,604.60

Add to Basket
選擇或輸入數量
有庫存
  • 15 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$9,604.60

* 參考價格

RS庫存編號:
285-9100
製造零件編號:
WLG12-P537
製造商:
SICK
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

SICK

Detection Range

1.5 m

Sensor Principle

Photoelectric Retro-Reflective Sensor

Beam Separation

12.5mm

Component Type

Photoelectric Retro-Reflective Sensor

Light Source

LED

Length

106mm

Width

62mm

Depth

46.6mm

Series

WLG12

IP Rating

IP67

COO (Country of Origin):
HU

Overview


The WLG is a retro-reflective light grid with a 100 mm detection height and transmission 8 LEDs. Detecting damaged pallets, leading edge detection, checking the edges of material webs and detecting and sorting bottles are the typical areas of application

At the same time, depending on the set sensitivity, the WLG detects objects which are only 6 mm large at a distance of 0.4 m. Transparent objects and reflective surfaces are also reliably detected.

At a glance


0.6 ms response time
Eight visible transmitter LEDs
Up to eight PNP switching outputs and one alarm output
Sensitivity can be set via a potentiometer
Polarizing filter for reflective surfaces

Your Benefit


The fast response time of the WLG means that increased conveyor speeds can be used
Increased availability thanks to the reliable detection of transparent objects
Savings in terms of cost and space thanks to the use of a reflector
A polarizing filter incre

Applications
