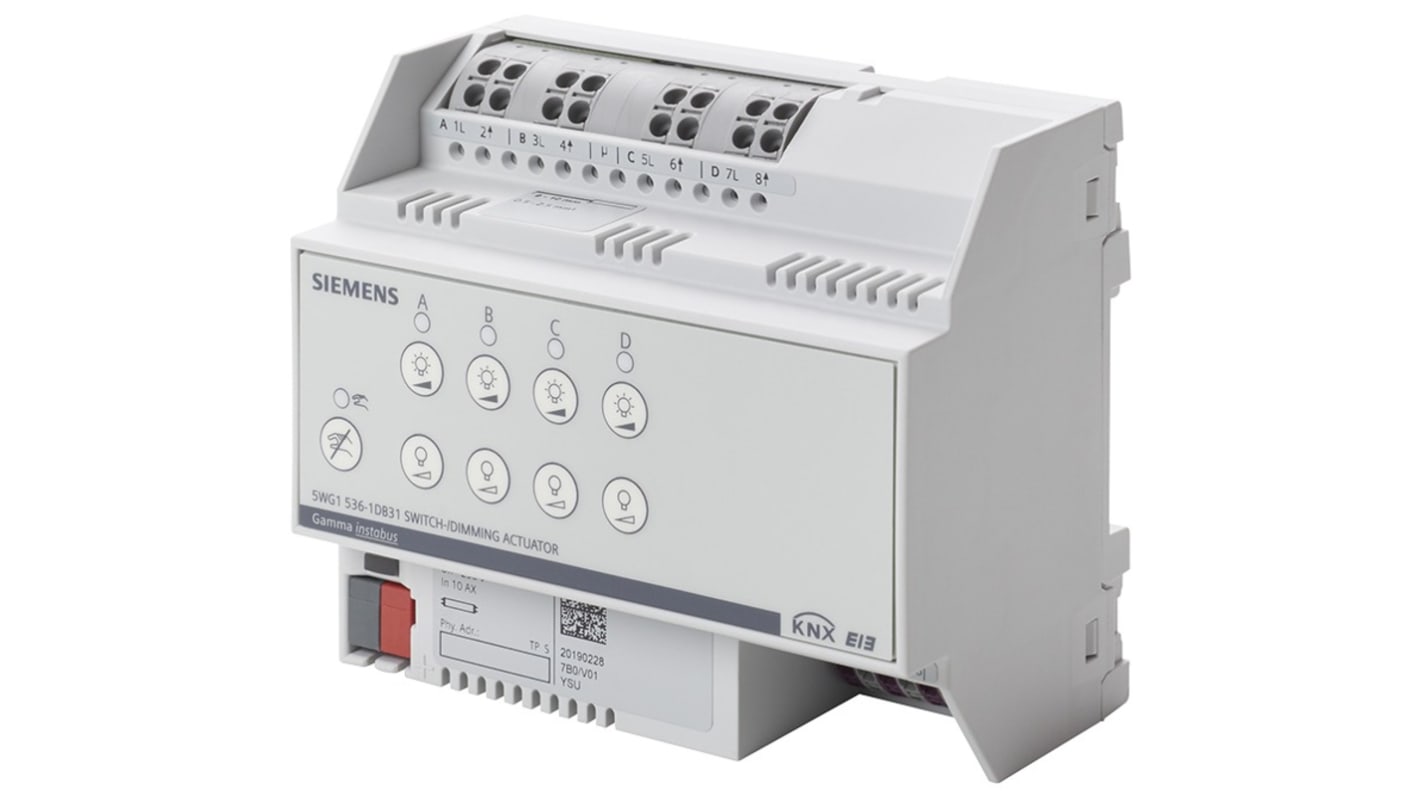

The Siemens versatile switching/dimming actuator that is designed for control and dimming of dimmable electronic control gear and LED drivers. It offers direct switching on and off of AC 230 V for up to four lamps or groups of lamps with a capacity of 10 AX each. The actuator also features maintenance-free terminals for easy connection of conductors. With extensive control, override, and diagnostic functions, the switching/dimming actuator allows for flexible and efficient installation. It is a reliable and efficient solution for building automation, providing smooth dimming and scene control. The compact design and easy installation make it suitable for a wide range of applications.
Control of dimmable electronic control gear for fluorescent lamps or LED drivers via the DC 1 to 10 V control outputs Direct switching on and off of AC 230 V for four lamps or groups of lamps with a capacity of 10 AX each Maintenance-free terminals for easy connection of conductors Extensive control, override, and diagnostic functions for each channel Configurable dimming curves and various fade times for optimal dimming Integrated 8-bit scene control and assignment of each output to up to 8 scenes Switching cycle counting with threshold monitoring for switching cycles Operating hours counter with threshold overrun warning
