Renesas Electronics 2-Channel Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC

RS庫存編號:: 256-1584
製造零件編號:: ISL3179EFBZ
製造商:: Renesas Electronics

Renesas Electronics 2-Channel Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC

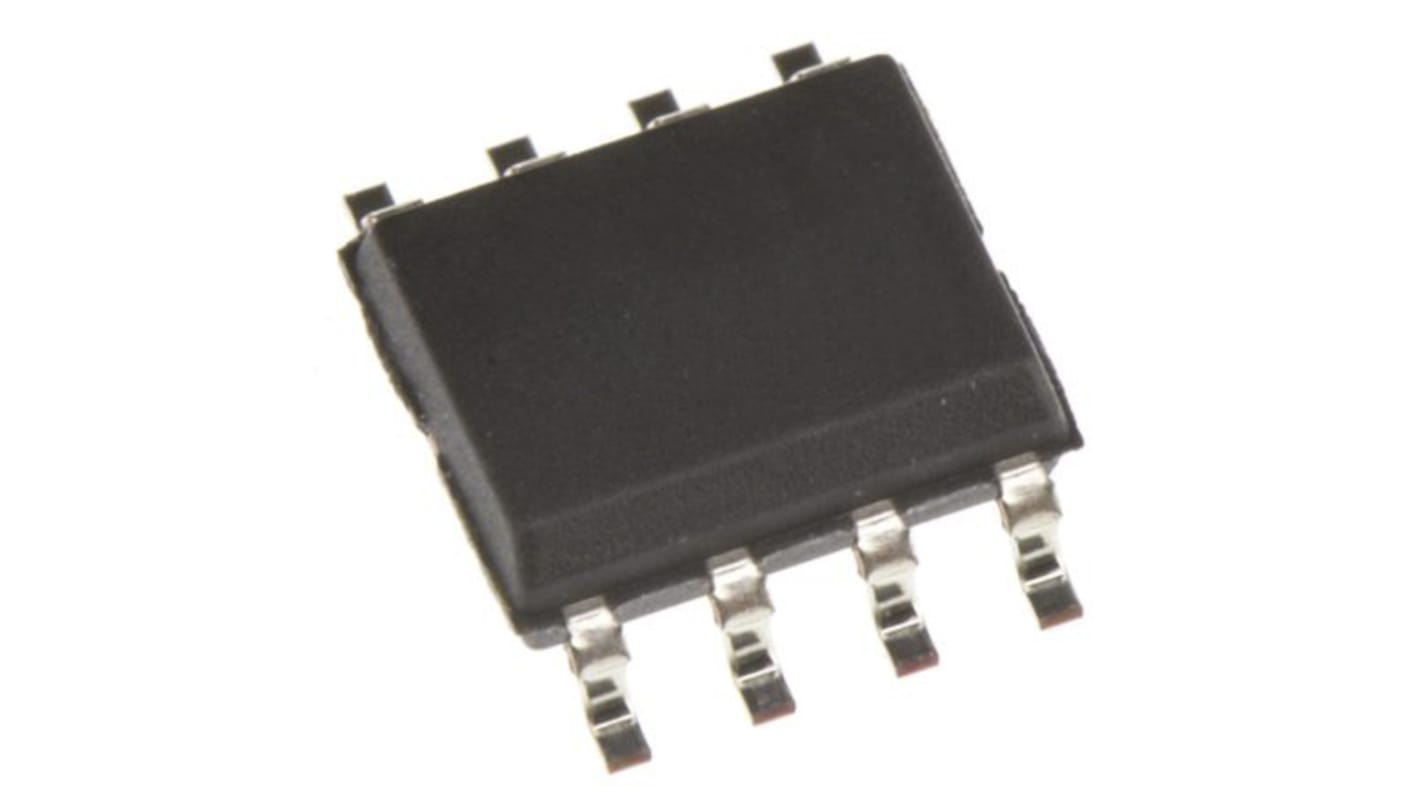

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 管，共 98 件）*

HK$1,659.728

訂單超過 HK$250.00 免費送貨

有庫存

686 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每管*
98 - 98	HK$16.936	HK$1,659.73
196 - 196	HK$16.598	HK$1,626.60
294 - 490	HK$16.265	HK$1,593.97
588 +	HK$15.778	HK$1,546.24

* 參考價格

RS庫存編號:: 256-1584
製造零件編號:: ISL3179EFBZ
製造商:: Renesas Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Logic Family	CMOS
	Product Type	Line Transceiver
	Logic Function	Transceiver
	IC Type	Transceiver
	Number of Channels	2
	Input Type	RS422/RS485
	Output Type	Differential
	Polarity	Non-Inverting
	Package Type	SOIC
	Pin Count	8
	Minimum Supply Voltage	3V
	Maximum Supply Voltage	3.6V
	Maximum High Level Output Current	4mA
	Maximum Low Level Output Current	2.6mA
	Minimum Operating Temperature	-40°C
	Maximum Propagation Delay Time @ CL	1.5ns
	Maximum Operating Temperature	125°C
	Series	ISL3179
	Height	1.75mm
	Length	5mm
	Standards/Approvals	RoHS
	Width	4 mm
	Supply Current	4mA
	Automotive Standard	No

	選取全部
	品牌 Renesas Electronics
	Logic Family CMOS
	Product Type Line Transceiver
	Logic Function Transceiver
	IC Type Transceiver
	Number of Channels 2
	Input Type RS422/RS485
	Output Type Differential
	Polarity Non-Inverting
	Package Type SOIC
	Pin Count 8
	Minimum Supply Voltage 3V
	Maximum Supply Voltage 3.6V
	Maximum High Level Output Current 4mA
	Maximum Low Level Output Current 2.6mA
	Minimum Operating Temperature -40°C
	Maximum Propagation Delay Time @ CL 1.5ns
	Maximum Operating Temperature 125°C
	Series ISL3179
	Height 1.75mm
	Length 5mm
	Standards/Approvals RoHS
	Width 4 mm
	Supply Current 4mA
	Automotive Standard No

Datasheet - ISL3179EFBZ

The Renesas RS-485/RS-422 Transceiver is high ESD protected, 3.3V powered, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. Device has low bus currents (+220μA/-150μA), so they present a 1/5 unit load to the RS-485 bus. This allows up to 160 transceivers on the network without violating the RS-485 specification’s 32 unit load maximum, and without using repeaters. Receiver (Rx) inputs feature a full fail-safe design, which ensures a logic high Rx output if Rx inputs are floating, shorted or terminated but undriven.

High data rates up to 40Mbps

5V tolerant logic inputs

1/5 unit load allows up to 160 devices on the bus

-7V to +12V common-mode input voltage range

Three-state Rx and Tx outputs

Current limiting and thermal shutdown for driver overload protection

Pb-free (RoHS compliant)
