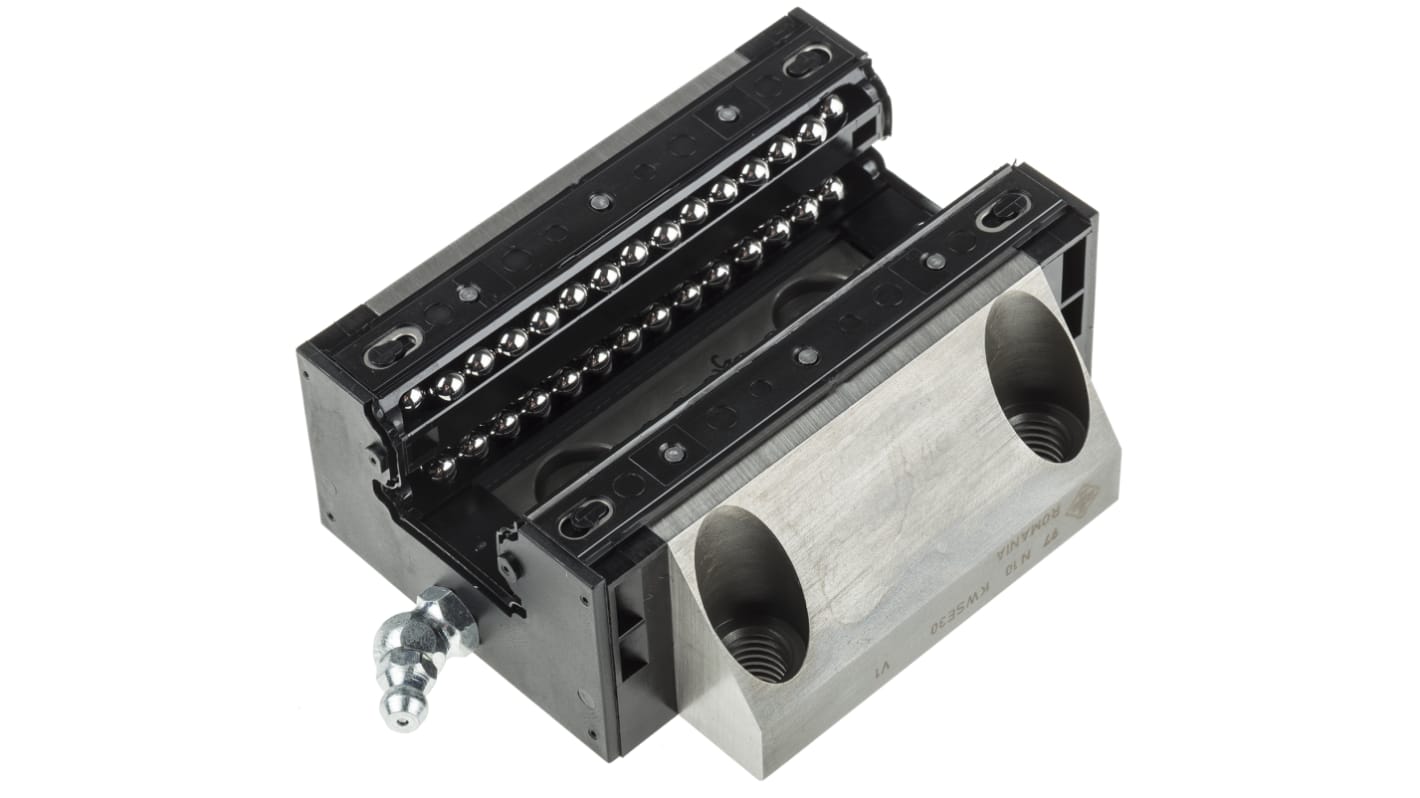

INA Linear Guide Carriage KWSE30, 40000N Dynamic Load, 28mm Rail Width

RS庫存編號:: 172-1051
製造零件編號:: KWSE30-V1-G3
製造商:: INA

INA Linear Guide Carriage KWSE30, 40000N Dynamic Load, 28mm Rail Width

查看所有Linear Guide Blocks

可享批量折扣

小計（1 件）**

HK$2,419.46

當前暫無庫存，可於2025/8/17發貨，3 工作日送達。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

單位	每單位
1 - 4	HK$2,419.46
5 +	HK$2,368.67

** 參考價格

比較

RS庫存編號:: 172-1051
製造零件編號:: KWSE30-V1-G3
製造商:: INA

Datasheet

Schaeffler KWSE30 Series Linear Guide Carriage, 28mm Rail Width, 40000N Dynamic Load Rating - KWSE30-V1-G3

This linear guide carriage is a vital component for precision motion in industrial applications. Designed specifically for linear motion systems, it measures 91.6mm in length and features a robust 28mm rail width, ensuring compatibility with various setups. With a dynamic load rating of 40000 N and a static load rating of 80000 N, this product is engineered for high performance and reliability in diverse environments.

Features & Benefits

• High load capacity ensures reliability under demanding conditions
• Dynamic load rating supports continuous operation without failure
• Compact dimensions provide versatility for various usage
• Static load rating guarantees stability when stationary
• Suitable for precision linear motion with minimal friction
• Robust design enhances durability and longevity in use

Applications

• Used in automation machinery for precise linear movements
• Ideal for robotics requiring high stability
• Effective in assembly lines for effective product handling
• Utilised in gantry systems for accurate positioning
• For conveyor systems needing smooth operation

How does the dynamic load rating influence usage in demanding environments?

The dynamic load rating of 40000 N allows for smooth operation under continuous load conditions, making it suitable for applications requiring consistent motion, such as automated machinery and conveyor systems.

What advantages does the static load rating offer in stationary applications?

With a static load rating of 80000 N, it ensures that even when not in motion, the carriage remains stable and securely holds the weight, which is crucial for applications where precision is paramount.

In what way does the compact design of the carriage affect its versatility?

The compact dimensions allow for easy integration into limited spaces, making it ideal for applications in automation and robotics where space is often a constraint, without compromising performance.

What makes this component suitable for precision linear motion systems?

The minimal friction design helps maintain accuracy in motion, ensuring reliable performance in high-resolution applications, such as CNC machines and precision assembly.

Attribute	Value
Manufacturer Series	KWSE30
For Rail Width	28mm
Carriage Length	91.6mm
Carriage Width	90mm
Dynamic Load Rating	40000N
Static Load Rating	80000N
