RS PRO, Linear Guide Rail 12mm width 220mm Length
- RS庫存編號:
- 176-6675
- 製造商:
- RS PRO
- RS庫存編號:
- 176-6675
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- TW
產品詳細資訊

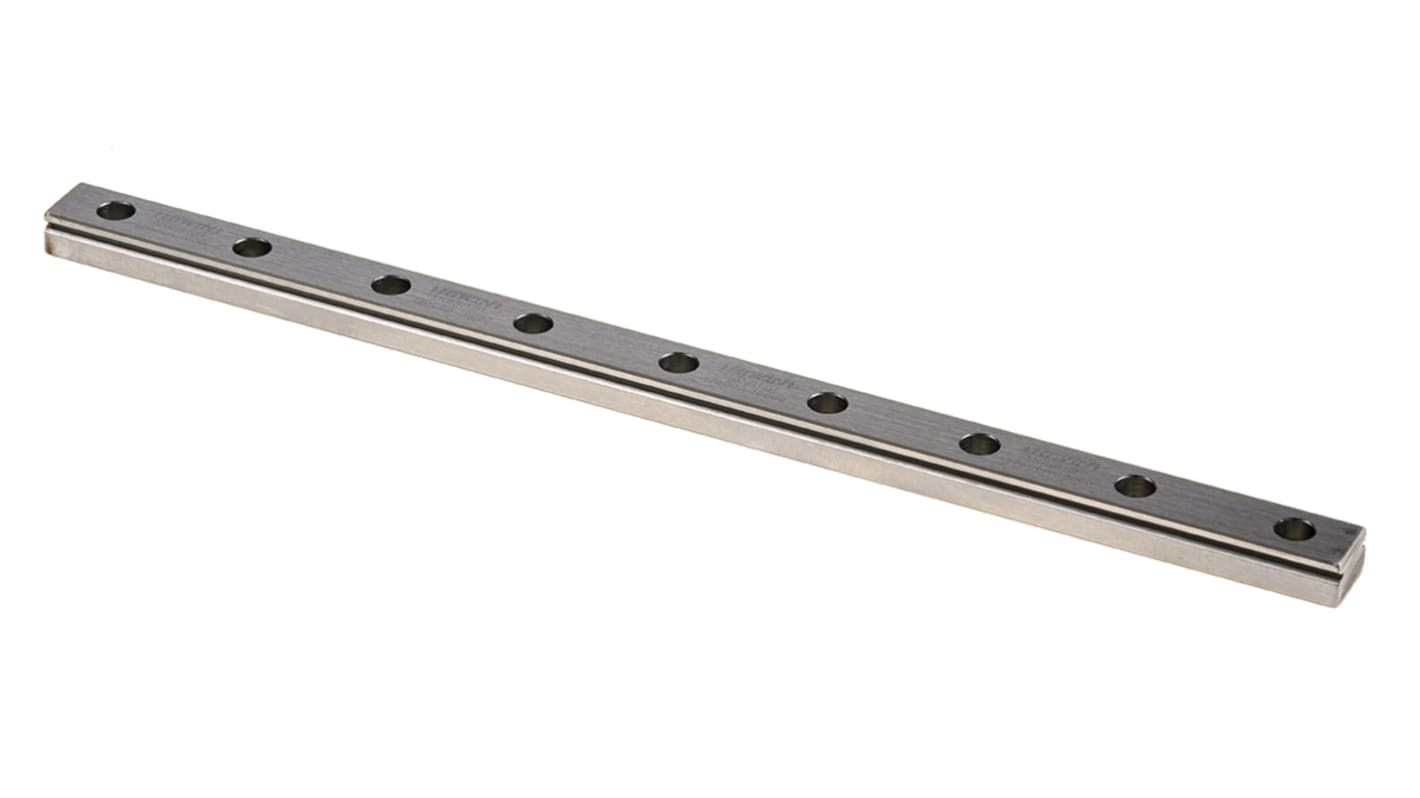

RS PRO Linear Guide Rail
The RS PRO miniature linear guide ways with rail is 220mm in length. All materials for block and rail, including rolling balls and ball retainers, are stainless steel for anti-corrosion purpose. It can sustain load from all the directions and offers high rigidity and accuracy. Recirculating steel balls are held in by a retainer to avoid balls from falling out, even when the blocks are removed from the rail installation.
Features and Benefits
• Unique design
• Lightweight
• Lightweight
Applications
• Suitable for miniature equipment
• Linear rails are the backbone of many industrial applications
• Linear rails are the backbone of many industrial applications
規格
Attribute | Value |
|---|---|
| Rail Width | 12mm |
| Rail Length | 220mm |
| Material | X65Cr13 - Stainless Steel |
| Dynamic Load Rating | 2840N |
| Static Load Rating | 3920N |
