Accuride, DZ0115-0090RS Mild Steel Linear Slides, 835mm Stroke Length
- RS庫存編號:
- 699-8512
- 製造零件編號:
- DZ0115-0090RS
- 製造商:
- Accuride

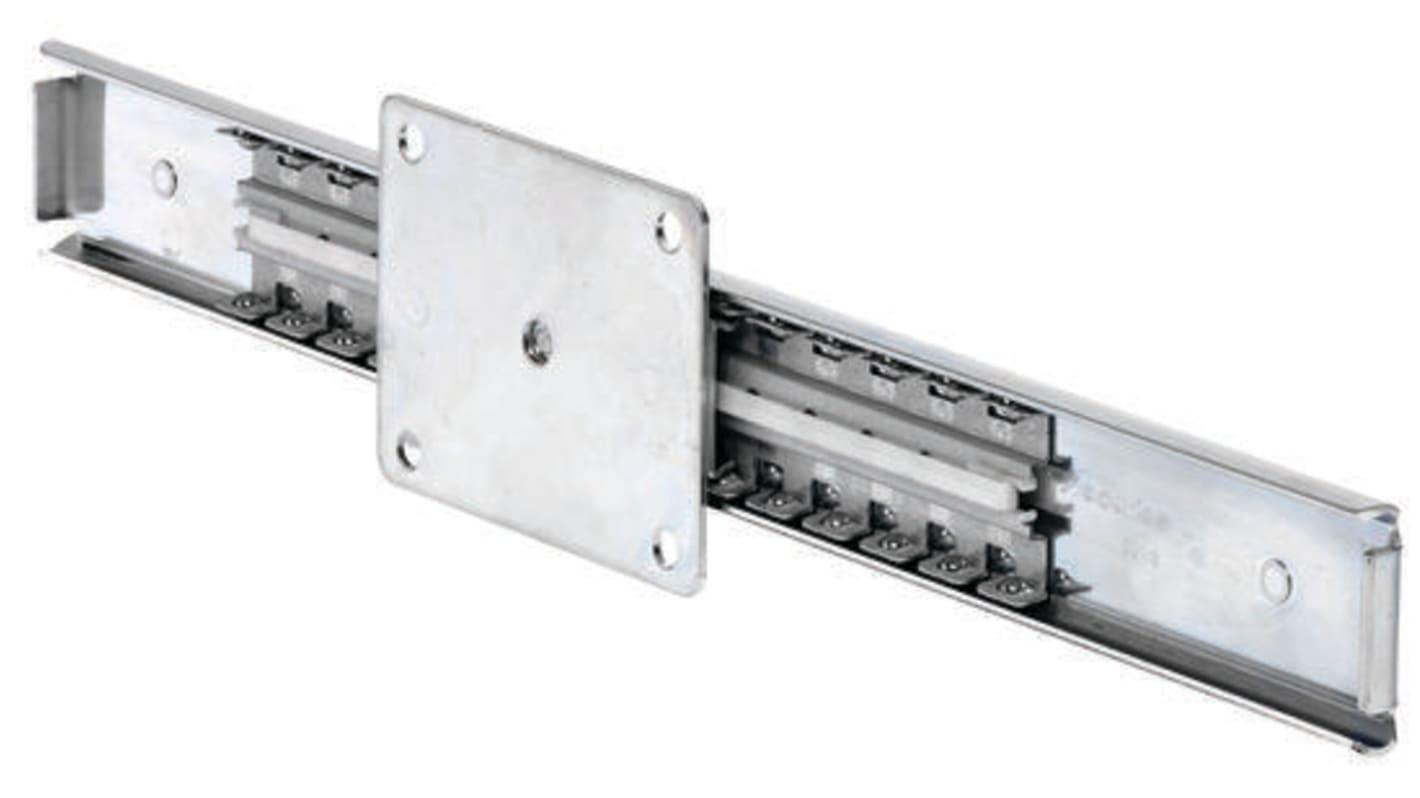

此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Linear Slides
- RS庫存編號:
- 699-8512
- 製造零件編號:
- DZ0115-0090RS
- 製造商:
- Accuride
- COO (Country of Origin):
- CN
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Accuride Linear Slides 0115RS Series
Horizontal loading per pair of slides evenly distributed: 60kg
Vertical loading per pair of slides evenly distributed: 50kg
10000 cycles
Precision linear motion through the full travel
Moving member fully supported on ball bearings at all times
Retainer synchronization
Can be used upright as a non-load bearing guide
Fixing recommended M5 screws (not supplied)
Materials: Cold rolled mild steel runners; cold rolled Zinc plated steel ball retainers; Carbon Chrome steel ball bearings
Vertical loading per pair of slides evenly distributed: 50kg
10000 cycles
Precision linear motion through the full travel
Moving member fully supported on ball bearings at all times
Retainer synchronization
Can be used upright as a non-load bearing guide
Fixing recommended M5 screws (not supplied)
Materials: Cold rolled mild steel runners; cold rolled Zinc plated steel ball retainers; Carbon Chrome steel ball bearings
Note
Slides are supplied as single units.
Ball Slide Tables, Precision
Corrosion resistant stainless steel construction precision ball slide tables in a range of width, often used in the electronics and precision instrumentation industries.
規格
| Attribute | Value |
| Manufacturer Series | 0115RS |
| Stroke Length | 835mm |
| Rail Width | 35.1mm |
| Rail Length | 914mm |
| Carriage Length | 76.2mm |
| Carriage Width | 60.3mm |
| Rail Material | Mild Steel |
