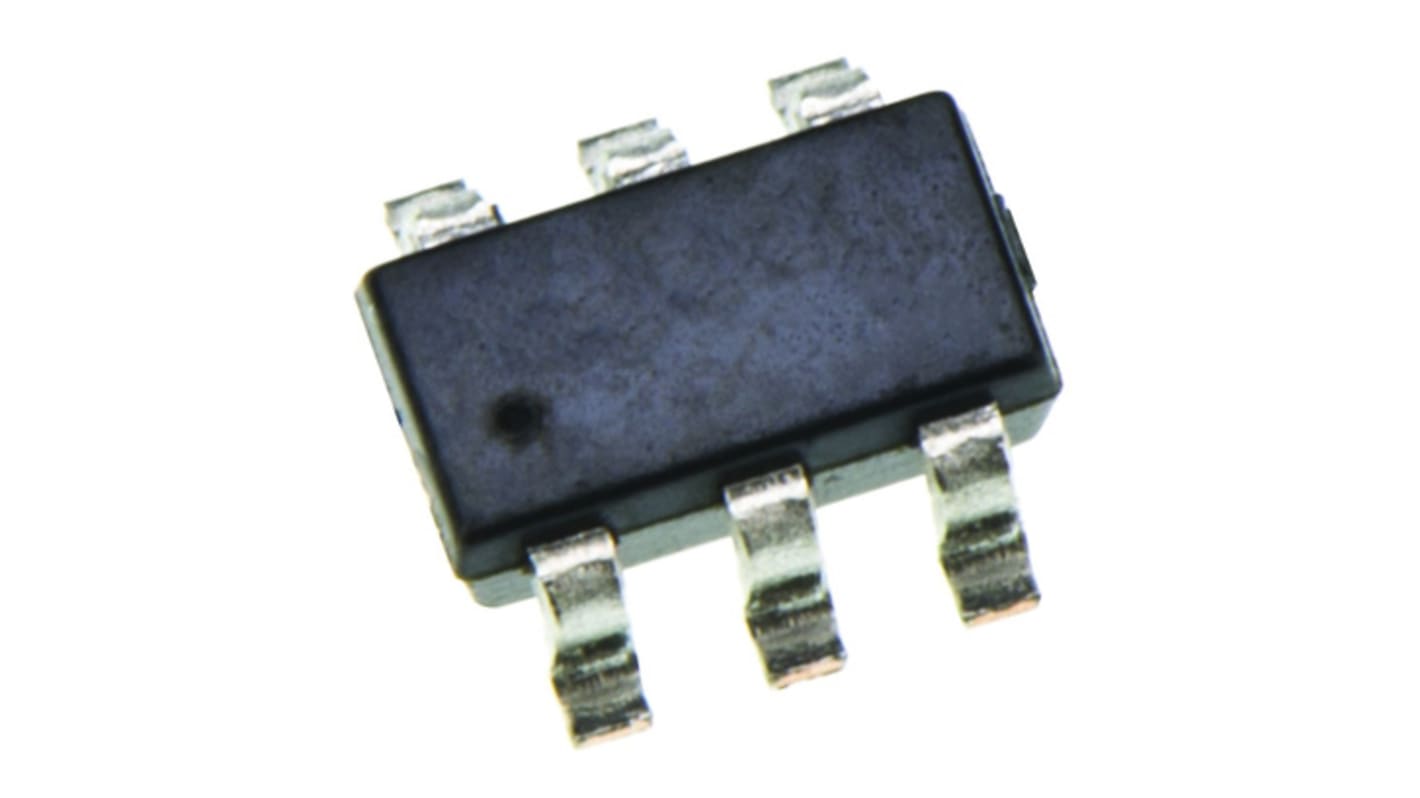

DiodesZetex 74LVC1G11W6-7 3-Input AND Logic Gate, 5-Pin SOT-26
- RS庫存編號:
- 146-0942
- 製造零件編號:
- 74LVC1G11W6-7
- 製造商:
- DiodesZetex
可享批量折扣
Price 个（每带 3000 ）**
HK$0.437
當前暫無庫存，可於2025/8/30發貨，3 工作日送達。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
單位 | 每單位 | 每卷** |
|---|---|---|
| 3000 - 3000 | HK$0.437 | HK$1,311.00 |
| 6000 - 9000 | HK$0.424 | HK$1,272.00 |
| 12000 + | HK$0.415 | HK$1,245.00 |
** 參考價格
- RS庫存編號:
- 146-0942
- 製造零件編號:
- 74LVC1G11W6-7
- 製造商:
- DiodesZetex
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | DiodesZetex | |
| Logic Function | AND | |
| Mounting Type | Surface Mount | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 3 | |
| Schmitt Trigger Input | No | |
| Package Type | SOT-26 | |
| Pin Count | 5 | |
| Logic Family | LVC | |
| Input Type | CMOS | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum High Level Output Current | -32mA | |
| Maximum Propagation Delay Time @ Maximum CL | 3.7 ns @ 15 pF | |
| Minimum Operating Supply Voltage | 1.65 V | |
| Maximum Low Level Output Current | 32mA | |
| Maximum Operating Temperature | +125 °C | |
| Length | 3.1mm | |
| Propagation Delay Test Condition | 15pF | |
| Output Type | Push-Pull | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 3.1 x 1.7 x 1.3mm | |
| Width | 1.7mm | |
| Height | 1.3mm | |
選取全部 | ||
|---|---|---|
品牌 DiodesZetex | ||
Logic Function AND | ||
Mounting Type Surface Mount | ||
Number of Elements 1 | ||
Number of Inputs per Gate 3 | ||
Schmitt Trigger Input No | ||
Package Type SOT-26 | ||
Pin Count 5 | ||
Logic Family LVC | ||
Input Type CMOS | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum High Level Output Current -32mA | ||
Maximum Propagation Delay Time @ Maximum CL 3.7 ns @ 15 pF | ||
Minimum Operating Supply Voltage 1.65 V | ||
Maximum Low Level Output Current 32mA | ||
Maximum Operating Temperature +125 °C | ||
Length 3.1mm | ||
Propagation Delay Test Condition 15pF | ||
Output Type Push-Pull | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 3.1 x 1.7 x 1.3mm | ||
Width 1.7mm | ||
Height 1.3mm | ||
