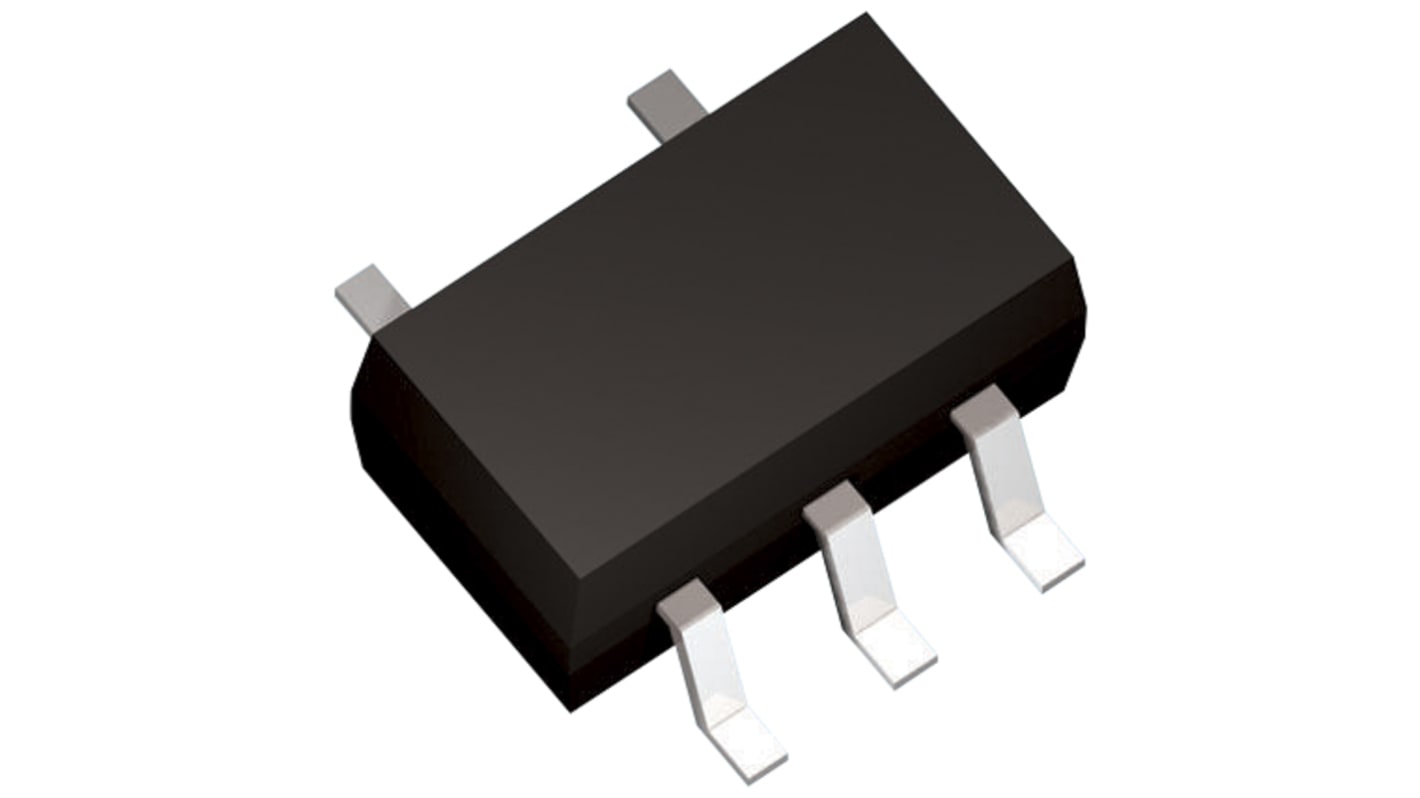

Toshiba TC7SH09FU 2-Input AND Logic Gate, 5-Pin SOT-353

Name: Toshiba TC7SH09FU 2-Input AND Logic Gate, 5-Pin SOT-353
Brand: Toshiba
SKU: 171-3061
Price: 0.81 HKD
Availability: InStock

可享批量折扣

Price 个（每托盘 100 ）**

HK$0.811

100 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

即時庫存查詢

** 參考價格

Attribute	Value
Logic Function	AND
Mounting Type	Surface Mount
Number of Elements	1
Number of Inputs per Gate	2
Package Type	SOT-353
Pin Count	5
Input Type	CMOS
Maximum Operating Supply Voltage	5.5 V
Maximum Propagation Delay Time @ Maximum CL	14 ns @ 50 pF
Minimum Operating Supply Voltage	2 V
Maximum Low Level Output Current	8mA
Maximum Operating Temperature	+125 °C
Output Type	CMOS
Propagation Delay Test Condition	50pF
Automotive Standard	AEC-Q100
Height	0.9mm
Width	1.25mm
Dimensions	2 x 1.25 x 0.9mm
Minimum Operating Temperature	-40 °C
Length	2mm
