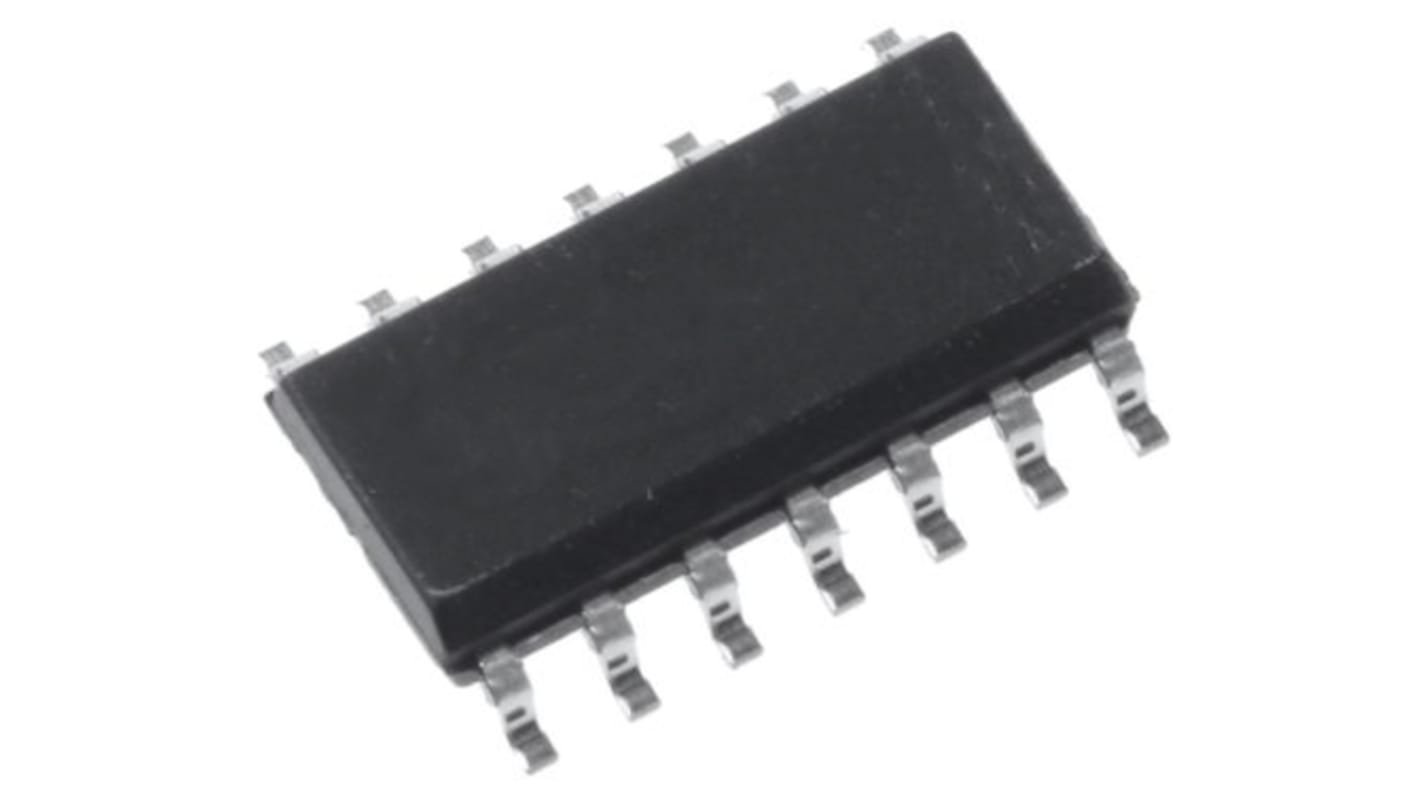

onsemi MC74HC08ADR2G, Quad 2-Input AND Logic Gate, 14-Pin SOIC
- RS庫存編號:
- 186-7288
- 製造零件編號:
- MC74HC08ADR2G
- 製造商:
- onsemi
可享批量折扣
小計（1 卷，共 2500 件）*
HK$2,522.50
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年4月02日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 2500 - 2500 | HK$1.009 | HK$2,522.50 |
| 5000 - 7500 | HK$0.989 | HK$2,472.50 |
| 10000 + | HK$0.969 | HK$2,422.50 |
* 參考價格
- RS庫存編號:
- 186-7288
- 製造零件編號:
- MC74HC08ADR2G
- 製造商:
- onsemi
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | onsemi | |
| Logic Function | AND | |
| Mounting Type | Surface Mount | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Package Type | SOIC | |
| Pin Count | 14 | |
| Logic Family | HC | |
| Maximum Operating Supply Voltage | 6 V | |
| Maximum High Level Output Current | 5.2mA | |
| Maximum Propagation Delay Time @ Maximum CL | 110 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 2 V | |
| Maximum Low Level Output Current | 5.2mA | |
| Length | 8.75mm | |
| Minimum Operating Temperature | -55 °C | |
| Height | 1.5mm | |
| Automotive Standard | AEC-Q100 | |
| Maximum Operating Temperature | +125 °C | |
| Width | 4mm | |
| Propagation Delay Test Condition | 50pF | |
| Dimensions | 8.75 x 4 x 1.5mm | |
| 選取全部 | ||
|---|---|---|
品牌 onsemi | ||
Logic Function AND | ||
Mounting Type Surface Mount | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Package Type SOIC | ||
Pin Count 14 | ||
Logic Family HC | ||
Maximum Operating Supply Voltage 6 V | ||
Maximum High Level Output Current 5.2mA | ||
Maximum Propagation Delay Time @ Maximum CL 110 ns @ 50 pF | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Low Level Output Current 5.2mA | ||
Length 8.75mm | ||
Minimum Operating Temperature -55 °C | ||
Height 1.5mm | ||
Automotive Standard AEC-Q100 | ||
Maximum Operating Temperature +125 °C | ||
Width 4mm | ||
Propagation Delay Test Condition 50pF | ||
Dimensions 8.75 x 4 x 1.5mm | ||
High-Performance Silicon-Gate CMOS The MC74HC08A is identical in pinout to the LS08. The device inputs are compatible with Standard CMOS outputs, with pullup resistors, they are compatible with LSTTL outputs.
Output Drive Capability: 10 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS and TTL
Operating Voltage Range: 2 to 6V
Low Input Current: 1mA
High Noise Immunity Characteristic of CMOS Devices
Chip Complexity: 24 FETs or 6 Equivalent Gates
Outputs Directly Interface to CMOS, NMOS and TTL
Operating Voltage Range: 2 to 6V
Low Input Current: 1mA
High Noise Immunity Characteristic of CMOS Devices
Chip Complexity: 24 FETs or 6 Equivalent Gates
